Page 52 - professional-catering

/ BINOPTIC electronic controls deck-mounted

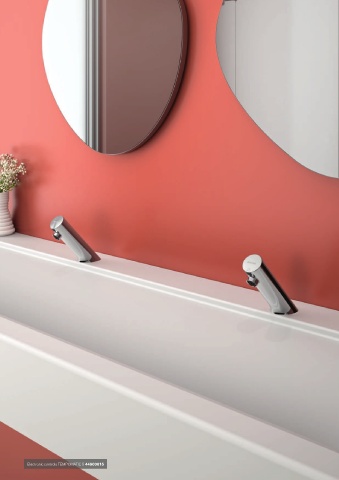

BINOPTIC
Electronic mixer and tap, battery or mains operated

• Independent IP65 electronic control unit.
• 230/12V mains supply with transformer or battery-operated with CR123 6V Lithium batteries.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Scale-resistant flow straightener.
• Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
• Infrared active pulse sensor at the end of the spout optimises detection.
• Chrome-plated brass body. Long lever
• Spout with smooth interior and low water volume (reduces bacterial development).
• PEX flexibles with filters and solenoid valves Ø 15mm for compression fittings�
• Fixing reinforced by 2 stainless steel rods�
• Anti-blocking security�
• Side temperature control with adjustable maximum temperature limiter
and long lever on the mixers�
• 30-year warranty�
Two drop heights available depending on the choice of basin:
H� 170mm for semi-recessed washbasins�
H� 250mm for countertop washbasins�

BINOPTIC MIX mixer
Mains supply 170 250 160
H. 170mm 388MCHLH15 82
H. 250mm 398MCHLH15 175
185
Battery-operated 110x75x40 110x75x40
H. 170mm 488MCHLH15 45 max 45 max
H. 250mm 498MCHLH15
BINOPTIC tap 420 420
Mains supply
H. 170mm 38801515
H. 250mm 39801515
Ø15 Ø15
Battery-operated
H. 170mm 48801515
H. 250mm 49801515
We recommend installing a TMV for taps (see page 78)
38801515 49801515

50 Non-contact controls
