TEMPOMATIC 4 electronic controls deck-mounted /

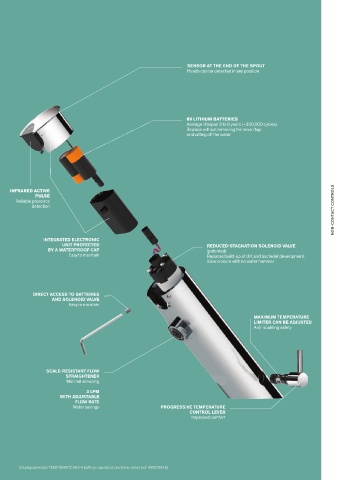

        TEMPOMATIC 4
        Deck-mounted electronic mixer and tap, mains supply or battery-operated



























                                                                                                                      NON-CONTACT CONTROLS









        • 230/6V mains supply or integrated CR123 6V Lithium batteries.
        • Reduced-stagnation solenoid valve and electronic unit integrated
         into the body of the mixer/tap.
        • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
        • Scale-resistant flow straightener.
        • Duty flush (~60 seconds every 24 hours after last use).
        • Infrared active pulse sensor at the end of the spout optimises detection.                 Standard lever
        • Body in chrome-plated metal. Cap fixed in place by 2 concealed screws�
        • PEX flexibles Ø 15mm for compression fittings with stopcocks,
         filters and non-return valves�
        • Fixing reinforced by 2 stainless steel rods�
        • Anti-blocking security�
        • Side temperature control with adjustable maximum temperature limiter on mixers�
        • 30-year warranty�













                                                                            75                    75
                                                                              110                   110
                                                                                      45 max              45 max
                                                                         50x50x25
        TEMPOMATIC MIX 4 mixer
        Recessed mains supply                     49000015                             430                  430
        Plug-in mains supply                      49000115
        Battery-operated                          49000615
        TEMPOMATIC 4 tap
                                                                              1/2"
        Recessed mains supply                     44000015                        Ø15                   1/2"
        Battery-operated                          44000615                      30°                    Ø15
                                                                                                     30°
        We recommend installing a TMV for taps (see page 78)
        For long lever, please add LH after the reference
                                                                              44000015              49000615
                                                                                          Non-contact controls  49
