/ TEMPOMATIC 4 electronic controls wall-mounted

TEMPOMATIC 4
Wall-mounted electronic mixer and tap, battery or mains-operated

• 230/6V mains supply or integrated CR123 6V Lithium batteries.
• Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer/tap.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Scale-resistant flow straightener.
• Duty flush (~60 seconds every 24 hours after last use).
• Infrared active pulse sensor at the end of the spout optimises detection.
• Chrome-plated metal body. Standard lever
• Cap fixed in place by 2 concealed screws�
• Stopcocks�
• Anti-blocking security�
• Side temperature control with adjustable maximum temperature limiter on the mixers�
• Recommended installation height: 300mm above the top of the basin�
• 30-year warranty�

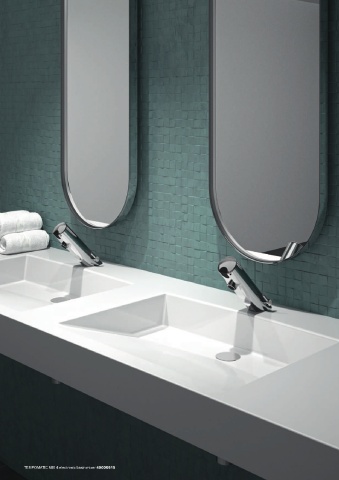

TEMPOMATIC MIX 4 wall-mounted mixer
Recessed mains supply 493510
L� 190mm for cross wall installation
Integrated battery supply 493516
L�190mm for cross wall installation
190 110
TEMPOMATIC 4 wall-mounted tap
Recessed mains supply
Wall-mounted L� 130mm (recessed water inlet) 443400
Wall-mounted L� 190mm (recessed water inlet) 443500 3/8"
493516
Cross wall L� 130mm 443410
Cross wall L� 190mm 443510
Battery-operated
165
3/8" 1/2"
Wall-mounted L� 130mm (recessed water inlet) 443406
Wall-mounted L� 190mm (recessed water inlet) 443506
Cross wall L� 130mm 443416 1/2" 190 30 max
130
Cross wall L� 190mm 443516 50x50x25
L� 130mm for panels ≤ 24mm or solid walls 443426
L� 190mm for panels ≤ 24mm or solid walls 443526
L� 130mm for refurbishment 443436
L� 190mm for refurbishment 443536
We recommend installing a TMV for taps (see page 78)
443410 443506

52 Non-contact controls
