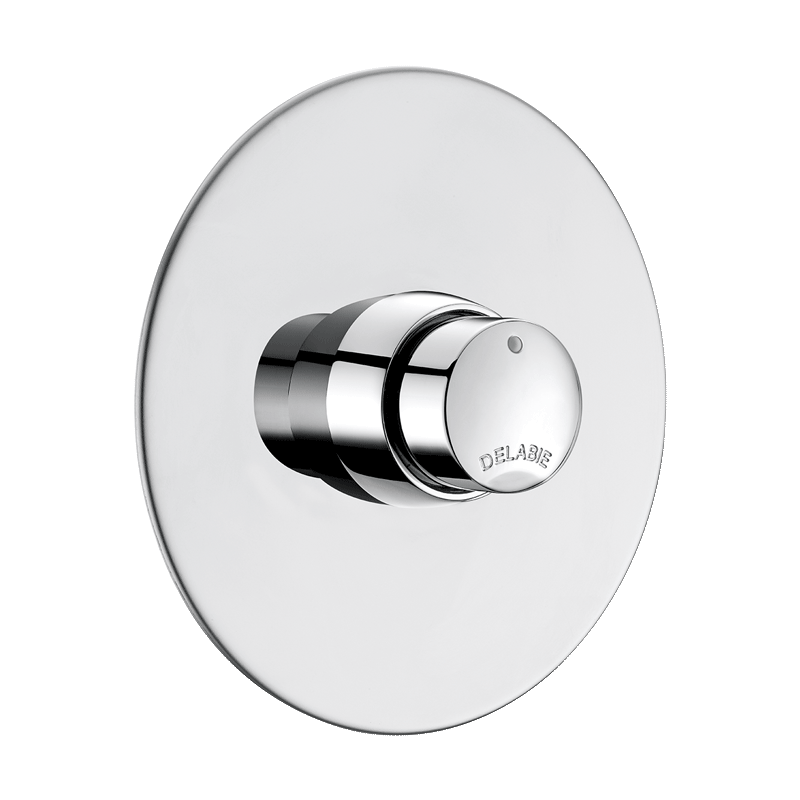

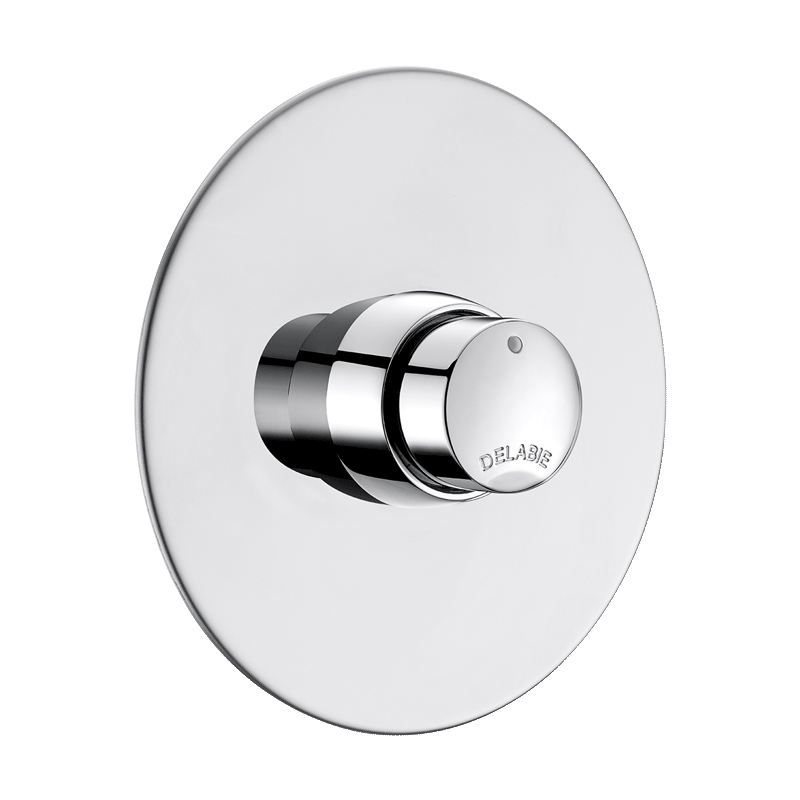

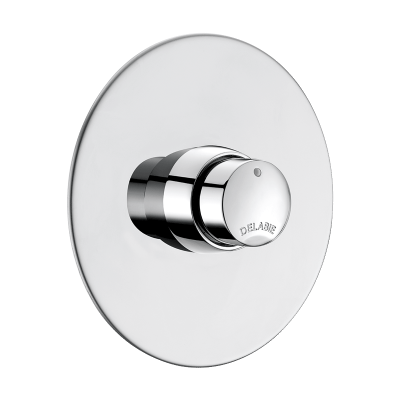

TEMPOSOFT 2 time flow urinal valve - lead-free

Ref. 777130LF
3 second time flow
See variants See variants
TEMPOSOFT 2 time flow urinal valve - lead-free

Presentation

DESCRIPTION

TEMPOSOFT 2 time flow urinal valve - lead-free

Ref. 777130LF
Recessed time flow urinal valve:
For standard or siphon action urinals.
Cross-wall installation.
Ø 130mm stainless-steel fixing plate.
Adjustable locking between 1 and 5 mm.
Soft-touch operation.
~3 second time flow.
Flow rate pre-set at 0.15 l/sec at 3 bar, can be adjusted.
Chome-plated brass, lead-free M1/2".
Suitable for people with reduced mobility.
30-year warranty.

This sanitary ware model is not supplied with recessed waterproof housing, the installer must ensure the impermeability of recessed housing as well as draining any potential leaks and condensation (see installation guide).

ADVANTAGES

Anti-vandalisme

Cross-wall installation

Economie d'eau

3-second ECO time flow

Sans plomb

Lead-free brass

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Characteristics

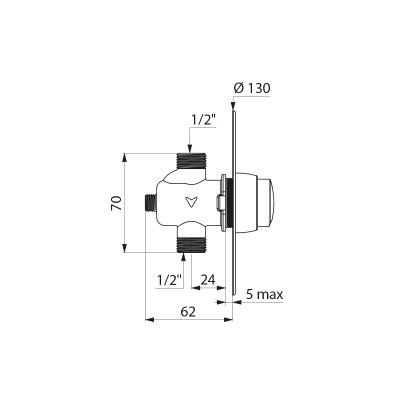

TECHNICAL CHARACTERISTICS

TEMPOSOFT 2 time flow urinal valve - lead-free

Ref. 777130LF
Connector 1/2"
Technology Time flow
Height 70 mm
Flow rate 0,15 l/sec
Warranty 30-Year
TEMPOSOFT 2 time flow urinal valve - lead-free
Ref. 777130LF

Downloads

DOWNLOADS

TEMPOSOFT 2 time flow urinal valve - lead-free

Ref. 777130LF

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

777130 Ø 100mm st. steel wall plate, spacing can be adjusted 1 to 5mm, M½" £127.21 excl. VAT
