Floor trap

Ref. 684000

With plate

£83.52 ^{excl. VAT}

2026 UK public price excluding VAT

3 variants

682001UK - Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

£69.71 ^{excl. VAT}

683001UK - Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm

£94.54 ^{excl. VAT}

683002UK - Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm

£69.71 ^{excl. VAT}

CONTACT US

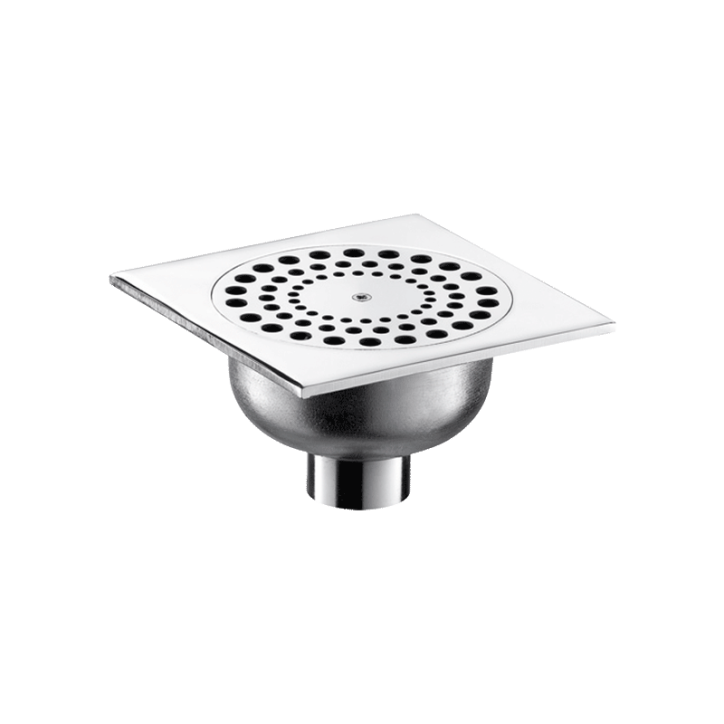

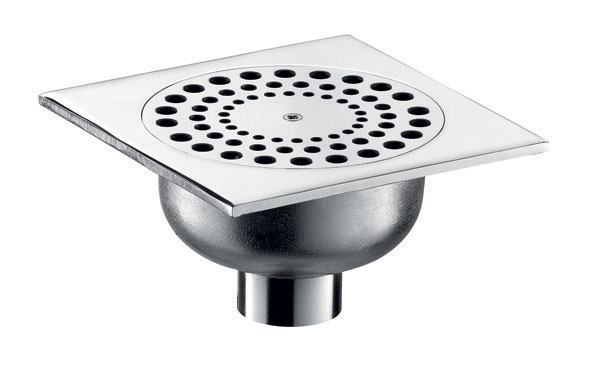

Floor trap

Ref. 684000

Floor trap for hard floors:
Flow rate 18 lpm.
Water level 18mm.
Stainless steel body 140 x 140mm.
Bright polished stainless steel grid fixed by 1 stainless steel screw.
PVC bell.
Vertical outlet Ø 40mm (provide elbow for horizontal outlets).
For hard floors (tiled or concrete).
30-year warranty.

Advantages

30-year warranty

Floor trap

Ref. 684000

Height 75mm

Length 140mm

Width 140mm

Flow rate 18 lpm

Warranty
