Adjustable height floor trap

Ref. 683001UK

For tiles or concrete floors

£94.54 ^{excl. VAT}

2026 UK public price excluding VAT

3 variants

682001UK - Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

£69.71 ^{excl. VAT}

683002UK - Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm

£69.71 ^{excl. VAT}

684000 - Ø 40mm outlet- tiled or concrete floors- 140 x 140mm

£83.52 ^{excl. VAT}

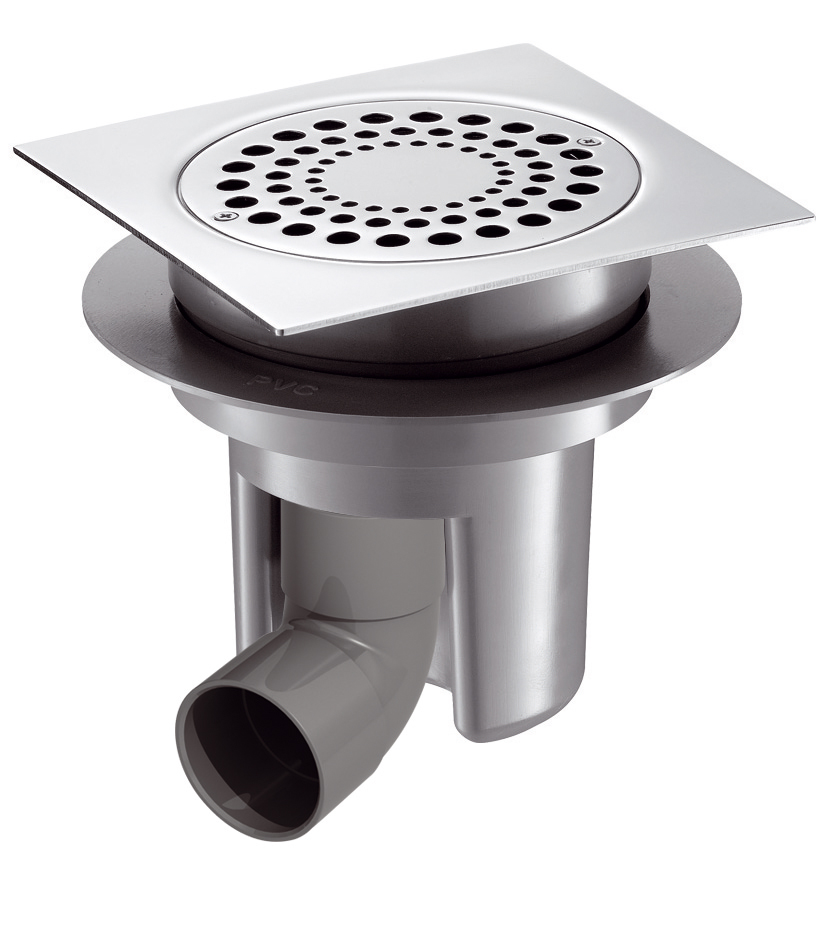

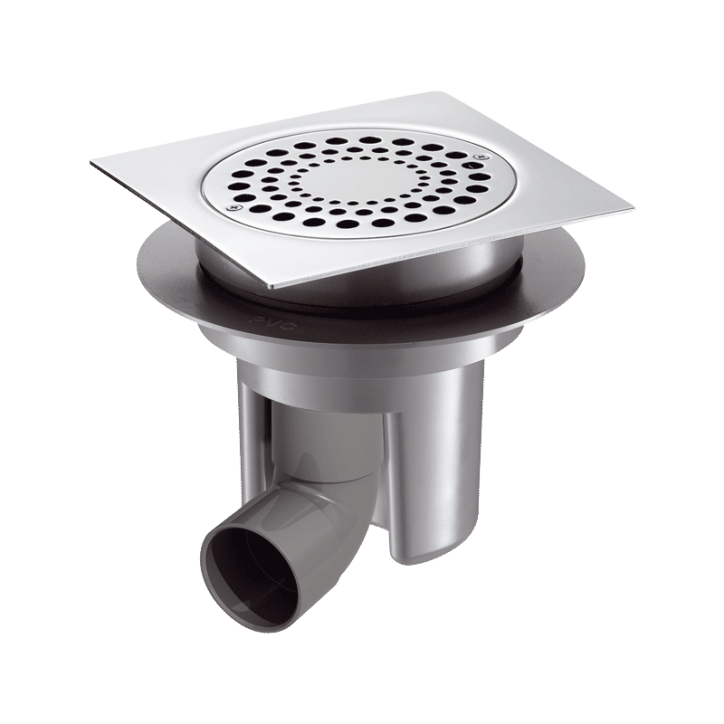

Adjustable height floor trap

Ref. 683001UK

Floor trap for hard floors (tiles or concrete) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
Bright polished stainless steel plate and grid 150x150mm.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy cleaning.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grill fixed with two stainless steel screws.
30-year warranty.

Advantages

Trap adapted to floor type, adjustable height

Plunger with handle, body free of impurities

Tamperproof stainless steel grid

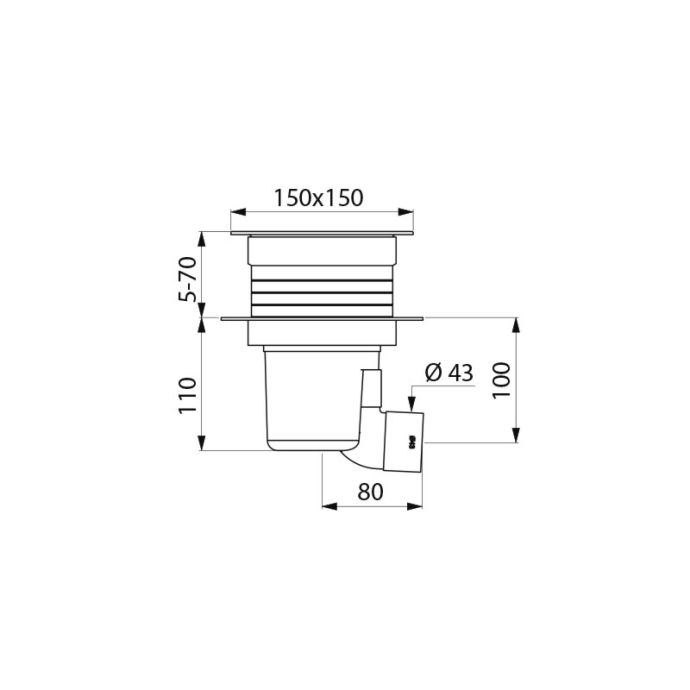

Adjustable height floor trap

Ref. 683001UK

Height 180mm max

Length 150mm

Width 150mm

Flow rate 36 lpm

Warranty

Associated products

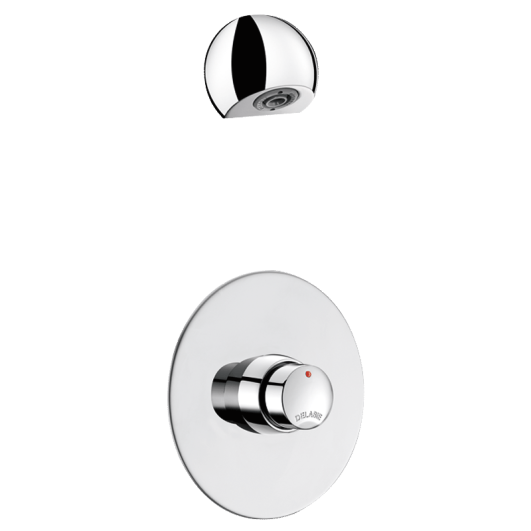

TEMPOSOFT 2 time flow shower kit
