Floor trap

Ref. 683002UK

For soft or vinyl floors

£69.71 ^{excl. VAT}

2026 UK public price excluding VAT

3 variants

682001UK - Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm

£69.71 ^{excl. VAT}

683001UK - Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm

£94.54 ^{excl. VAT}

684000 - Ø 40mm outlet- tiled or concrete floors- 140 x 140mm

£83.52 ^{excl. VAT}

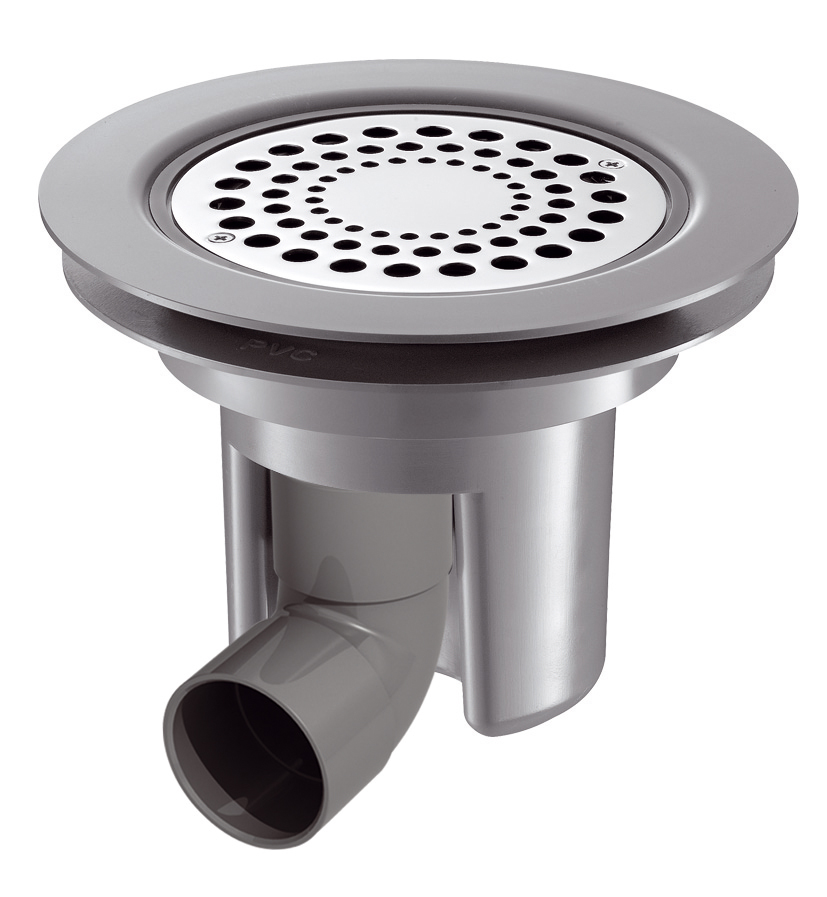

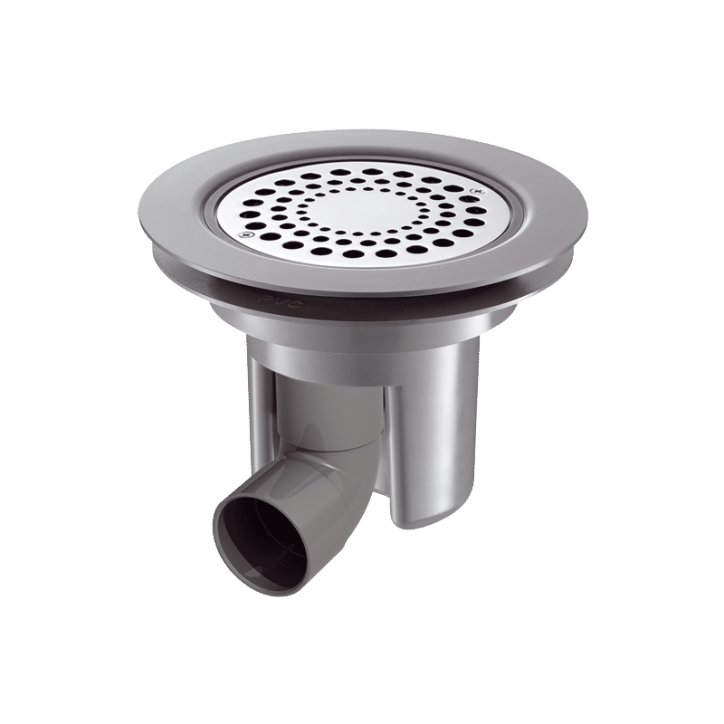

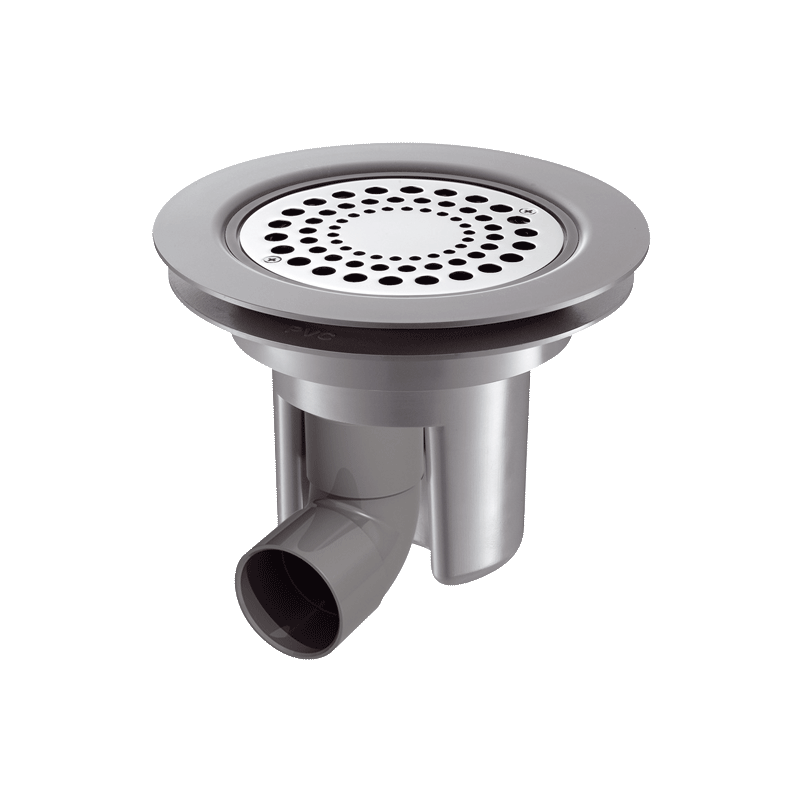

Floor trap

Ref. 683002UK

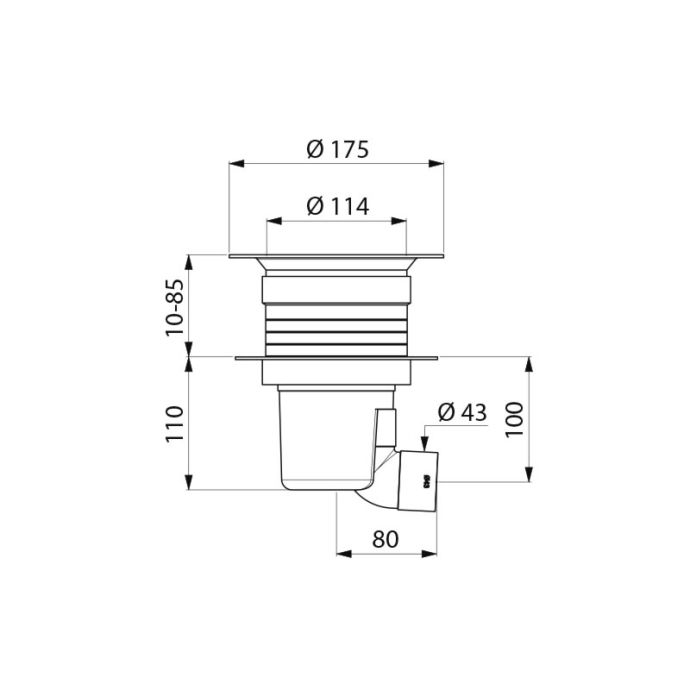

Adjustable height floor trap for soft or vinyl floors:
Flow rate 36 lpm (meets standards).
Water level 50mm.
Bright polished stainless steel grid Ø 114mm.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
Height adjusts up to 85mm with extension.
Grid fixed by two stainless steel screws.
30-year warranty.

Advantages

Trap adapted to floor type, adjustable height

Plunger with handle, body free of impurities

Tamperproof stainless steel grid

Associated products

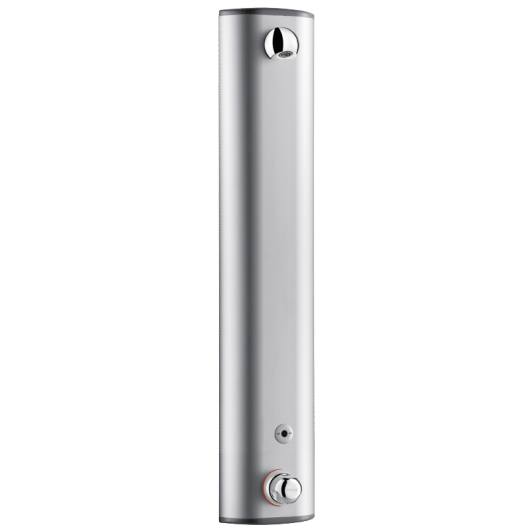

SECURITHERM shower panel
