DESCRIPTION

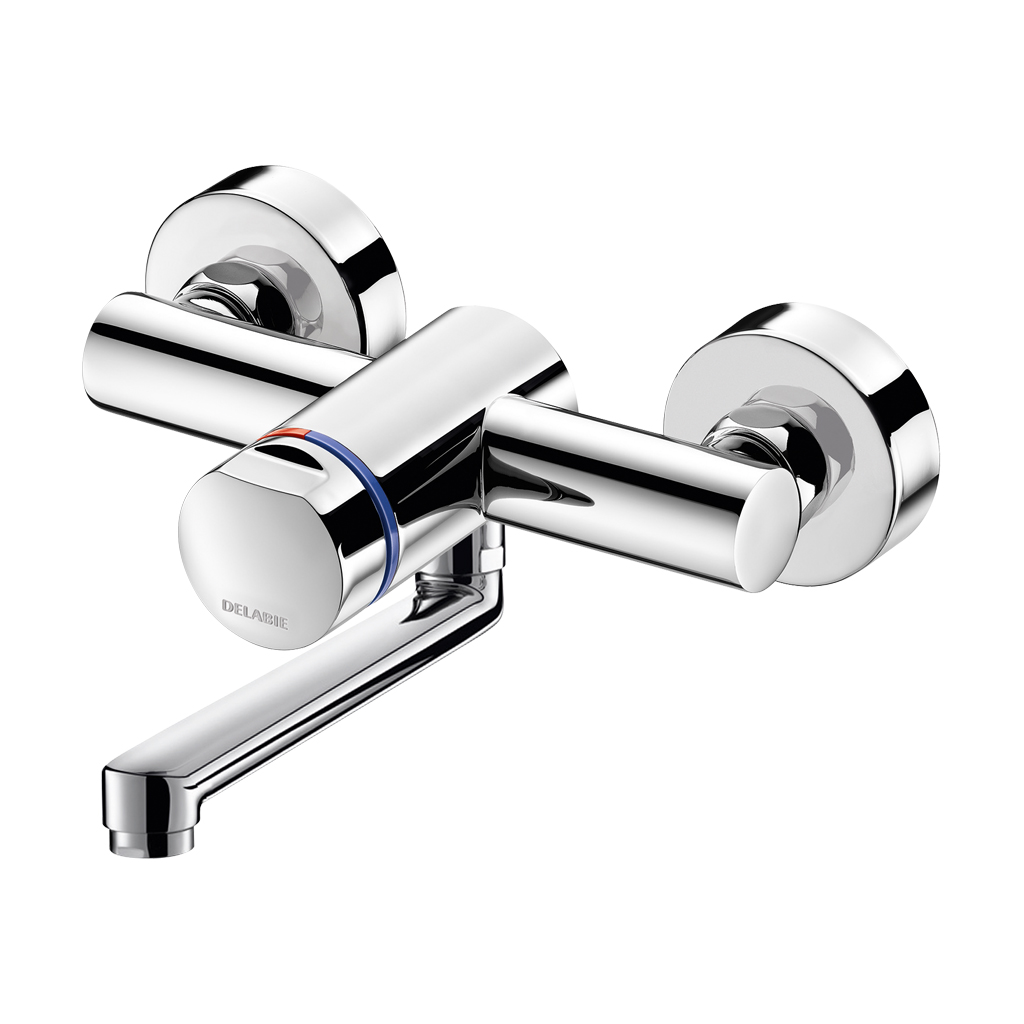

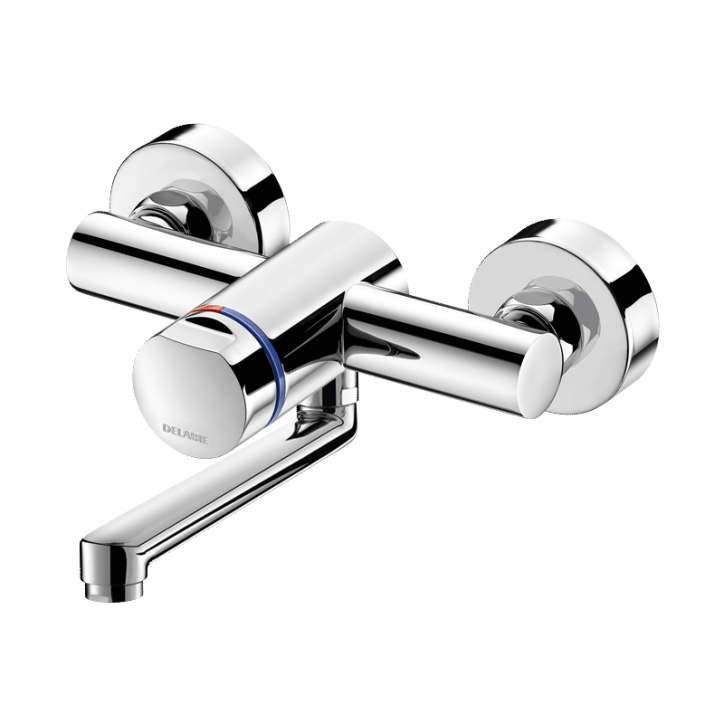

TEMPOMIX 3 time flow mixer
Ref. 794350Wall-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated metal body M½".
Swivelling spout L. 150mm.
Filters and non-return valves.
Adjustable maximum temperature limiter.
M½" offset connectors for centres from 130 - 170mm.
Suitable for people with reduced mobility.
30-year warranty.
            Soft-touch operation.
Temperature control and operation via the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated metal body M½".
Swivelling spout L. 150mm.
Filters and non-return valves.
Adjustable maximum temperature limiter.
M½" offset connectors for centres from 130 - 170mm.
Suitable for people with reduced mobility.
30-year warranty.
2025 UK public price excluding VAT: £369.82
ADVANTAGES

Exceptional water savings: 85%

Soft-touch operation

Sleek and slim design

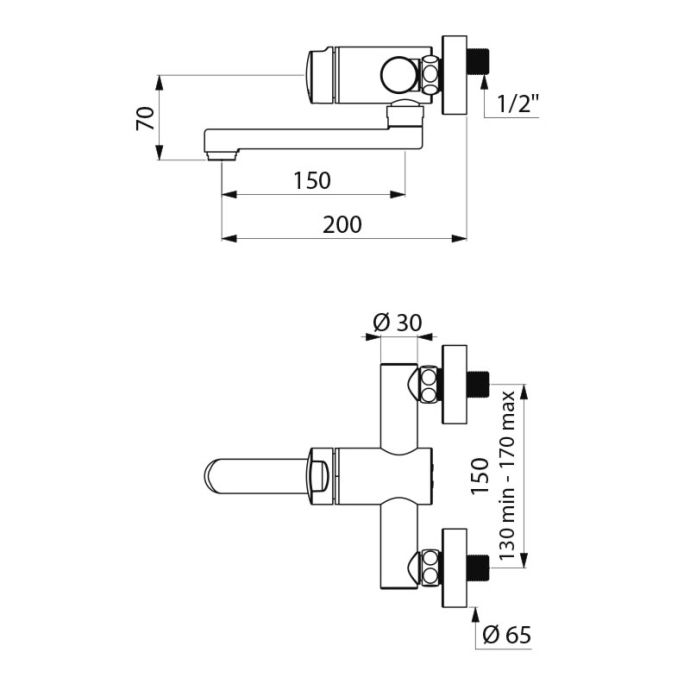

TECHNICAL CHARACTERISTICS
TEMPOMIX 3 time flow mixer
Ref. 794350| Connector | M1/2" |
| Technology | Time flow |
| Length | 200mm |
| Width | 150mm |
| Spout length | 150mm |
| Flow rate | 3 lpm |
| Certificates |             |
| Warranty |   |
| Repairability |  |
Spare parts

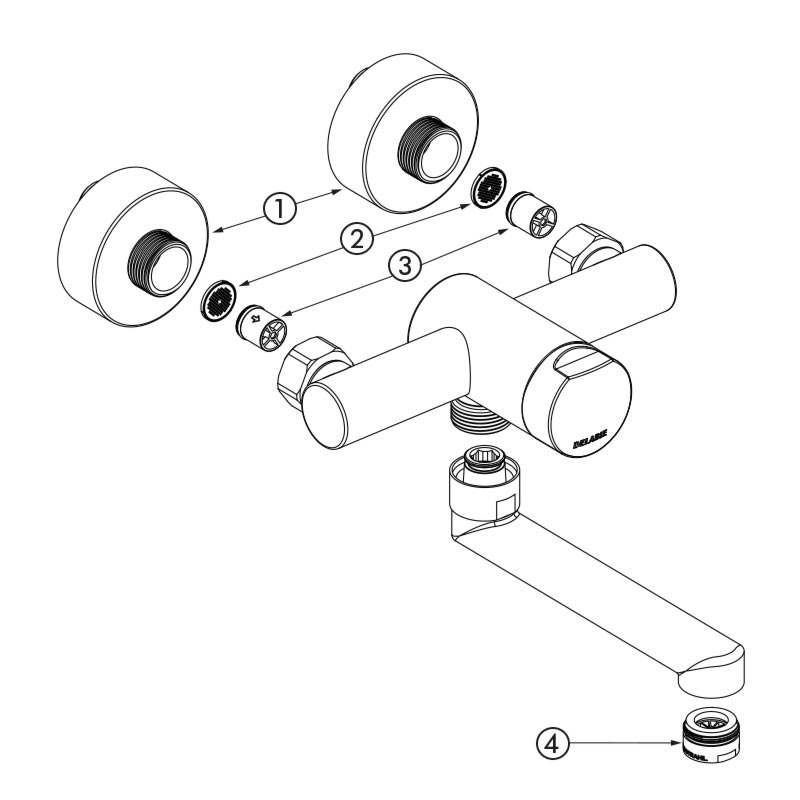

SPARE PARTS
TEMPOMIX 3 time flow mixer
Ref. 794350


                                    | 1. | 856794.2P |  | Offset union |
| 2. | 60220.10P |  | Filtre plat |
| 3. | 900015 |  | Non-return valve |
| 4. | 921024.2P |  | Star-shaped flow straightener |
VARIANTS
| 794360 | With fixed spout L. 150mm | £369.82 excl. VAT |
|---|
VARIANTS
| 794360 | With fixed spout L. 150mm | £369.82 excl. VAT |
|---|
