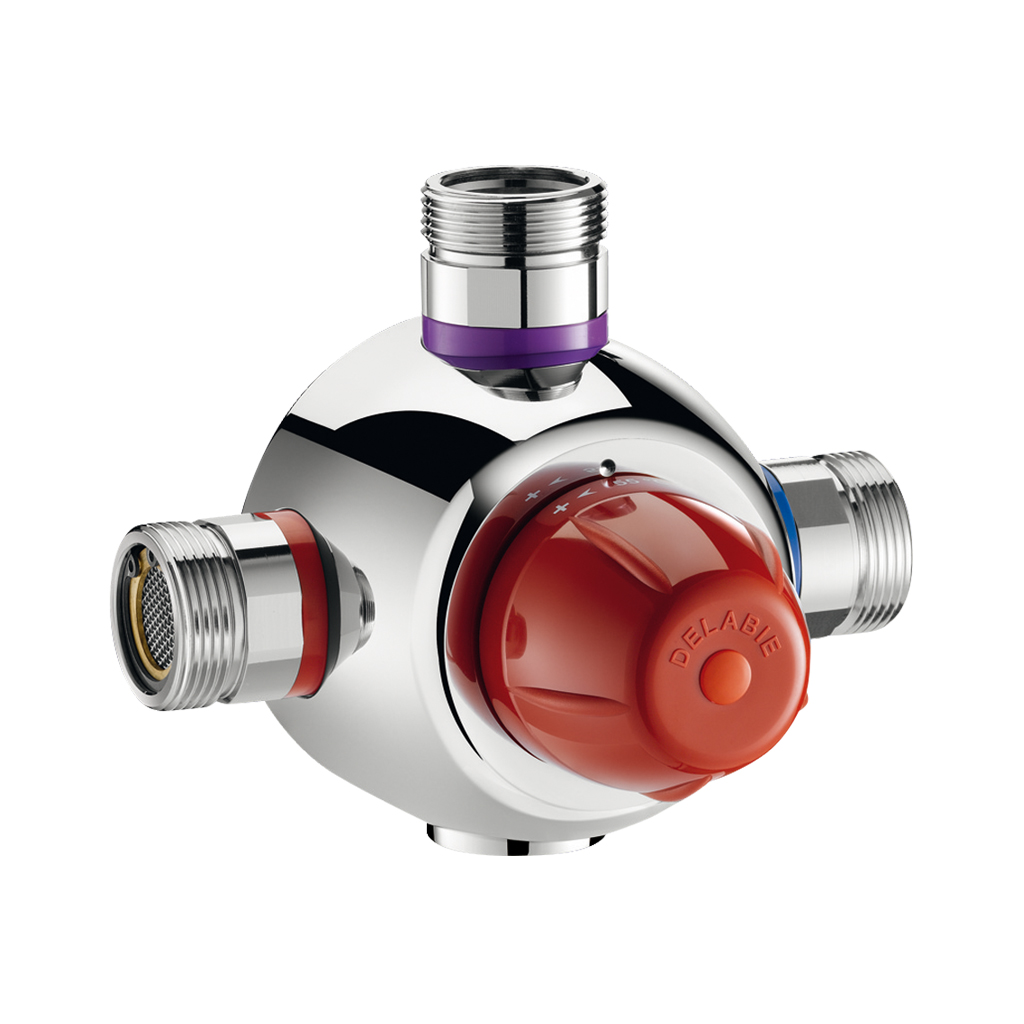

PREMIX SECURITY Group thermostatic mixing valve

Ref. 731054
For circulating loops 44°-58°C
PREMIX SECURITY Group thermostatic mixing valve

Presentation

DESCRIPTION

PREMIX SECURITY Group thermostatic mixing valve

Ref. 731054
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal shocks are possible.
Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C minimum.
Pressure differences at the inlets: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Safety and prolongation of system life span (Hot water > 65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
140 lpm - M1¼".
30-year warranty.

2024 UK public price excluding VAT: £1,360.67

ADVANTAGES

Sécurité anti-brûlure

Automatic shut-off if cold water supply fails

Confort - Ergonomie - Déclenchement souple

Temperature stability

Maintenance aisée - Installation aisée

Accessible filters and non-return valves

Endurance - Fiabilité

Thermo-reactive cell

Characteristics

TECHNICAL CHARACTERISTICS

PREMIX SECURITY Group thermostatic mixing valve

Ref. 731054
Connector M1"1/4
Technology Thermostatic
Height 90mm
Depth 26mm
Length 180mm
Flow rate 140 lpm
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

PREMIX SECURITY Group thermostatic mixing valve

Ref. 731054

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

731052 55 lpm - M3/4" - Dimensions: 120 x 60 x 18mm £611.54 excl. VAT
731053 90 lpm - M1" - Dimensions: 160 x 80 x 23mm £947.89 excl. VAT
731055 190 lpm - M1 1/2" - Dimensions: 195 x 98 x 26mm £1,758.16 excl. VAT

VARIANTS

731052 55 lpm - M3/4" - Dimensions: 120 x 60 x 18mm £611.54 excl. VAT
731053 90 lpm - M1" - Dimensions: 160 x 80 x 23mm £947.89 excl. VAT
731055 190 lpm - M1 1/2" - Dimensions: 195 x 98 x 26mm £1,758.16 excl. VAT
