PREMIX SECURITY Group thermostatic mixing valve

Ref. 731053

For circulating loops 44°-58°C

£1,035.11 ^{excl. VAT}

2026 UK public price excluding VAT

3 variants

731052 - 55 lpm - M3/4" - Dimensions: 120 x 60 x 18mm

£667.80 ^{excl. VAT}

731054 - 140 lpm - M1 1/4" - Dimensions: 180 x 90 x 26mm

£1,485.86 ^{excl. VAT}

731055 - 190 lpm - M1 1/2" - Dimensions: 195 x 98 x 26mm

£1,919.90 ^{excl. VAT}

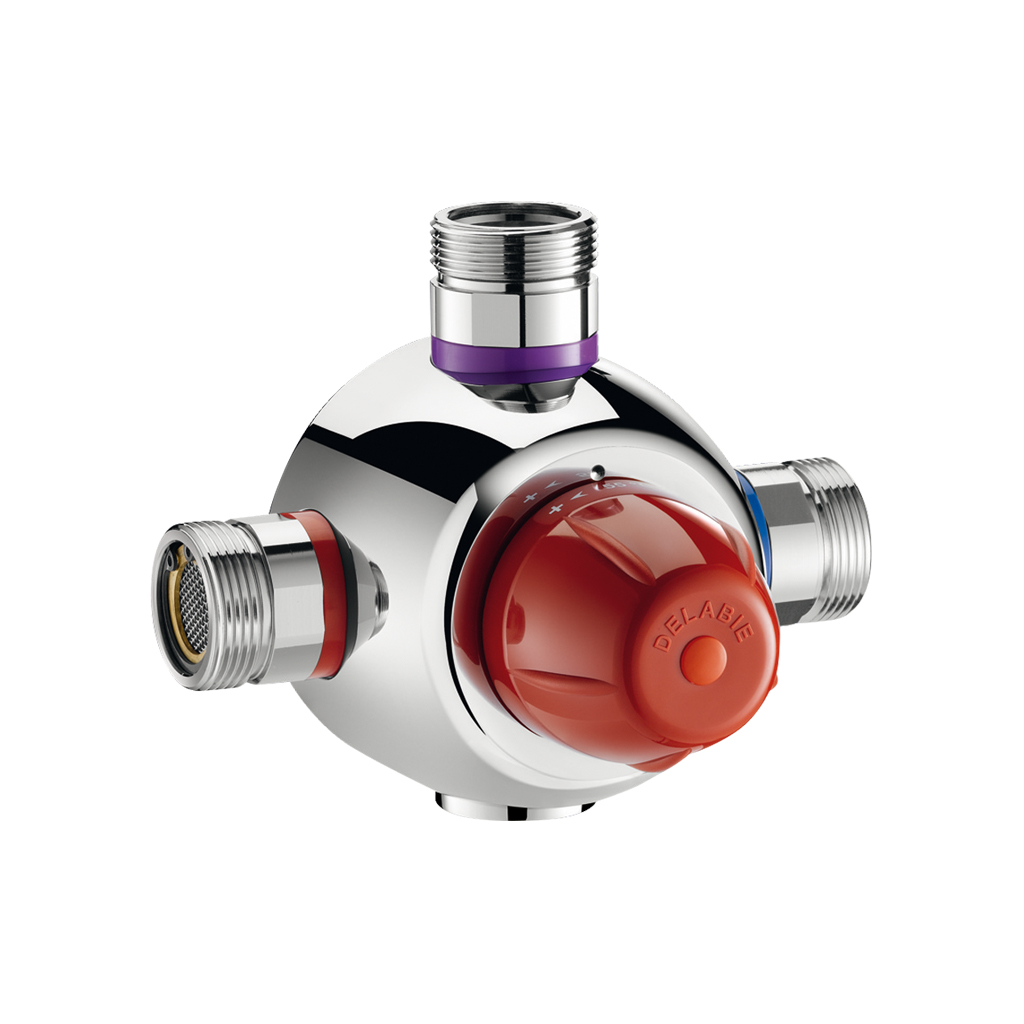

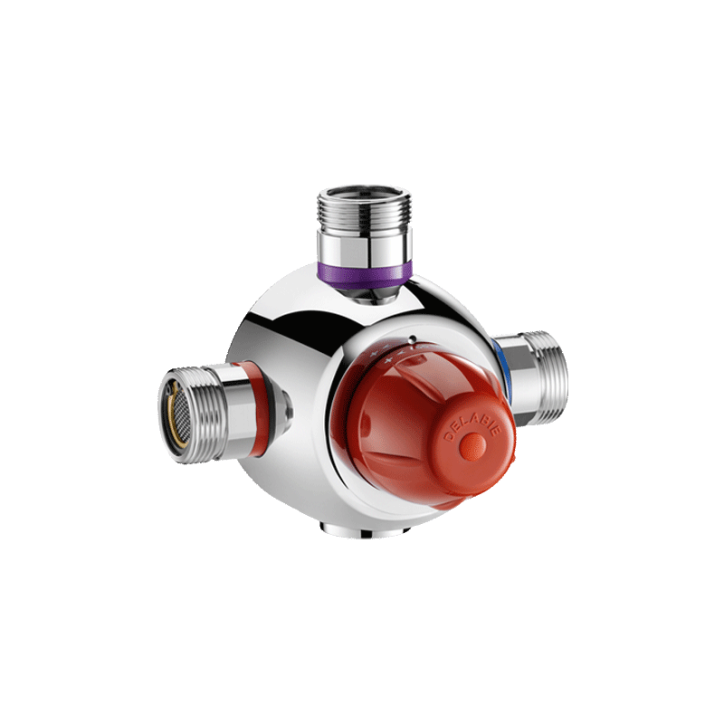

PREMIX SECURITY Group thermostatic mixing valve

Ref. 731053

Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal shocks are possible.
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Safety and prolongation of system life span (Hot water > 65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
30-year warranty.

Advantages

Automatic shut-off if cold water supply fails

Temperature stability

Accessible filters and non-return valves

Thermo-reactive cell

PREMIX SECURITY Group thermostatic mixing valve

Ref. 731053

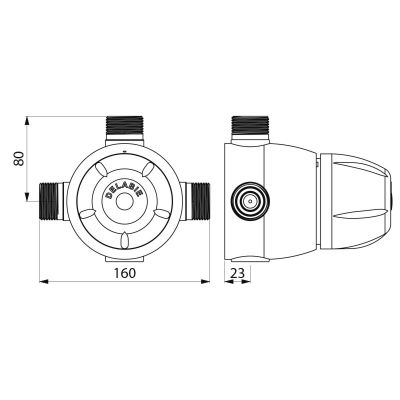

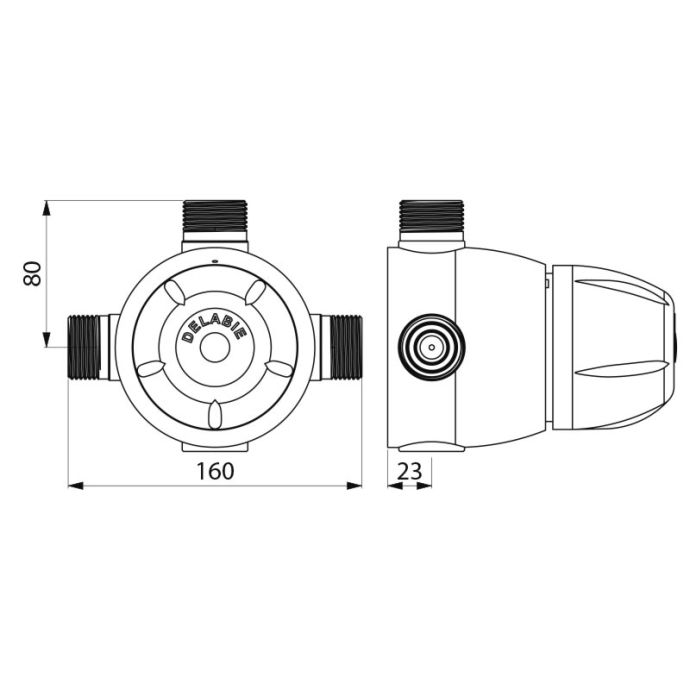

Connector M1"

Technology Thermostatic

Height 80mm

Depth 23mm

Length 160mm

Flow rate 90 lpm

Certificates

Warranty

Associated products

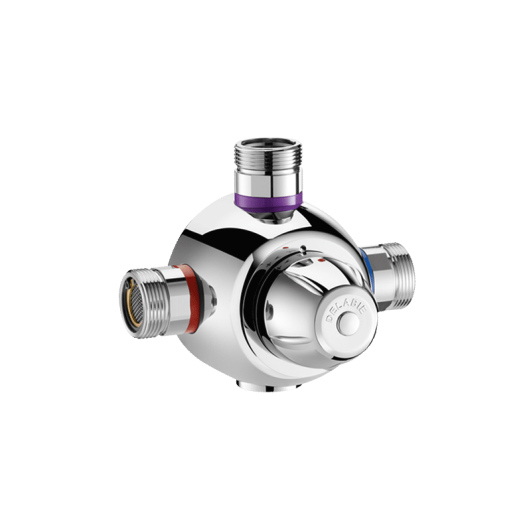

PREMIX COMFORT Group thermostatic mixing valve
