TEMPOMIX 3 time flow shower mixer

Ref. 794400
Time flow single control
See variants See variants
TEMPOMIX 3 time flow shower mixer

Presentation

DESCRIPTION

TEMPOMIX 3 time flow shower mixer

Ref. 794400
Exposed time flow shower mixer:
TEMPOMIX 3 single control mixer, top outlet M¾".
For wall-mounted, exposed installation.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar, can be adjusted from 6 - 12 lpm.
Chrome-plated brass.
Integrated filters and non-return valves.
Chrome-plated metal push-button.
M½" offset connectors for 130 - 170mm centres.
Suitable for people with reduced mobility.
30-year warranty.

2026 UK public price excluding VAT: £319.99

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Endurance - Fiabilité

Time flow system tested to over 500,000 operations

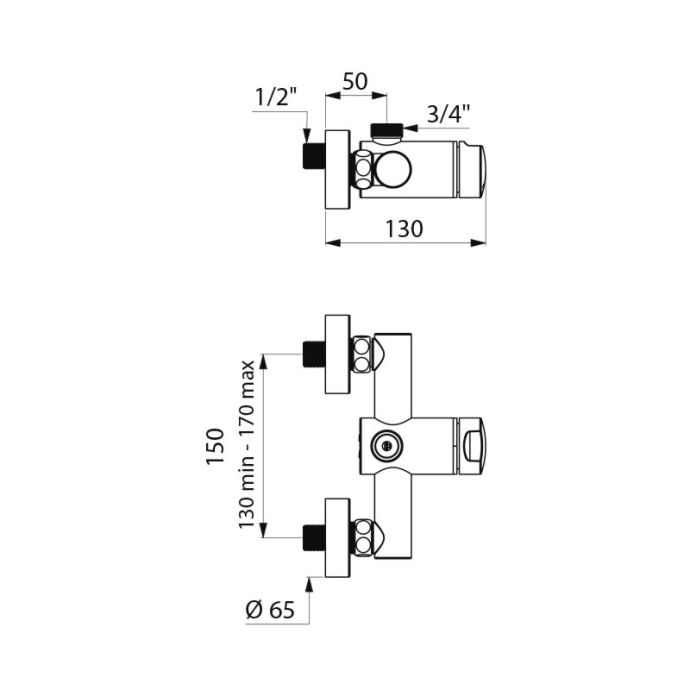

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX 3 time flow shower mixer

Ref. 794400
Connector M½"
Technology Time flow
Width 150mm
Flow rate 9 lpm
Certificates ACS Belgaqua DoP WRAS
Warranty 30-Year
Repairability
TEMPOMIX 3 time flow shower mixer
Ref. 794400

Downloads

DOWNLOADS

TEMPOMIX 3 time flow shower mixer

Ref. 794400

To download one or several documents linked to this product, please select the type of file you require :

Compatible products

COMPATIBLE PRODUCTS

TEMPOMIX 3 time flow shower mixer

Ref. 794400
794400
TEMPOMIX 3 time flow shower mixer
TEMPOMIX 3 time flow shower mixer

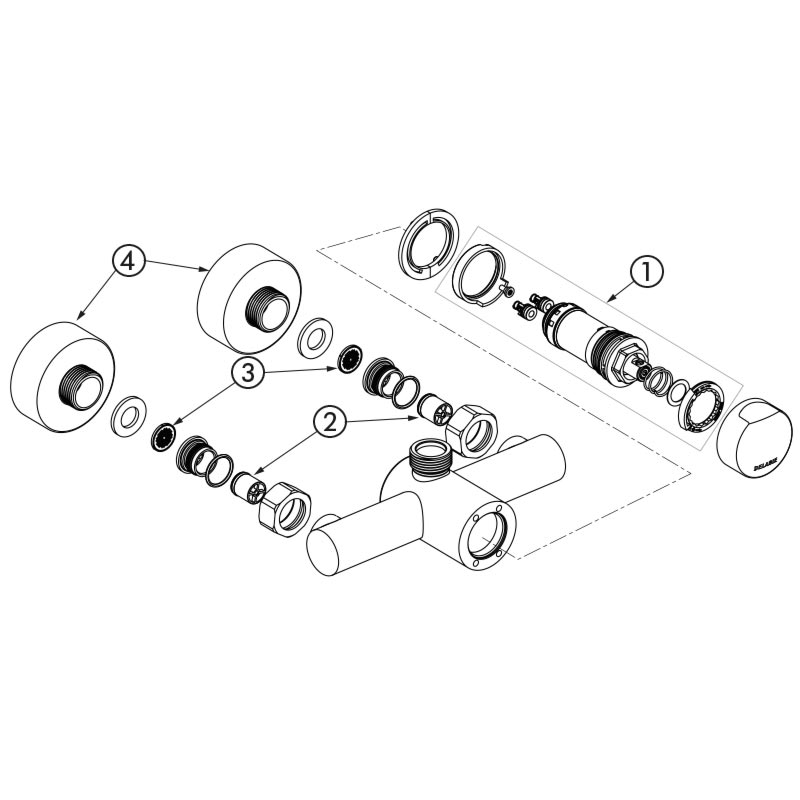

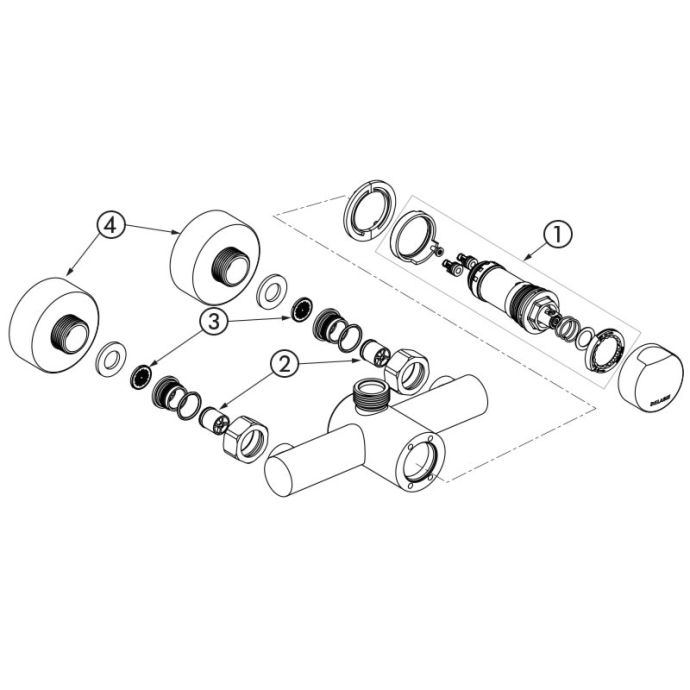

Spare parts

SPARE PARTS

TEMPOMIX 3 time flow shower mixer

Ref. 794400
1. 794400
TEMPOMIX 3 time flow shower mixer
2. 900015
Non-return valve
3. 60220.10P
Filtre plat
4. 856794.2P
Offset union

VARIANTS

794470 Bottom outlet, M½" inlet with M¾ connector £327.60 excl. VAT

Associated products

VARIANTS

794470 Bottom outlet, M½" inlet with M¾ connector £327.60 excl. VAT
