Control plate for TEMPOMATIC 4 for urinals

Ref. 430030

Recessed electronic mains supply valve - For urinals

£552.37 ^{excl. VAT}

2026 UK public price excluding VAT

5 variants

430000 - Satin finish - Mains supply 230/6V connection, F½"

£465.81 ^{excl. VAT}

430006 - Satin finish - Supplied by 6V CR123 Lithium batteries, F½"

£434.73 ^{excl. VAT}

430010 - Chrome-plated stainless steel - Mains supply 230/6V connection, F½"

£465.81 ^{excl. VAT}

430016 - Chrome-plated stainless steel - Supplied by 6V CR123 Lithium batteries, F½"

£434.75 ^{excl. VAT}

430036 - Tempered black glass finish - Supplied by 6V CR123 Lithium batteries, F½"

£522.54 ^{excl. VAT}

Control plate for TEMPOMATIC 4 for urinals

Ref. 430030

TEMPOMATIC 4 electronic valve F½", kit 2/2.
Mains supply 230/6V.
Solenoid valve enables opening and closing of water.

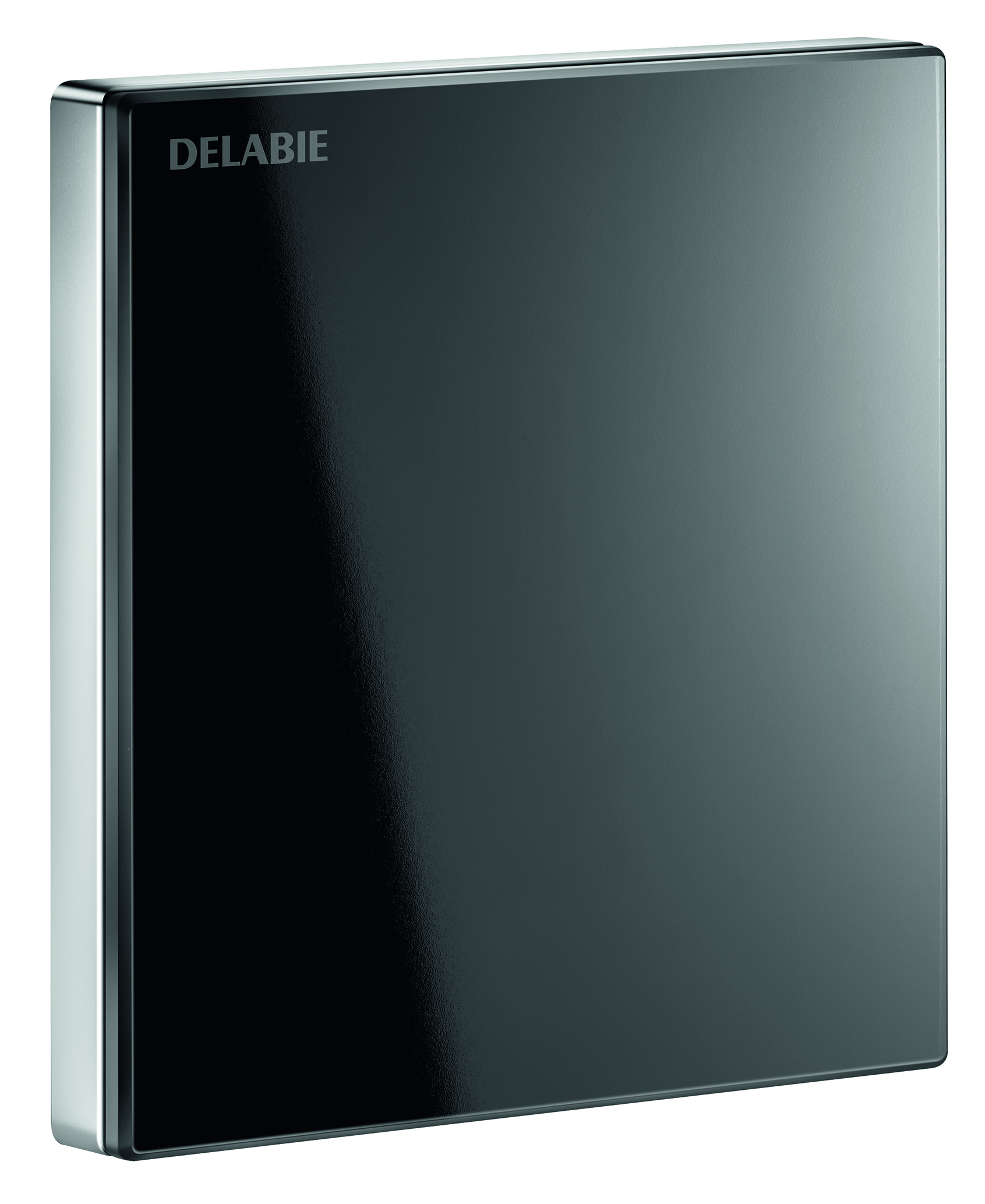

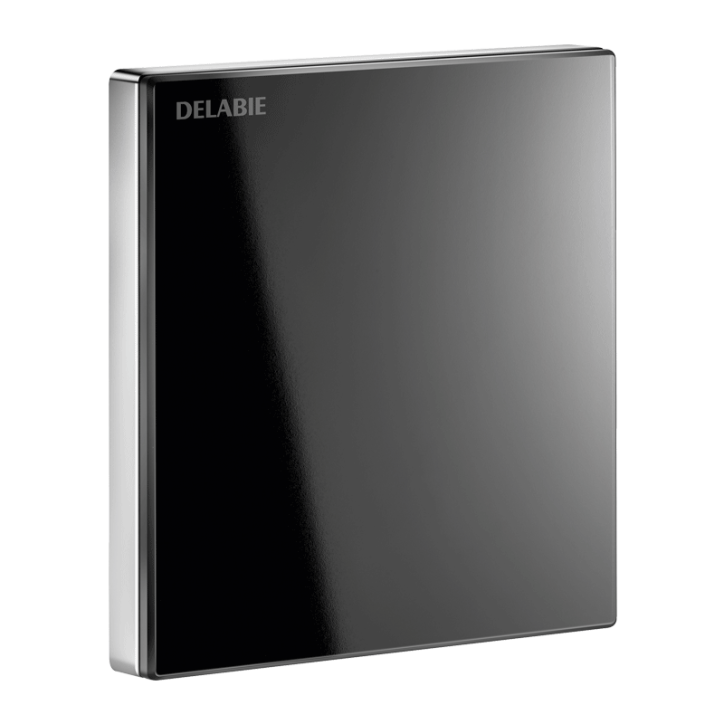

Black wall plate 145 x 145mm in shock-resistant tempered glass with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
- Short rinse after each user.
- Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vaccums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½" valve compatible with rain water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.

Order with frame system references 543000 for urinals Ø 35mm, 543000D for urinals with flexible ½" or with recessed housing 430SBOX.

Advantages

Total hygiene: no manual contact

3 rinsing programmes and high-frequency mode

Hygienic duty flush

Compatible with mains supply

Control plate for TEMPOMATIC 4 for urinals

Ref. 430030

Supply 230/6V mains supply

Technology Electronic

Length 145mm

Width 145mm

Finish Black wall plate in shock-resistant vitro-ceramic glass

Certificates

Warranty

Associated products

TEMPOFIX 3 frame system for urinals

Steel frame system for urinals Ø 35mm

Ref. 543000

TEMPOFIX 3 frame system for urinals

Steel frame system for urinal with flexible, 1/2"

Ref. 543000D

Recessed waterproof housing for TEMPOMATIC 4 urinal valve

For electronic urinal valve

Ref. 430SBOX
