Ref. 430016
Recessed electronic battery-operated valve - For urinals
£414.05 excl. VAT
2026 UK public price excluding VAT
5 variants
430000 -
Satin finish - Mains supply 230/6V connection, F½"
430006 -
Satin finish - Supplied by 6V CR123 Lithium batteries, F½"
430010 -
Chrome-plated stainless steel - Mains supply 230/6V connection, F½"
430030 -
Tempered black glass finish - Mains supply 230/6V connection, F½"
430036 -
Tempered black glass finish - Supplied by 6V CR123 Lithium batteries, F½"

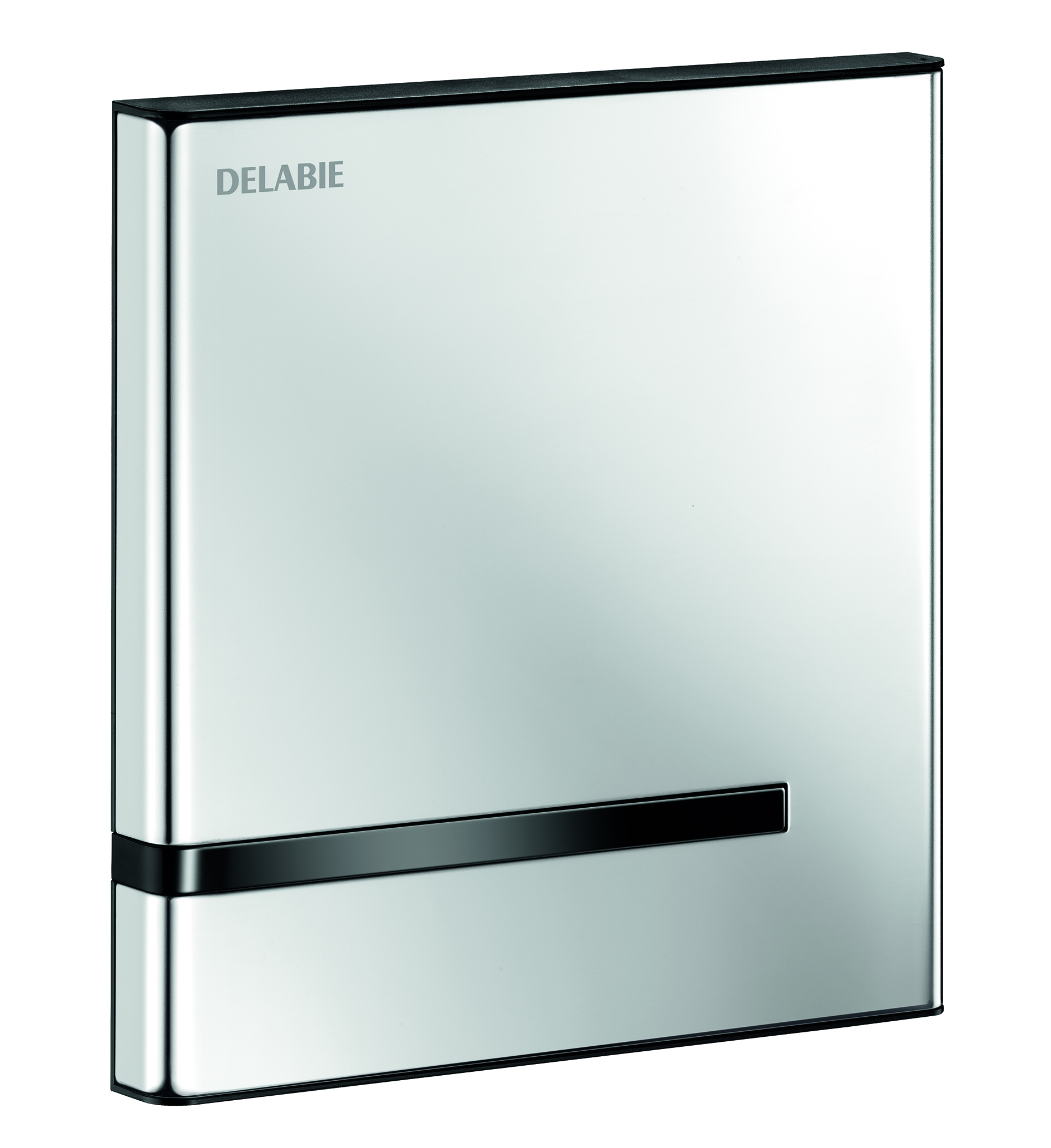

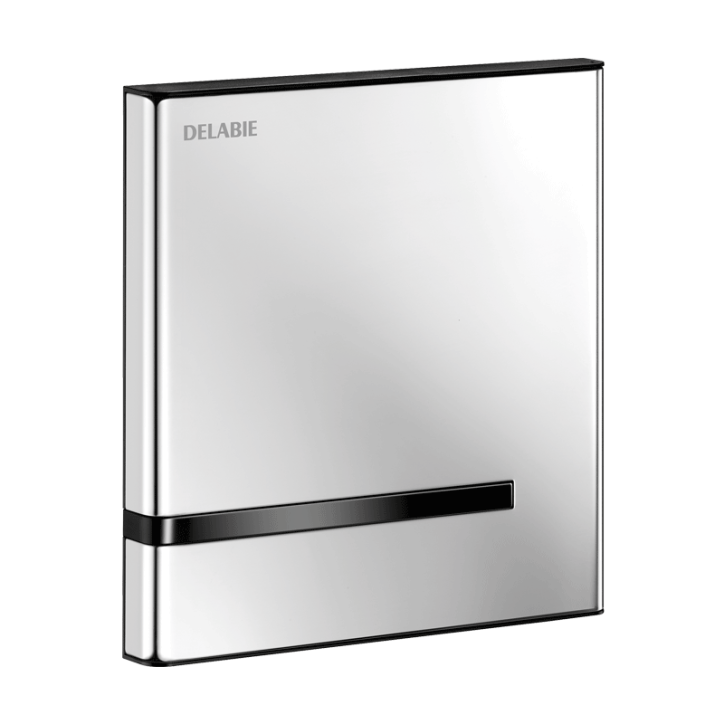

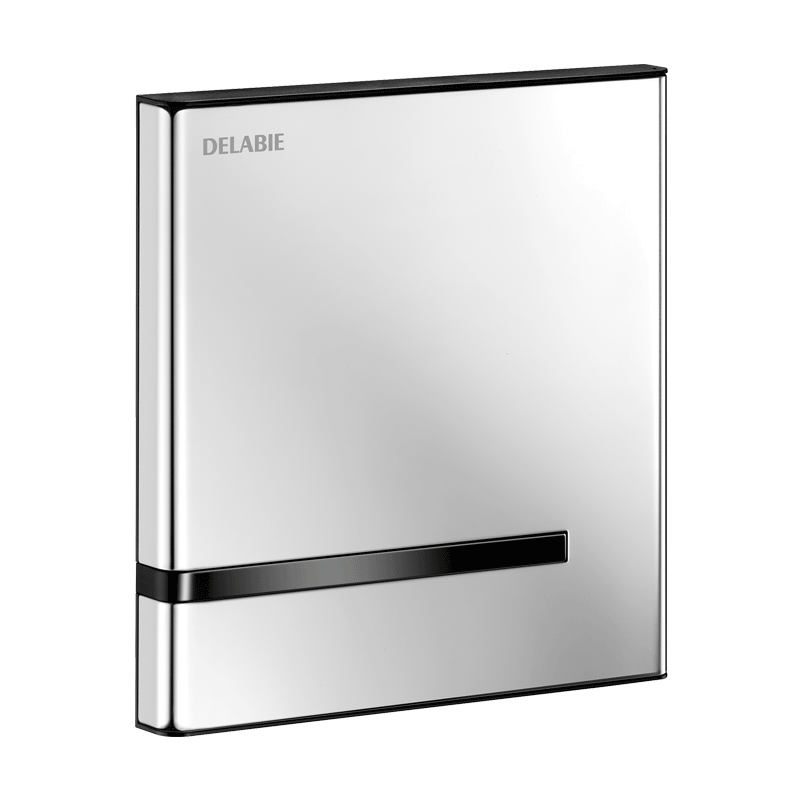

Control plate for TEMPOMATIC 4 for urinals
Ref. 430016
TEMPOMATIC 4 electronic valve F½", kit 2/2.
Battery-operated with 123 Lithium 6V batteries.
Solenoid valve enables opening and closing of water.
Chrome-plated finish stainless steel wall plate 145 x 145mm with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
- Short rinse after each user.
- Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vaccums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½" valve compatible with rain water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.

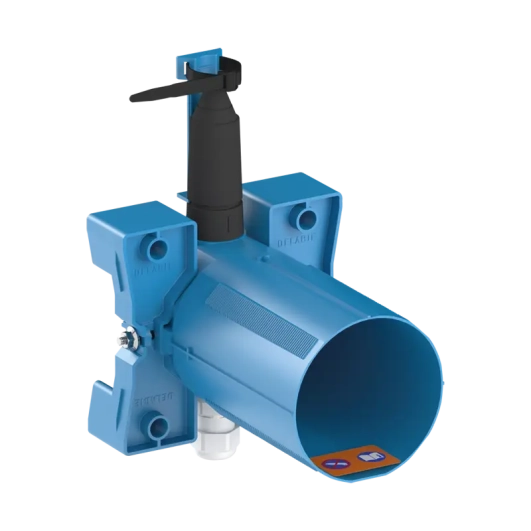

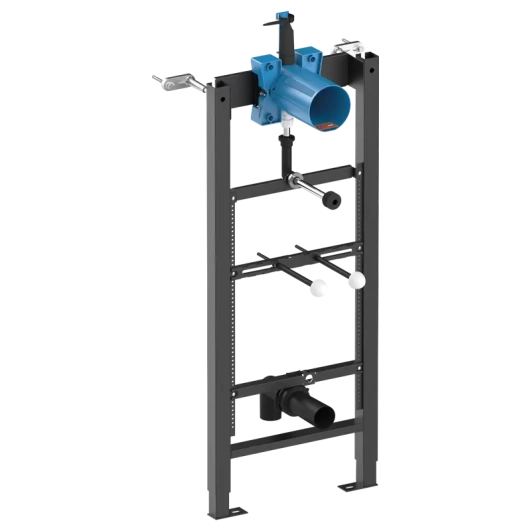

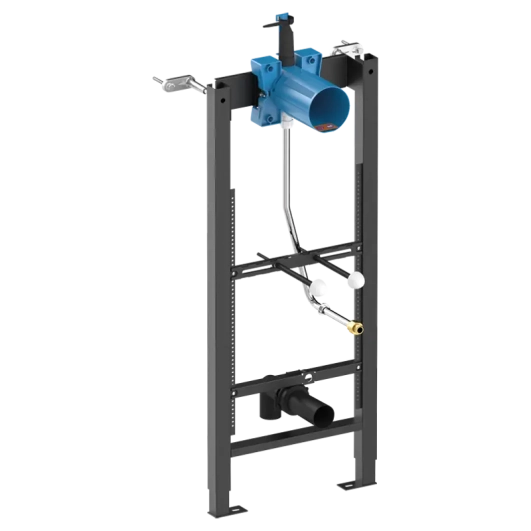

Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½" or with recessed housing 430PBOX.
Battery-operated with 123 Lithium 6V batteries.
Solenoid valve enables opening and closing of water.
Chrome-plated finish stainless steel wall plate 145 x 145mm with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
- Short rinse after each user.
- Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vaccums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½" valve compatible with rain water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.
Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½" or with recessed housing 430PBOX.
Advantages
Control plate for TEMPOMATIC 4 for urinals
Ref. 430016
Supply
6V batteries
Technology Electronic
Length 145mm
Width 145mm
Finish Bright polished stainless steel
Certificates
Warranty
Technology Electronic
Length 145mm
Width 145mm
Finish Bright polished stainless steel
Certificates
Warranty
Control plate for TEMPOMATIC 4 for urinals
Ref. 430016
To download one or several documents linked to this product, please select the type of file you require
