Flush system without cistern: directly connected to pipework.
For wall-mounted, exposed installation.
Soft-touch operation.
Time flow ~7 seconds.
Vacuum breaker.
Chrome-plated solid brass body and push-button.
Angled inlet M¾".
With outlet nut Ø 28mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Compatible with rain water.
Suitable for people with reduced mobility.
30-year warranty.
Advantages
No cistern: no stagnant water
Chrome-plated solid brass
Powerful flush and immediately available
Direct flush reduces the risk of leaks

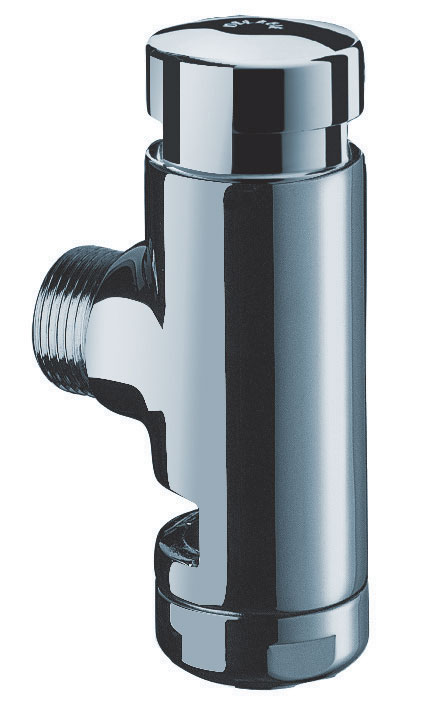

TEMPOFLUX 1 direct flush valve
Ref. 761000
Connector
¾"
Certificates
Warranty
Repairability
TEMPOFLUX 1 direct flush valve
Ref.
761000
