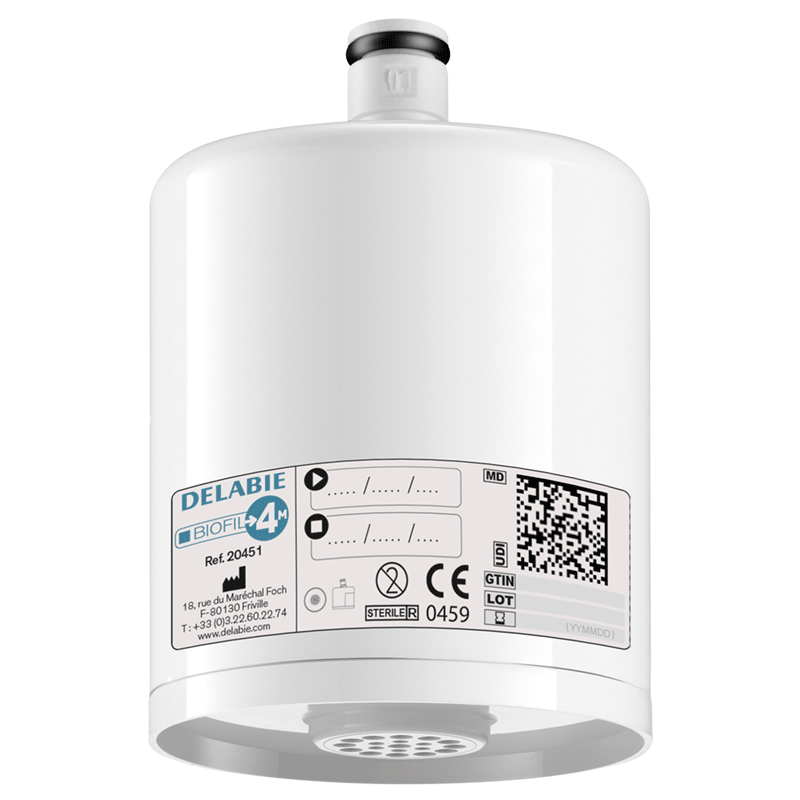

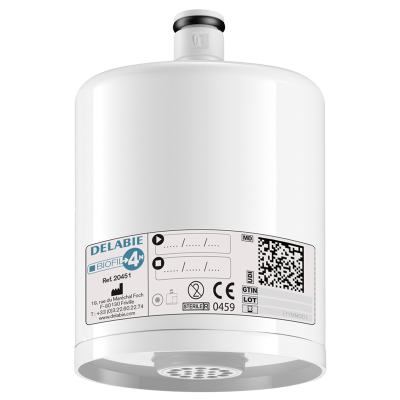

DELABIE anti-Legionella and all-germ tap filter, laminar flow.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 12,000 litres.
Filtration flow rate: 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar (filter only, excludes any flow rate restriction in the tap).

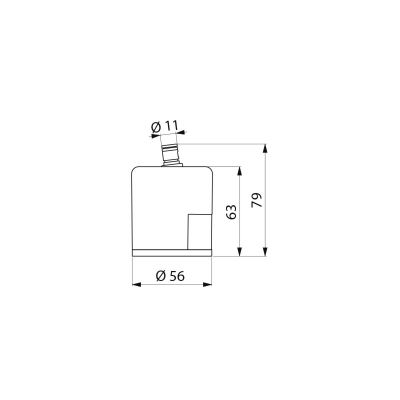

Space saving, suitable for taps with a low spout height: H. 63mm - Ø. 56mm
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 4 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 4 hours cumulative.
Sterile filter.
CE Class Is medical device.
Reference for a single unit. Must be ordered in multiples of 10.
Packaged in boxes of 10 units.
Advantages
Anti-Legionella and all-germ
Space saving
Optimised position: angled connection
Lifespan: 4 months after installation
BIOFIL 4-month tap head filter
Ref. 20451
Technology
Point-of-use filtration
Height
63mm
Flow rate
4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar
Diameter
56 mm
Lifespan
4 months
Certificates
BIOFIL 4-month tap head filter
Ref.
20451
