BIOFIL 3-month tap head filter

Ref. 20350
Sterile
BIOFIL 3-month tap head filter

Presentation

DESCRIPTION

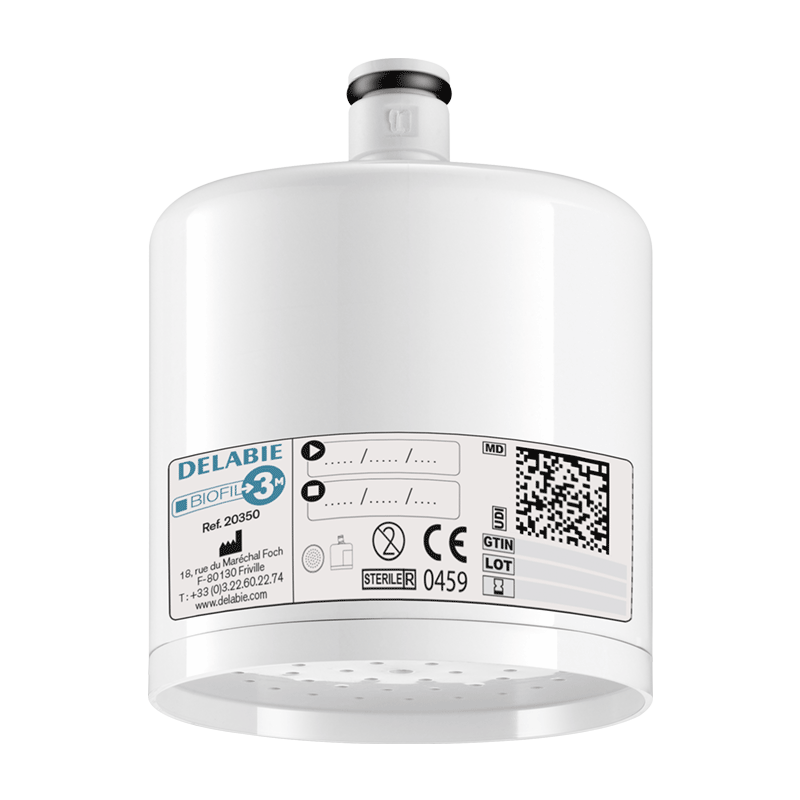

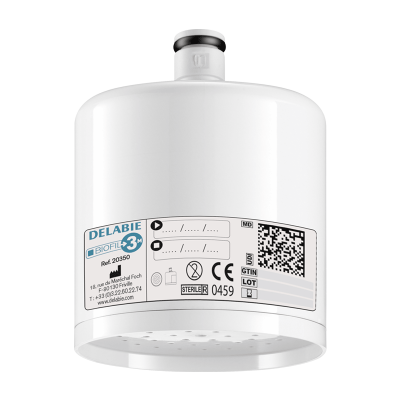

BIOFIL 3-month tap head filter

Ref. 20350
DELABIE anti-Legionella and all-germ tap head filter.
Device made from ABS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Qualified water volume per duration of use: 9,000 litres.
Filtration flow rate: 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar (filter only, excludes any flow rate restriction in the tap).

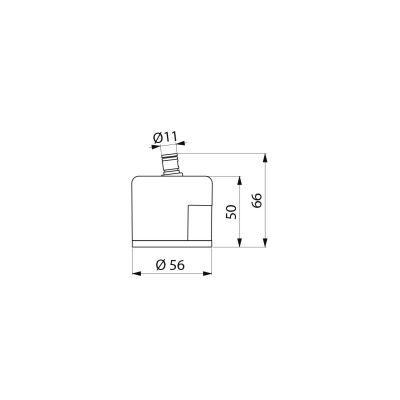

Space saving, suitable for taps with a low spout height: H. 50mm, Ø. 56mm
Controlled management of retro-contamination: protective skirt and angled connector for optimal positioning (filter position can be adjusted so the water does not flow directly on to the waste).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 3 months after installation.
Resistance to thermal shocks: 70°C for 30 minutes.
Resistance to chemical shocks: active chlorine levels up to 100 ppm for 3 hours (cumulative total).
Sterile filter. Individually wrapped, sterile.
CE Class Is medical device.
Single unit. Can only be ordered in multiples of 10.
Packaged in boxes of 10.

2024 UK public price excluding VAT: £102.84

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

Anti-Legionella and all-germ

Encombrement

Space saving

Connexion inclinée

Optimised position: angled connection

Endurance - Fiabilité

Lifespan: 3 months after installation

Characteristics

TECHNICAL CHARACTERISTICS

BIOFIL 3-month tap head filter

Ref. 20350
Technology Point-of-use filtration
Height 50mm
Flow rate 4.6 lpm at 1 bar, 7.6 lpm at 3 bar and 9.4 lpm at 5 bar
Diameter 56mm
Certificates ACS Logo WRAS KTW-BWGL Logo CE Logo PZH

Downloads

DOWNLOADS

BIOFIL 3-month tap head filter

Ref. 20350

To download one or several documents linked to this product, please select the type of file you require :
