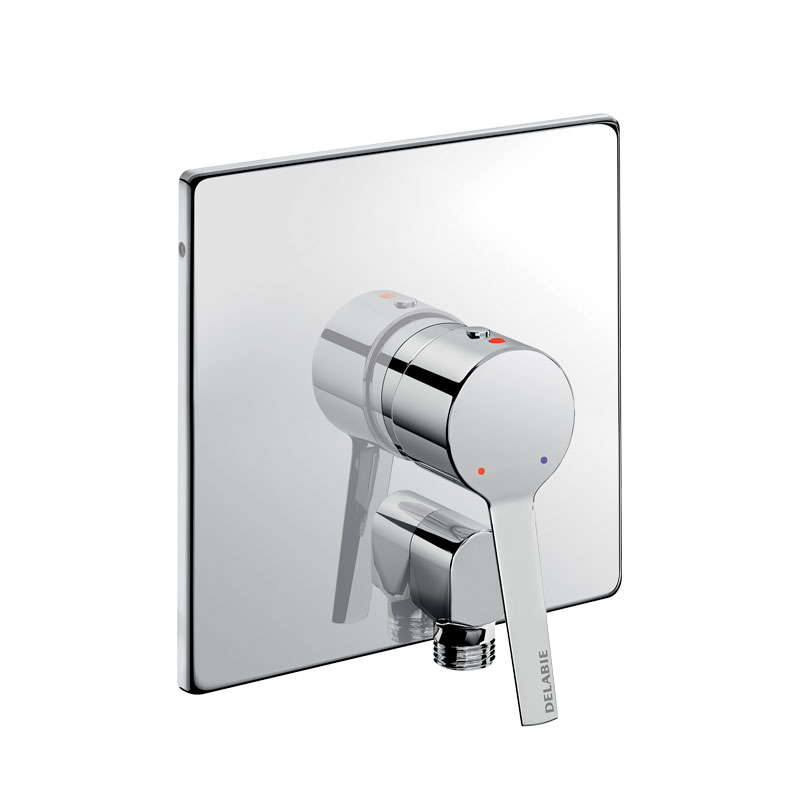

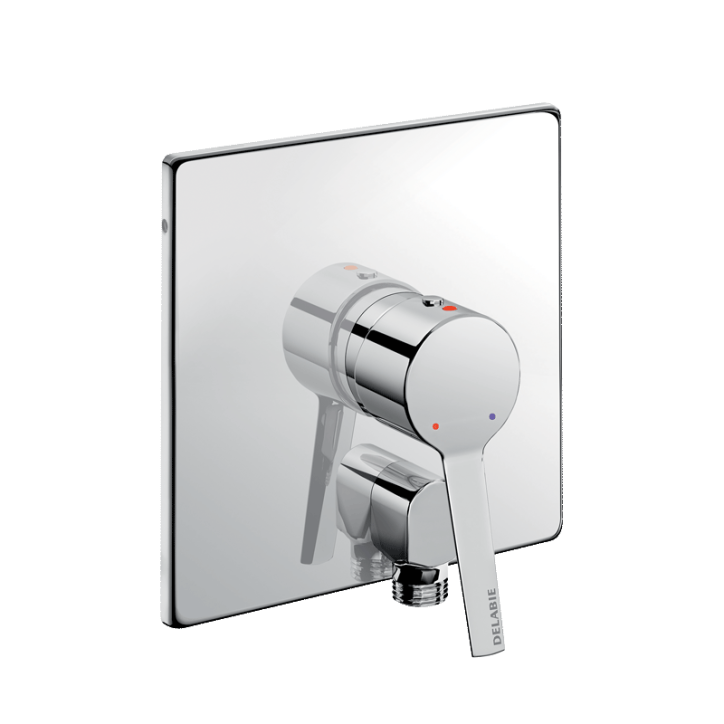

Recessed shower mixer with pressure-balancing and angled outlet
Ref. 2551EP
Mechanical shower mixer with pressure-balancing which can be recessed; with angled oulet, kit 2/2.
Single control mixer with Ø 40mm ceramic cartridge with pressure-balancing.
Pre-set maximum temperature limiter.
Mixer with anti-scalding safety: HW flow rate reduced if CW supply fails (and vice versa).

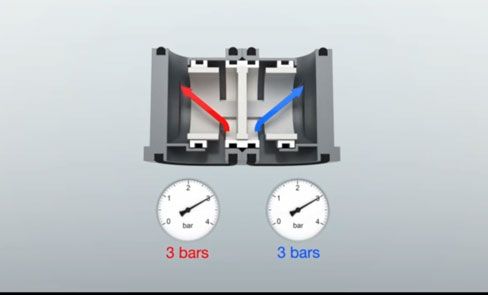

Stable temperature regardless of variations in pressure and flow rate in the system.
Thermal shocks are easy to undertake without removing the control lever or shutting off the cold water.
Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head.
Solid control lever.
Filters and non-return valves on the inlets.
Order a wall-mounted outlet or shower head to complete.

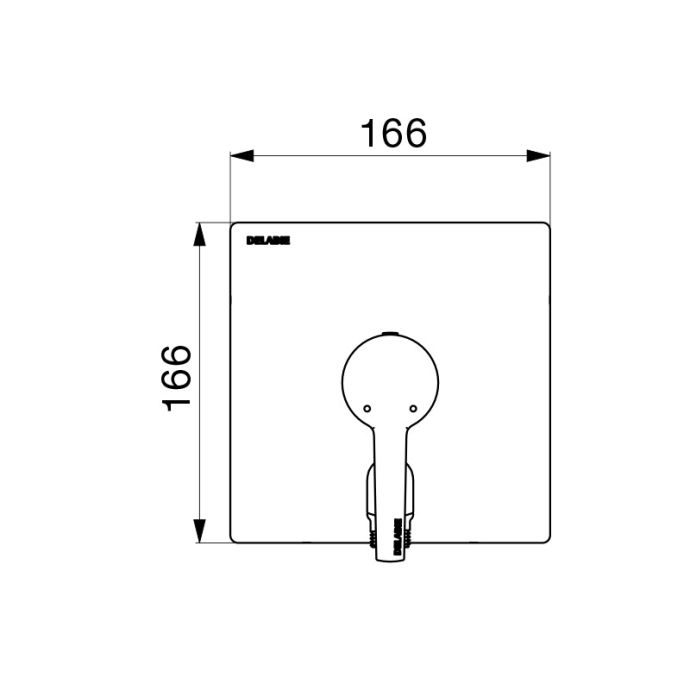

Bright polished stainless steel cover plate 166 x 166mm with wall-mounted angled outlet.
Mechanical shower mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Order with a waterproof recessing housing ref. 254CBOX.
Advantages
HW flow rate reduced if CW supply fails
EP: reduces temperature variations
Thermal shock without removing control lever
100% waterproof: angled outlet on the wall plate
Recessed shower mixer with pressure-balancing and angled outlet
Ref. 2551EP
Supply
1/2"
Technology
SECURITHERM EP mixer
Height
166mm
Width
166mm
Flow rate
Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head
Temperature limiter
Yes
Finish
Chrome-plated brass
Certificates
Warranty
Repairability
Recessed shower mixer with pressure-balancing and angled outlet
Ref.
2551EP
To download one or several documents linked to this product, please select the type of file you require
