Ref. 254BOX
Mechanical mixer, kit 1/2
£314.87 excl. VAT
2026 UK public price excluding VAT
5 variants
2551EP -
Mixer with EP cartridge - with elbow outlet
2541EP -
EP cartridge - Without elbow outlet
2551 -
Mixer with ceramic cartridge - With elbow outlet
2541 -
Standard cartridge - Without elbow outlet
254CBOX -
Waterproof housing for wall-plate with elbow outlet
Recessing housing for mechanical shower mixers
Ref. 254BOX

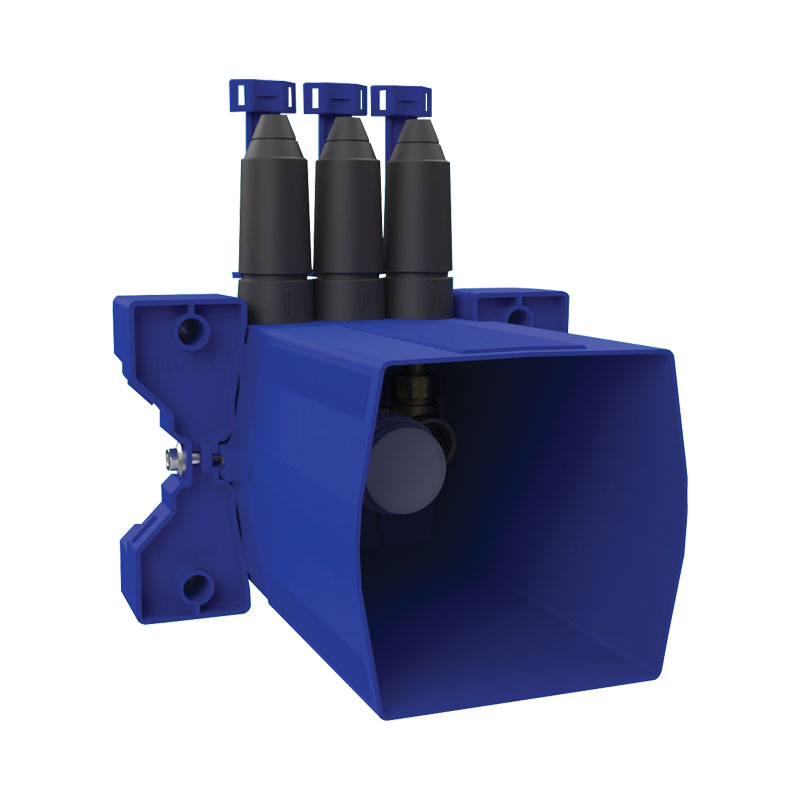

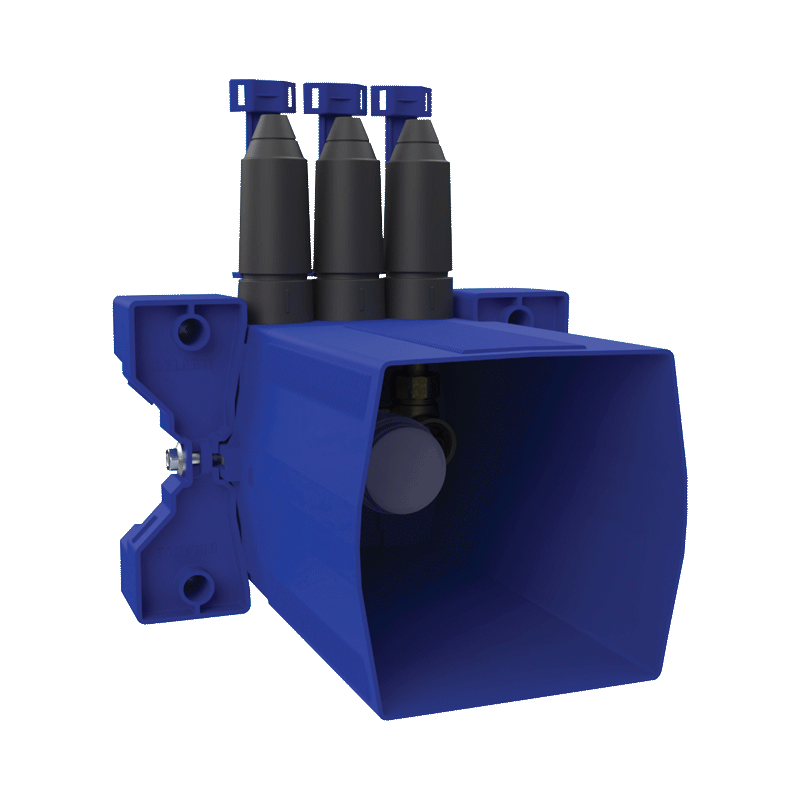

Waterproof recessing housing for mechanical shower mixers, kit 1/2.
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Top inlets.
- Adjusts to all types of installations (rails, solid walls, panels).
- Compatible with wall finishes 10 - 110mm (while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge are all integrated and accessible from the front.
- Mechanical shower mixer.
- Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.

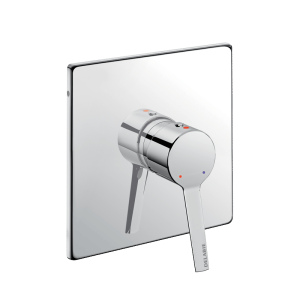

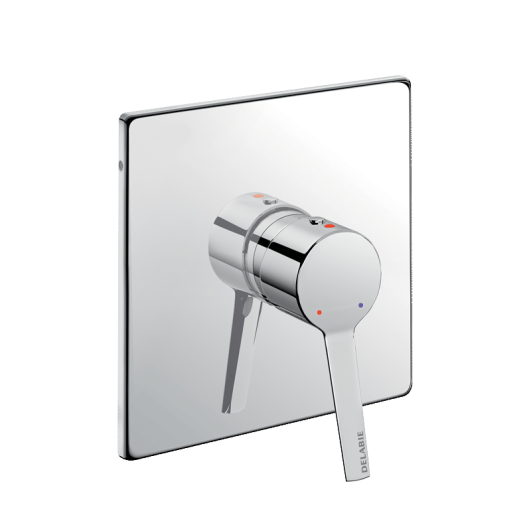

Order with a control plate reference 2541 or 2541EP.
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Top inlets.
- Adjusts to all types of installations (rails, solid walls, panels).
- Compatible with wall finishes 10 - 110mm (while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge are all integrated and accessible from the front.
- Mechanical shower mixer.
- Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.
Order with a control plate reference 2541 or 2541EP.
Advantages
Recessing housing for mechanical shower mixers
Ref. 254BOX
Supply
1/2"

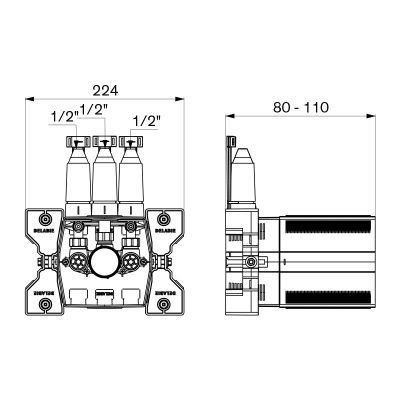

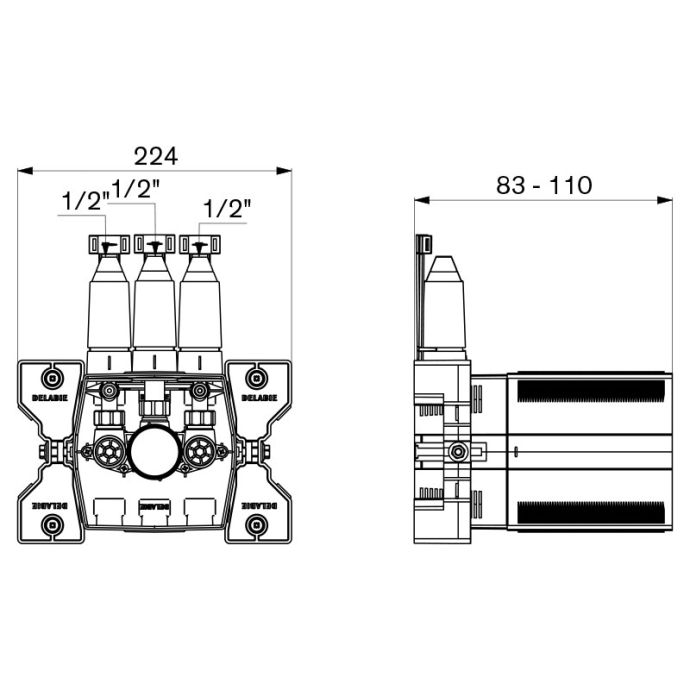

Depth 83 - 110mm
Width 224mm
Certificates
Warranty
Depth 83 - 110mm
Width 224mm
Certificates
Warranty
Recessing housing for mechanical shower mixers
Ref. 254BOX
To download one or several documents linked to this product, please select the type of file you require
