TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564060DE

For time flow or battery-operated electronic valve - Ø 110mm outlet

£401.80 ^{excl. VAT}

2026 UK public price excluding VAT

1 variant

564000DE - Mains supply- wall-mounted- for walls 10-120mm - F¾" - Ø 110mm outlet

£458.94 ^{excl. VAT}

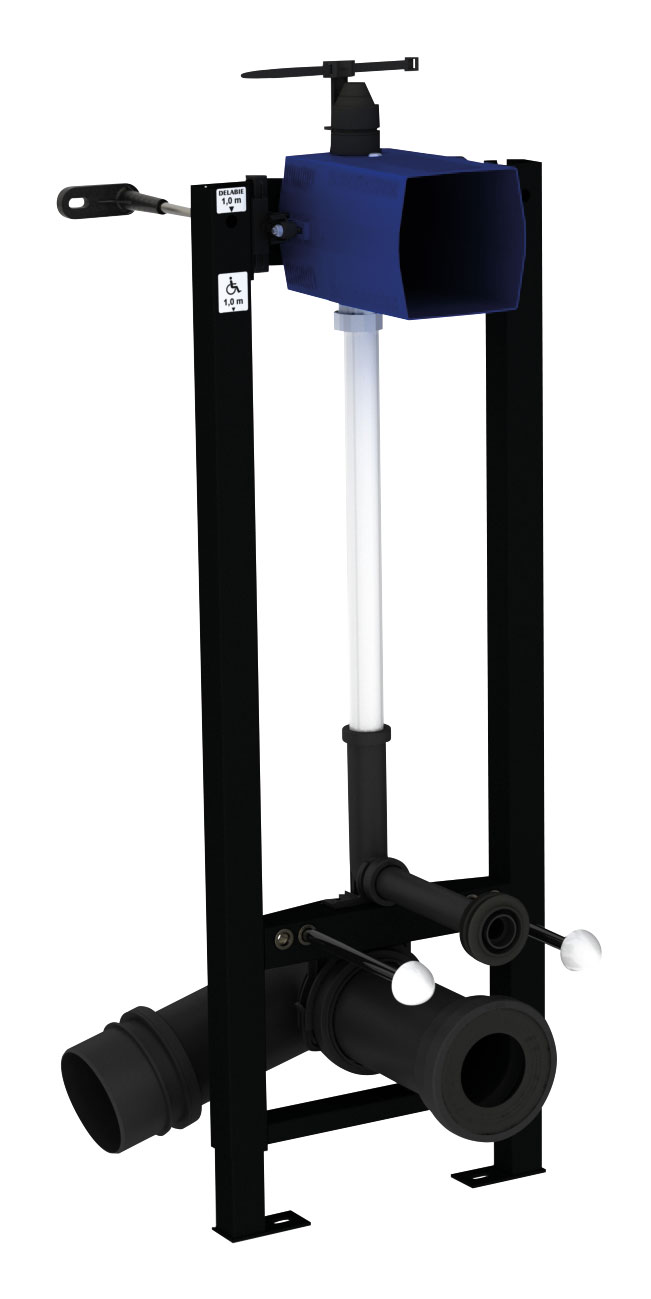

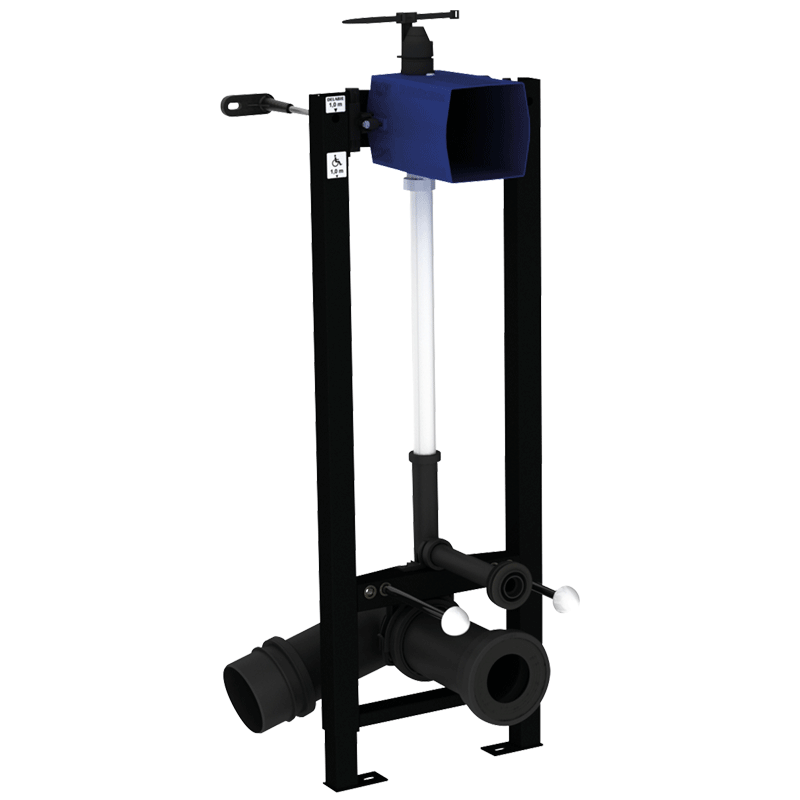

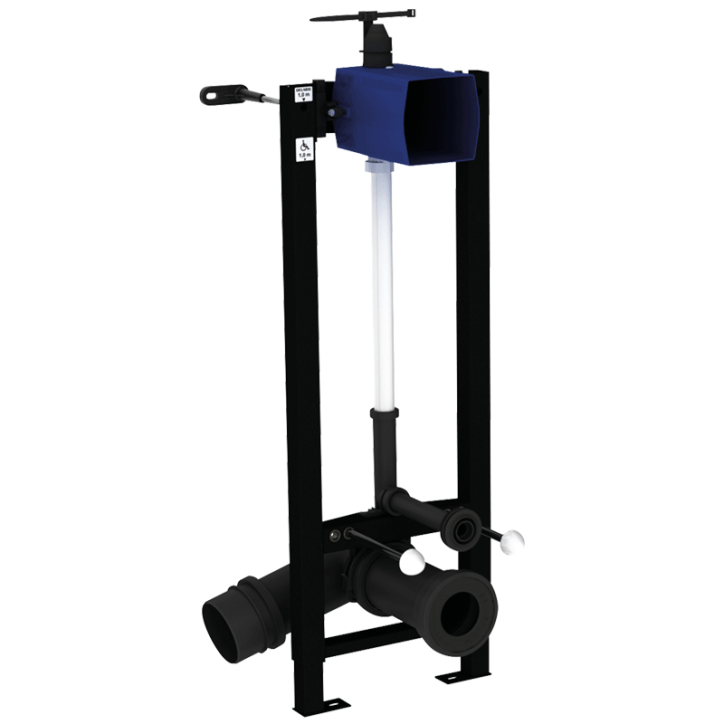

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564060DE

Wall-mounted frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- For fixing to load-bearing walls.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with electronic or time flow valves for WCs.
- Compatible with CR123 Lithium 6V battery.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.

Order with control plate references 464006, 465006, 763000, 763030, 763040 or 763041.

Advantages

Quick and easy to install: delivered pre-mounted

Space-saving

Adapt to wall thickness

Compatible with 6V Lithium batteries

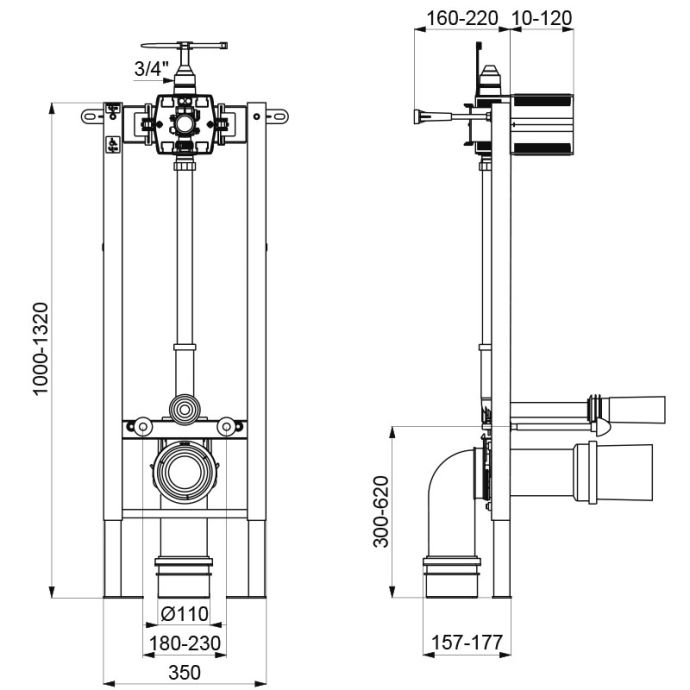

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564060DE

Connector ¾"

Technology Electronic and time flow

Height 1000 to 1320mm

Depth 157 - 177mm

Width 350mm

Diameter Ø 110mm outlet

Finish Black powder-coated steel

Warranty

This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
