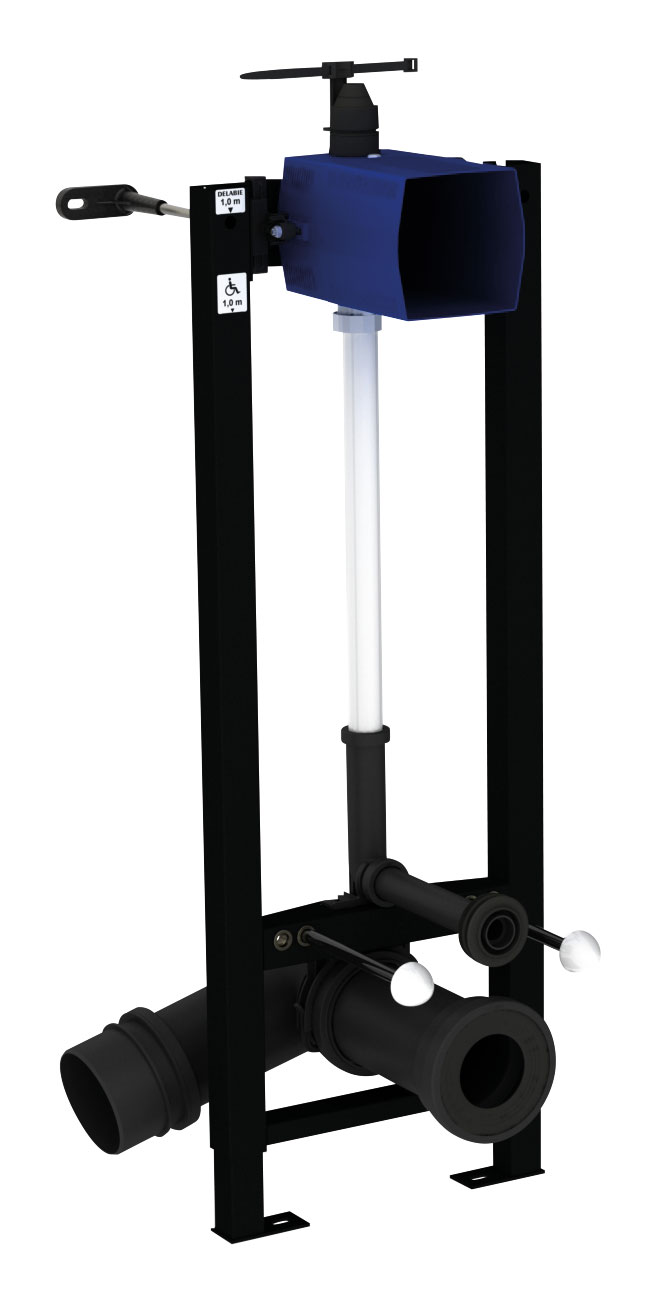

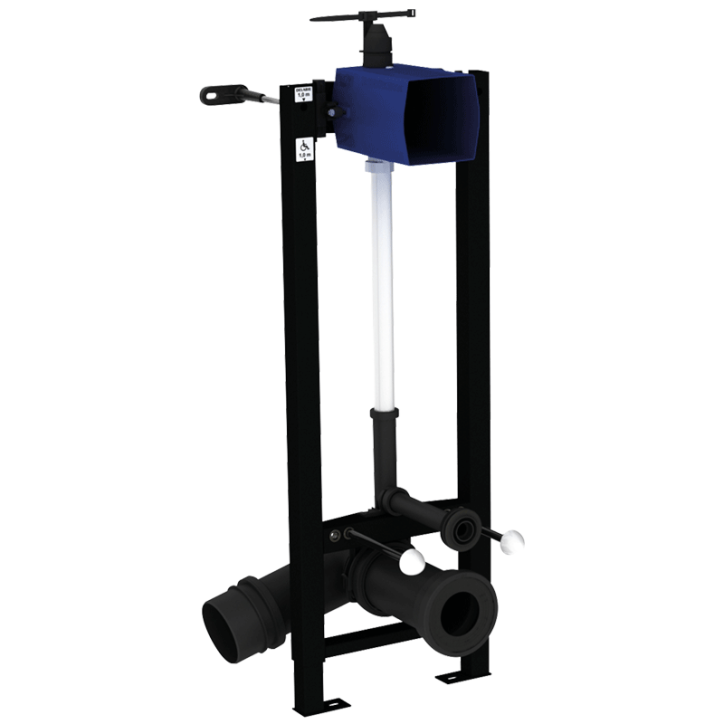

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564000DE

For electronic TEMPOMATIC mains supply flush valve - Ø 110mm

£458.94 ^{excl. VAT}

2026 UK public price excluding VAT

1 variant

564060DE - Time flow or batteries - wall-mtd- for walls 10-120mm- F¾"- Ø 110mm outlet

£401.80 ^{excl. VAT}

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564000DE

Wall-mounted frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- For fixing to load-bearing walls.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with TEMPOMATIC dual control or TEMPOMATIC Connect electronic WC valves.
- Compatible with 230/6V mains supply.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.

Order with control plate references 464000, 464050, 465000 or 465050.

Advantages

Quick and easy to install: delivered pre-mounted

Space-saving

Adapt to wall thickness

Compatible with mains supply

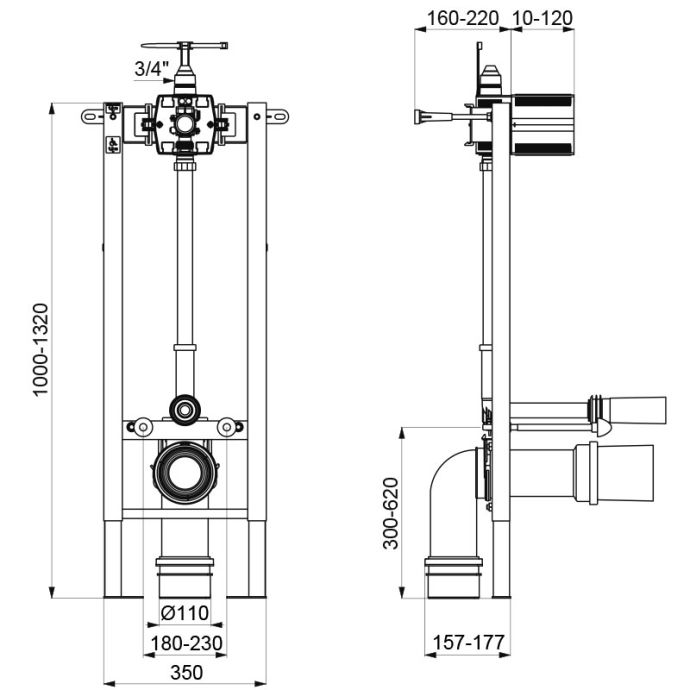

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564000DE

Connector ¾"

Technology Electronic and time flow

Height 1000 to1320mm

Depth 157 - 177mm

Width 350mm

Diameter Ø 110mm outlet

Finish Black powder-coated steel

Warranty

This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video

WC direct flush system, a public revolution

Associated products

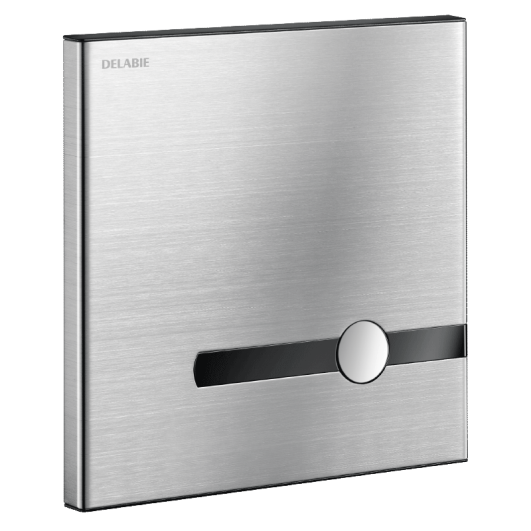

TEMPOMATIC dual control plate for WCs

Recessed dual control electronic mains supply valve - For WCs

Ref. 464000

New

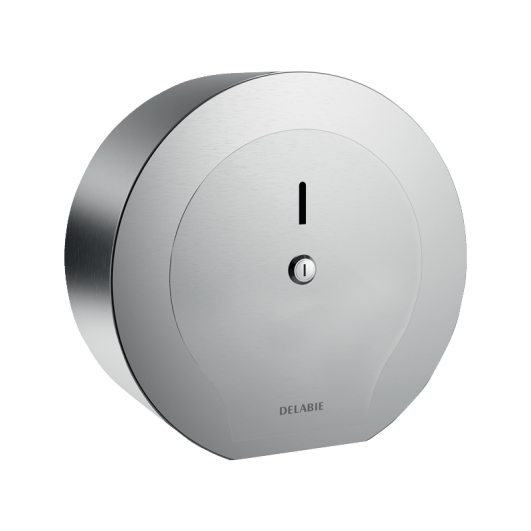

Large model toilet paper dispenser - 400m
