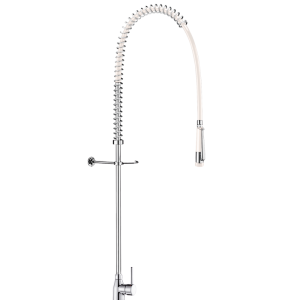

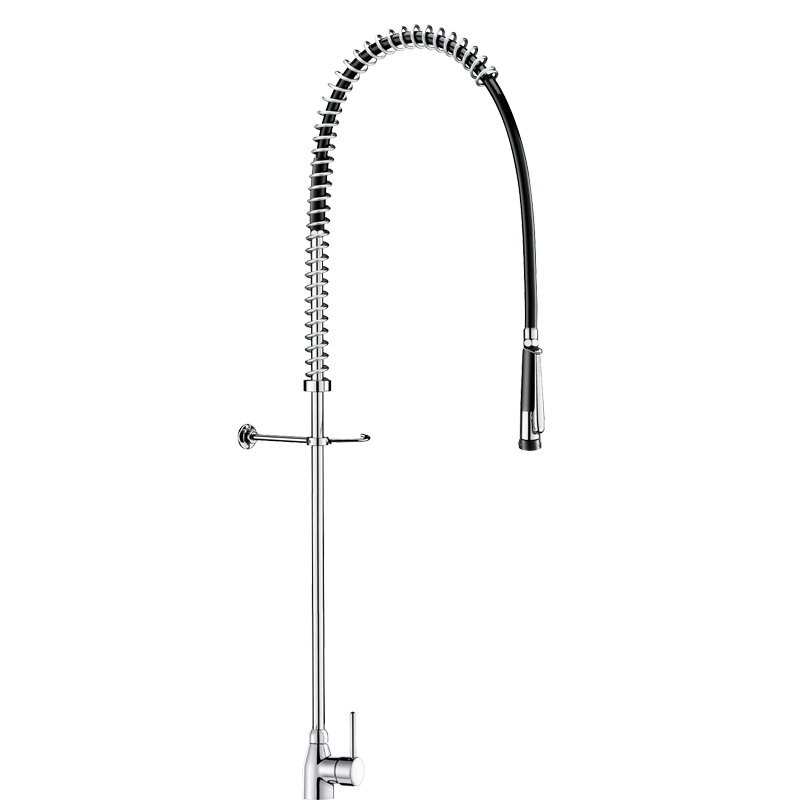

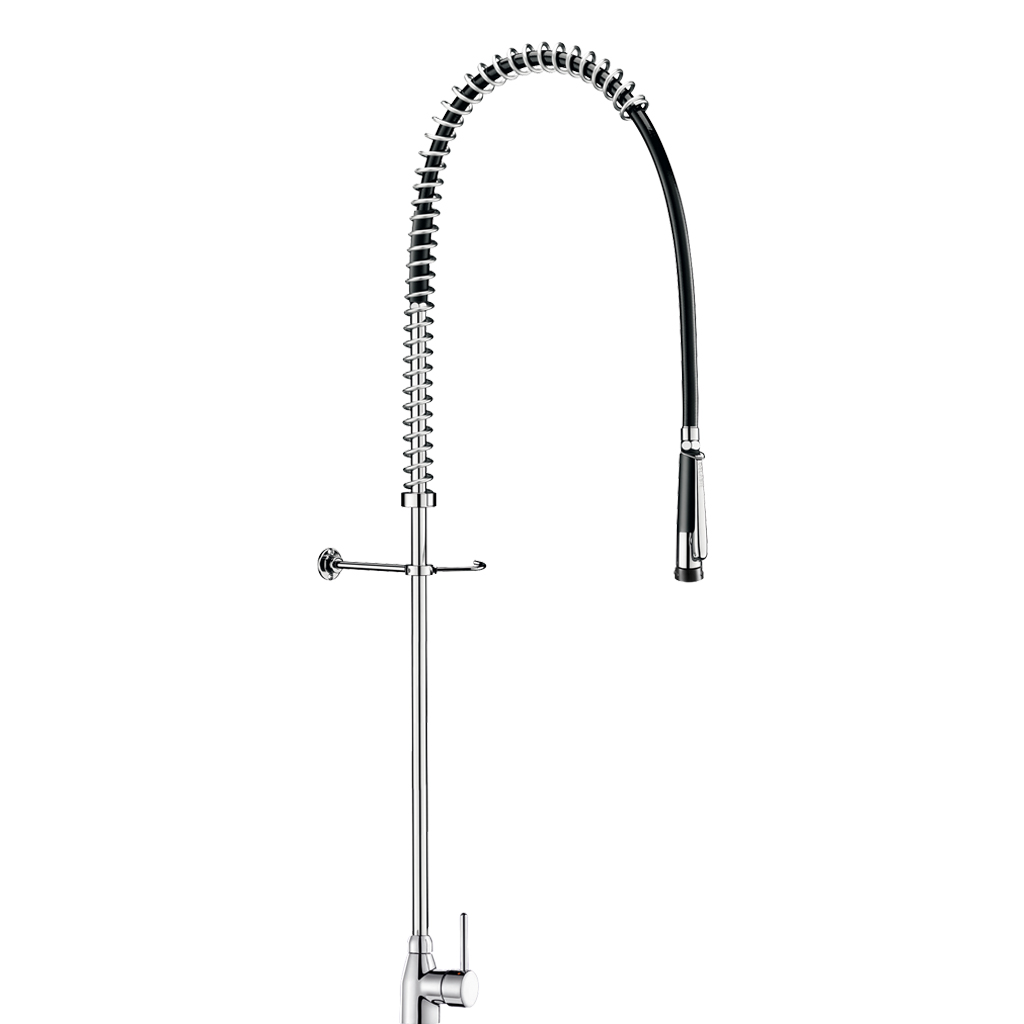

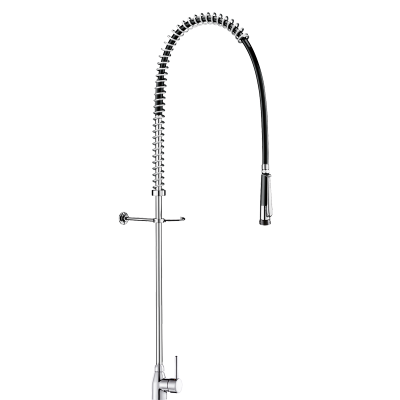

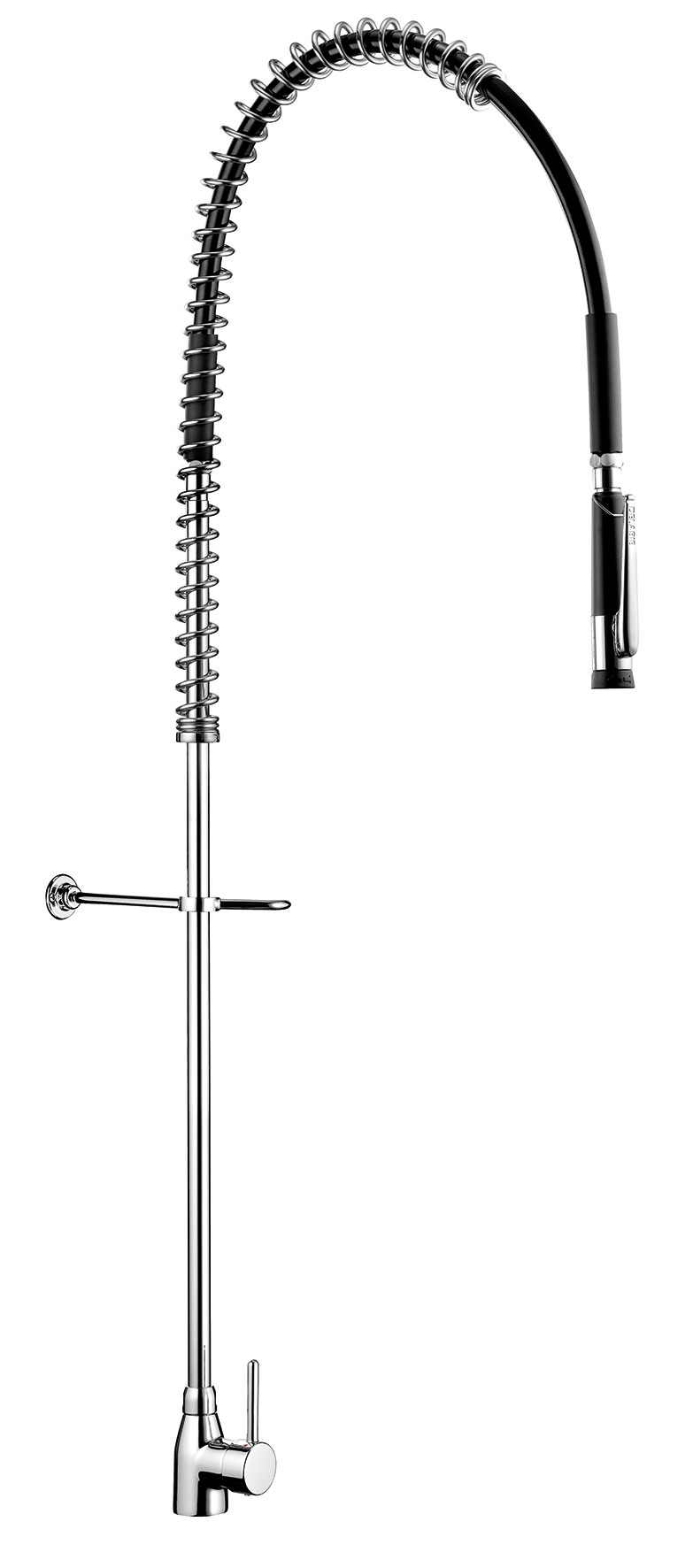

Pre-rinse set with mixer

Ref. 5626
Without bib tap
See variants See variants

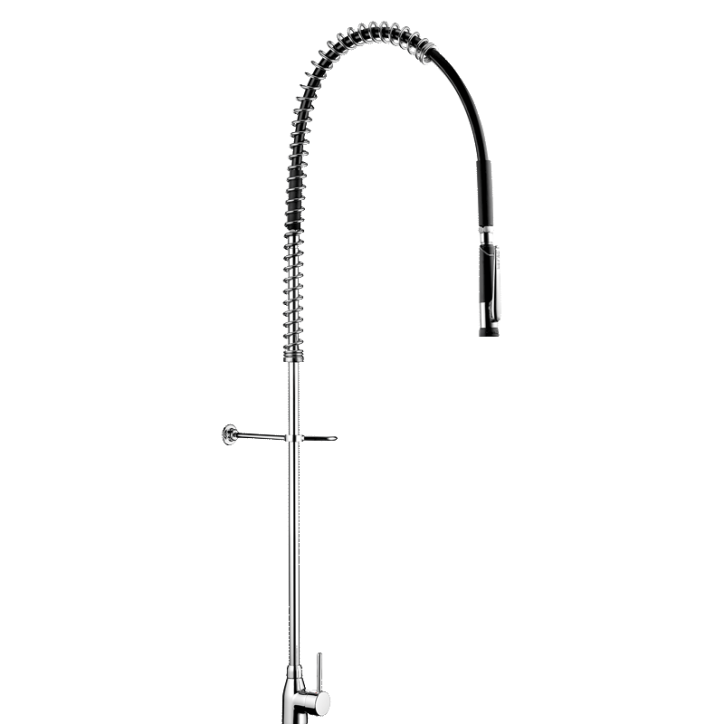

Pre-rinse set with mixer

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. 5626
Complete pre-rinse set without bib tap.
Single hole deck-mounted mixer with slimline control lever.
Suitable for intensive use in professional kitchens.
Supplied with F3/8" flexible hoses and non-return valves.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

2025 UK public price excluding VAT: £748.68

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic control

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Anti-vandalisme

Increased resistance: high quality flexible

Characteristics

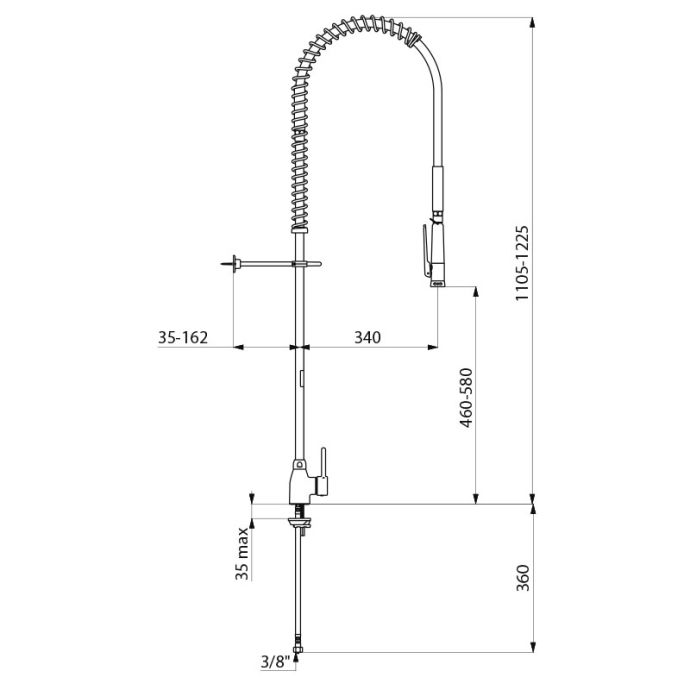

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. 5626
Connector F3/8"
Height 1105 - 1225mm
Drop height 340 - 580mm
Flow rate 9 lpm via the hand spray
Width to the wall 35 -162mm
Finish Chrome-plated brass
Certificates ACS Belgaqua PZH
Warranty 30-Year
Repairability
Pre-rinse set with mixer
Ref. 5626

Downloads

DOWNLOADS

Pre-rinse set with mixer

Ref. 5626

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

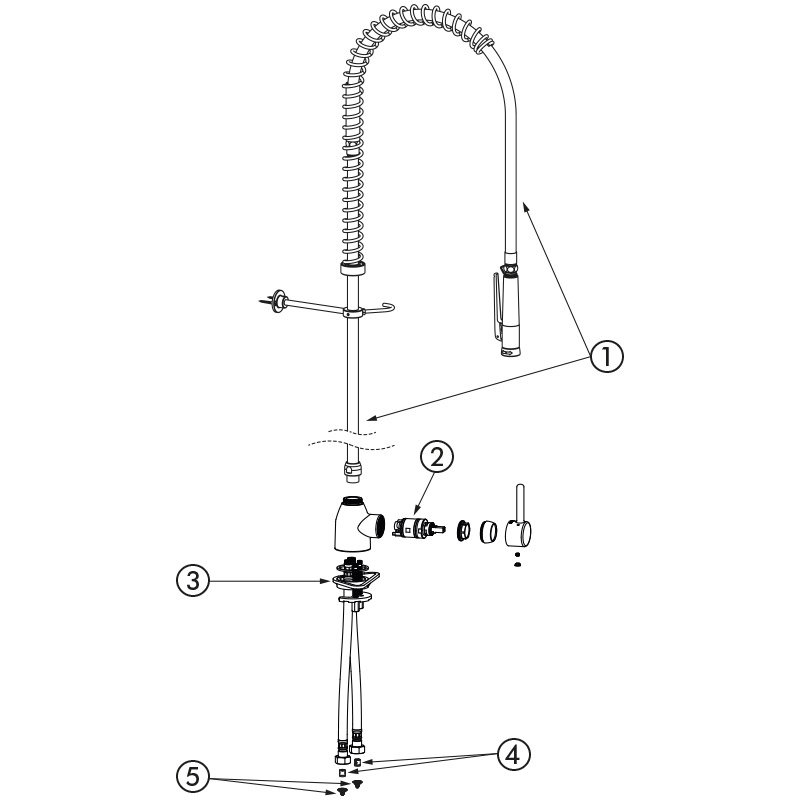

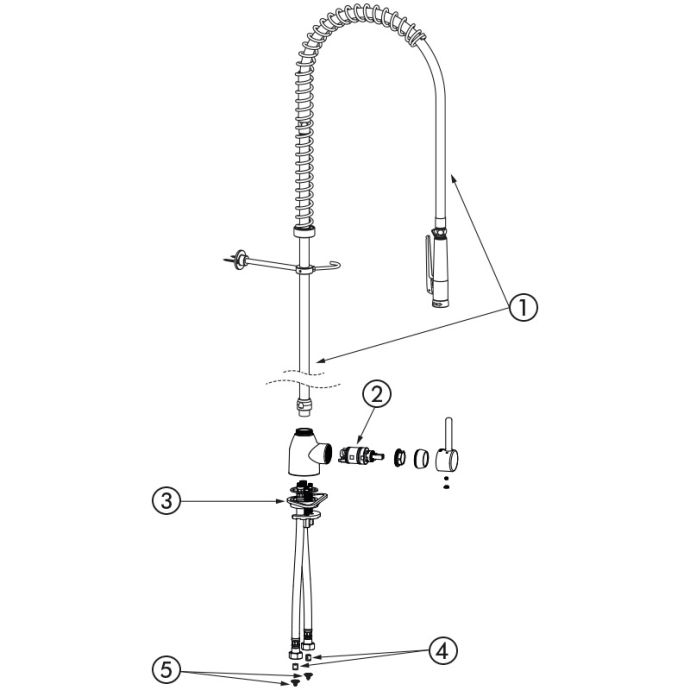

SPARE PARTS

Pre-rinse set with mixer

Ref. 5626
1. 433720
Black pre-rinse set with no valve
2. NS262
Ø35mm ceramic cartridge
3. 256P
Fixing plate
4. 900010
Non-return valve
5. 60438.10P
Conical filter

VARIANTS

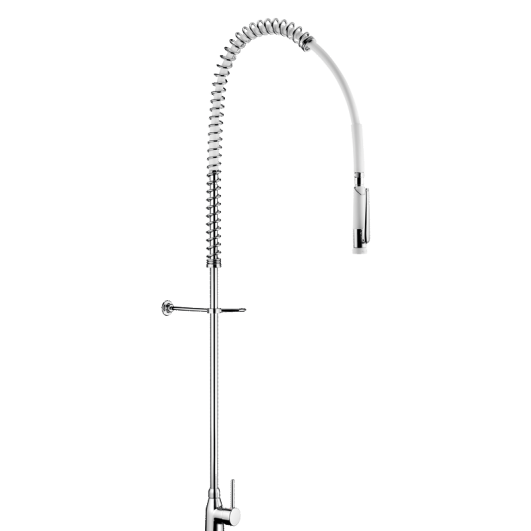

5625 Hand spray with scale-resistant nozzle - With bib tap and tubular spout £940.59 excl. VAT
