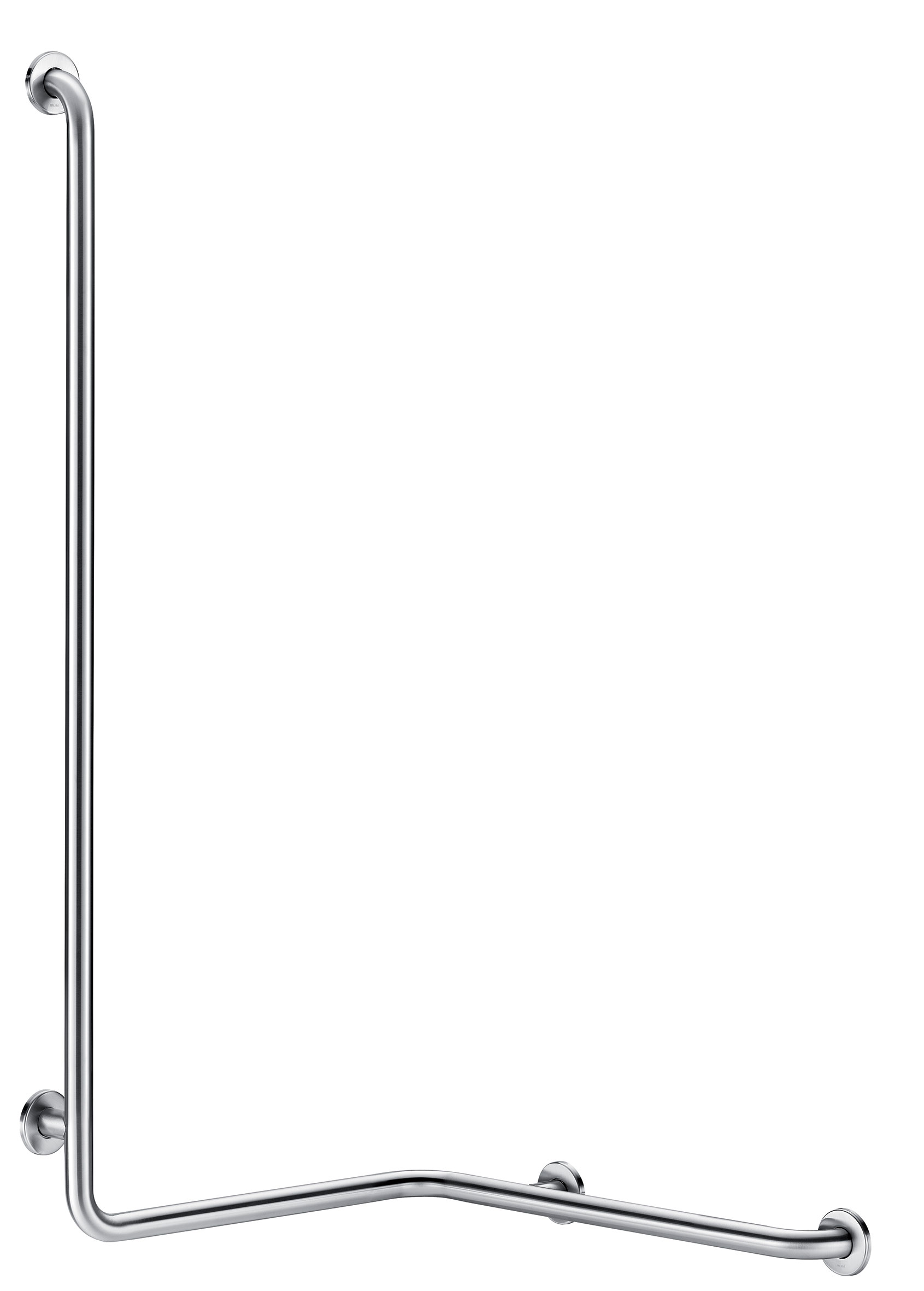

Right angled, shower grab bar (right model) with vertical bar, Ø 32mm
Ref. 5100DS
UltraSatin polished satin stainless steel, right model
UltraSatin polished satin stainless steel, right model
DESCRIPTION
Right angled, shower grab bar (right model) with vertical bar, Ø 32mm
Ref. 5100DSAngled, two-wall grab bar with vertical bar for people with reduced mobility, Ø 32mm. Right model.
Can be used as a support rail and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Can be used as a shower rail by adding a sliding shower head holder and/or soap dish.
Dimensions: 1,265 x 560 x 660mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.
Can be used as a support rail and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Can be used as a shower rail by adding a sliding shower head holder and/or soap dish.
Dimensions: 1,265 x 560 x 660mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.
2026 UK public price excluding VAT: £0.00
ADVANTAGES

304 stainless steel: reduces bacterial development

Tested to over 200kg

40mm gap between bar and wall: minimal space

UltraSatin: smooth surface easy to clean

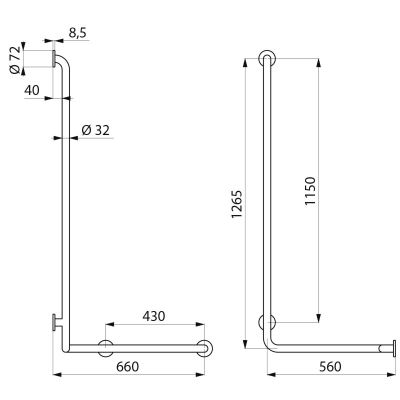

TECHNICAL CHARACTERISTICS
Right angled, shower grab bar (right model) with vertical bar, Ø 32mm
Ref. 5100DS| Height | 1,265mm |
| Length | 660mm |
| Width | 560mm |
| Diameter | Ø 32mm |
| Width to the wall | 40mm |
| Finish | 304 stainless steel UltraSatin polished satin |
| Certificates |
|
| Warranty | |
