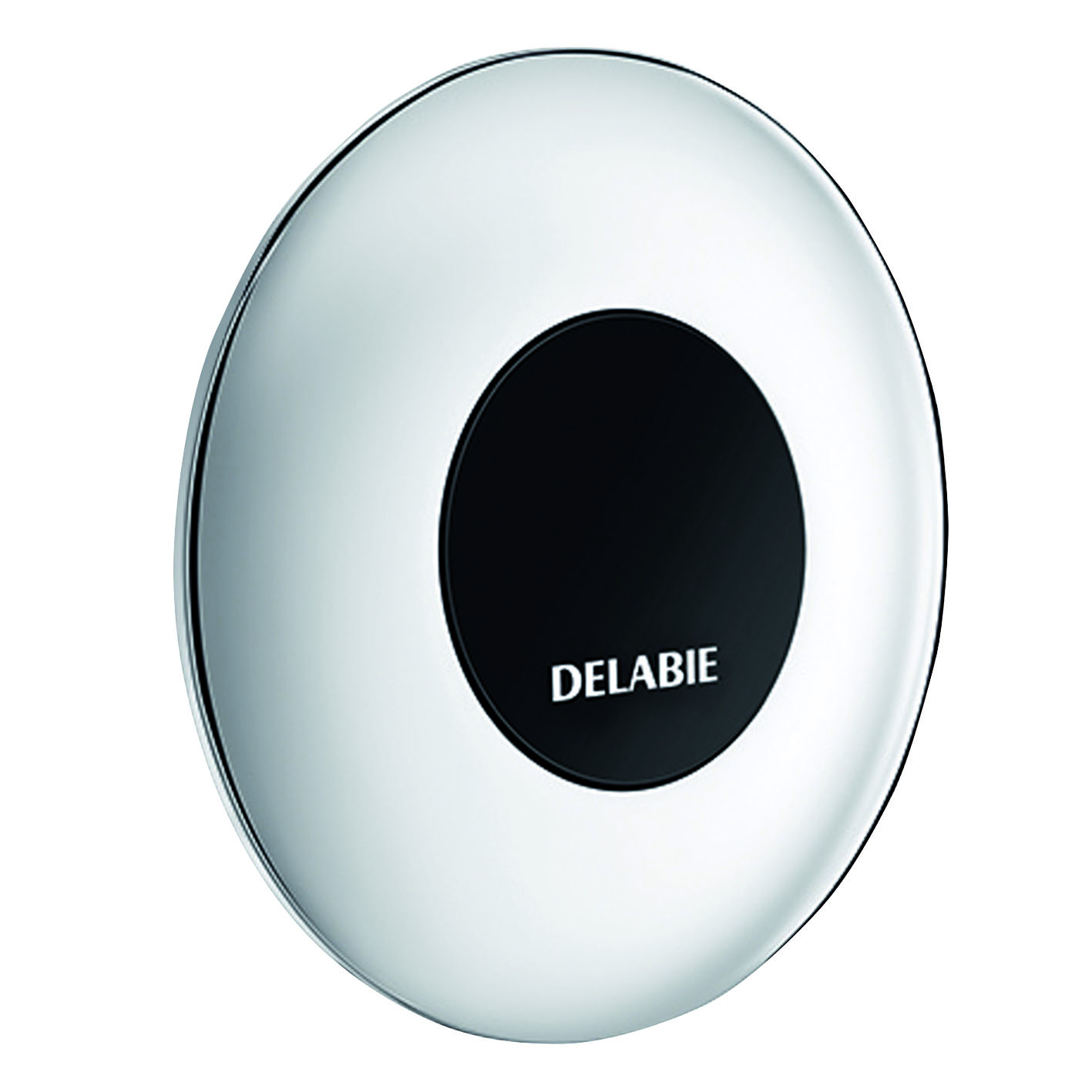

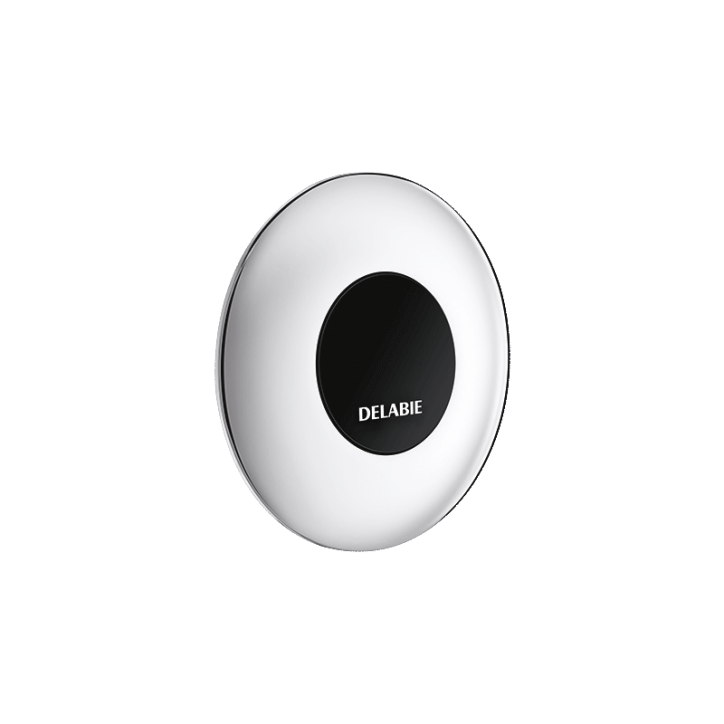

TEMPOMATIC direct flush valve

Ref. 463030

Direct flush WC valve

£878.71 ^{excl. VAT}

2026 UK public price excluding VAT

1 variant

463150 - Mains supply transformer 230/12V, for walls ≤ 160mm, F1"

£878.71 ^{excl. VAT}

TEMPOMATIC direct flush valve

Ref. 463030

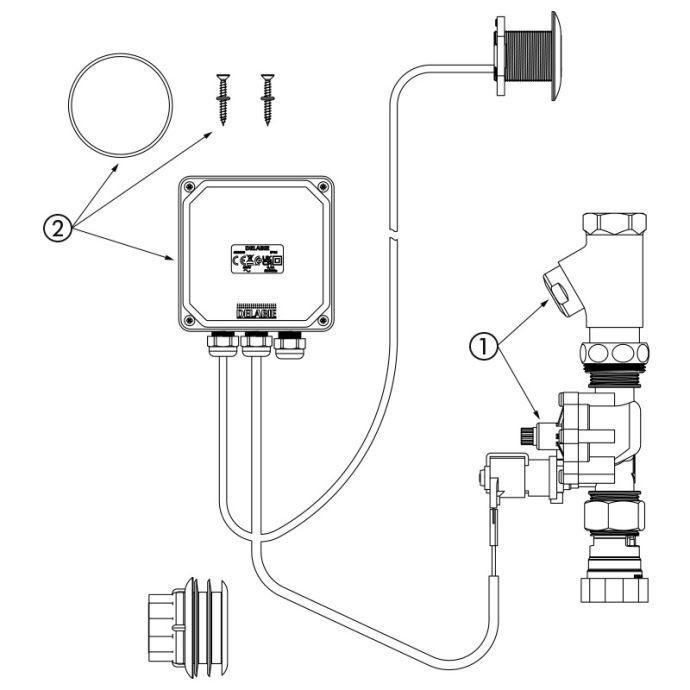

Flush system without cistern: directly connected to pipework.
Mains supply with 1" solenoid valve.
230/12V transformer.
IP65 independent electronic unit.
For cross wall installation on walls ≤ 30mm.
Shock-resistant infrared presence detection sensor.
Contactless automatic flush when the user leaves or voluntary activation (when hand is detected ~4cm in front of the sensor).
Time flow ~7 seconds, can be adjusted from 3 - 12 seconds.
Detection distance, flow rate and flush volume can be adjusted.
Stopcock FF1".
Vacuum breaker Ø32mm
Connection washer Ø 32/55mm.
Wall plate flush to the wall.
Threaded rod can be cut to size.
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Compatible with rain water, sea water and gray water.
Suitable for rimless WC pans without flow rate regulation
Suitable for people with reduced mobility.
30-year warranty.

Advantages

Total hygiene: operate without manual contact

No cistern: no stagnant water

Voluntary or automatic flush

Cross wall installation

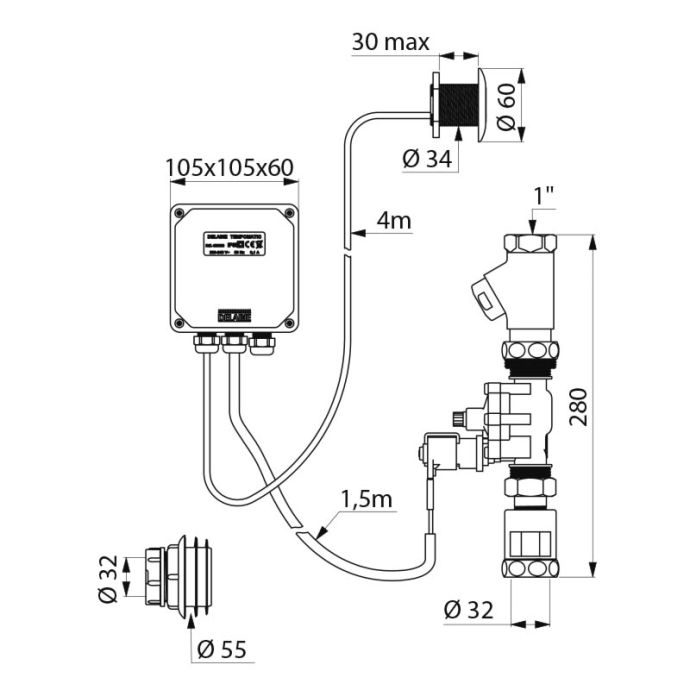

TEMPOMATIC direct flush valve

Ref. 463030

Supply 230/12V mains supply

Connector 1"

Technology Electronic

Length 30mm

Certificates

Warranty

Repairability

Discover the advantages of direct flush WC

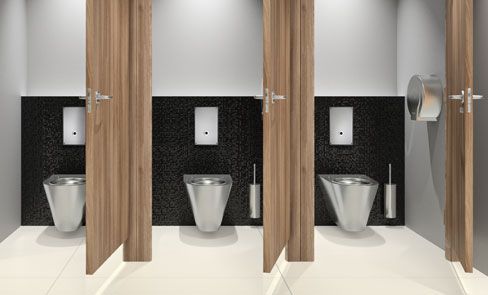

WC direct flush system, a public revolution
