TEMPOMIX 3 time flow mixer

Ref. 794370
Soft-touch operation
TEMPOMIX 3 time flow mixer

Presentation

DESCRIPTION

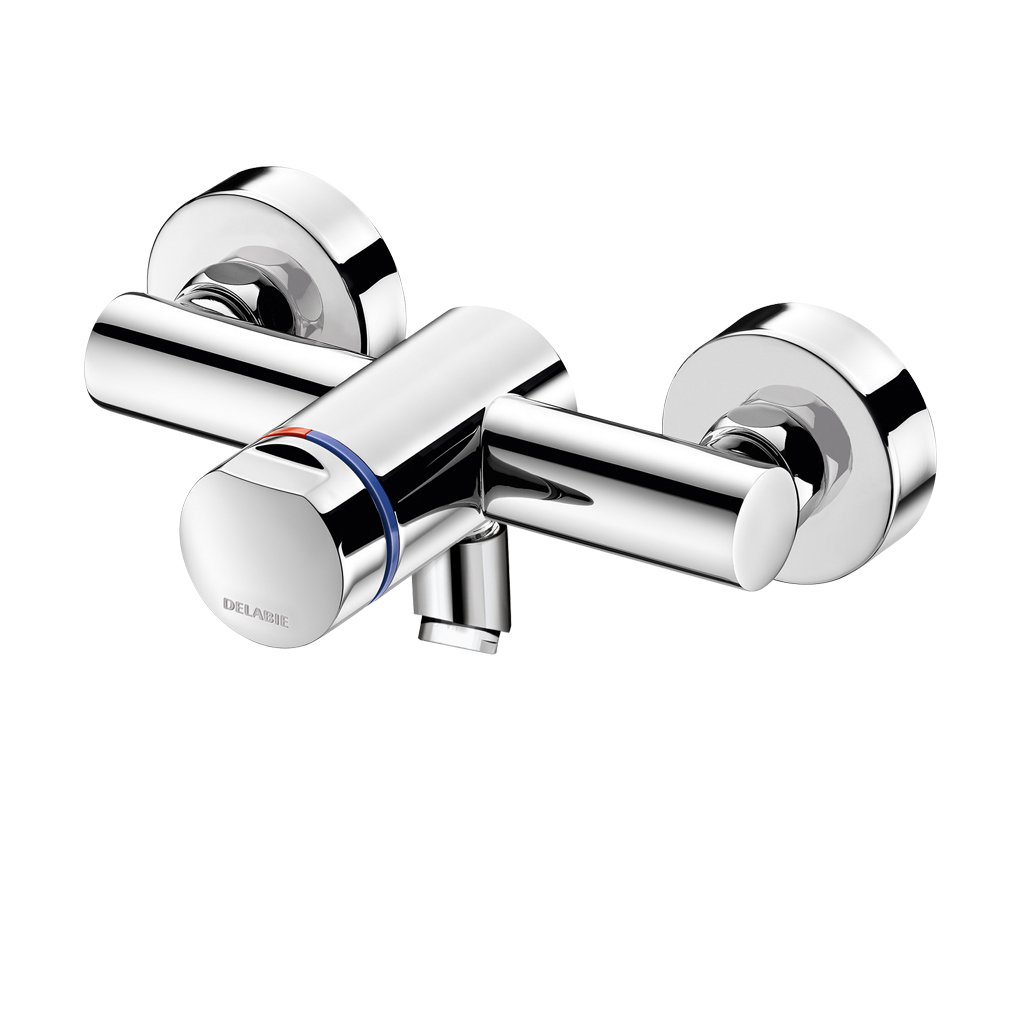

TEMPOMIX 3 time flow mixer

Ref. 794370
Wall-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature adjustment and operation via the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated metal body M½".
Fixed spout.
Filters and non-return valves.
Adjustable maximum temperature limiter.
M½" offset connectors for centres from 130 - 170mm.
Suitable for people with reduced mobility.
30-year warranty.

2025 UK public price excluding VAT: £340.24

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Design

Sleek and slim design

Characteristics

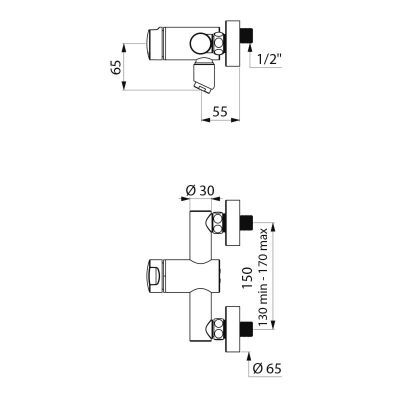

TECHNICAL CHARACTERISTICS

TEMPOMIX 3 time flow mixer

Ref. 794370
Connector M1/2"
Technology Time flow
Width 150mm
Flow rate 3 lpm
Certificates Logo Belgaqua Logo DoP Logo WRAS ACS Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

TEMPOMIX 3 time flow mixer

Ref. 794370

To download one or several documents linked to this product, please select the type of file you require :

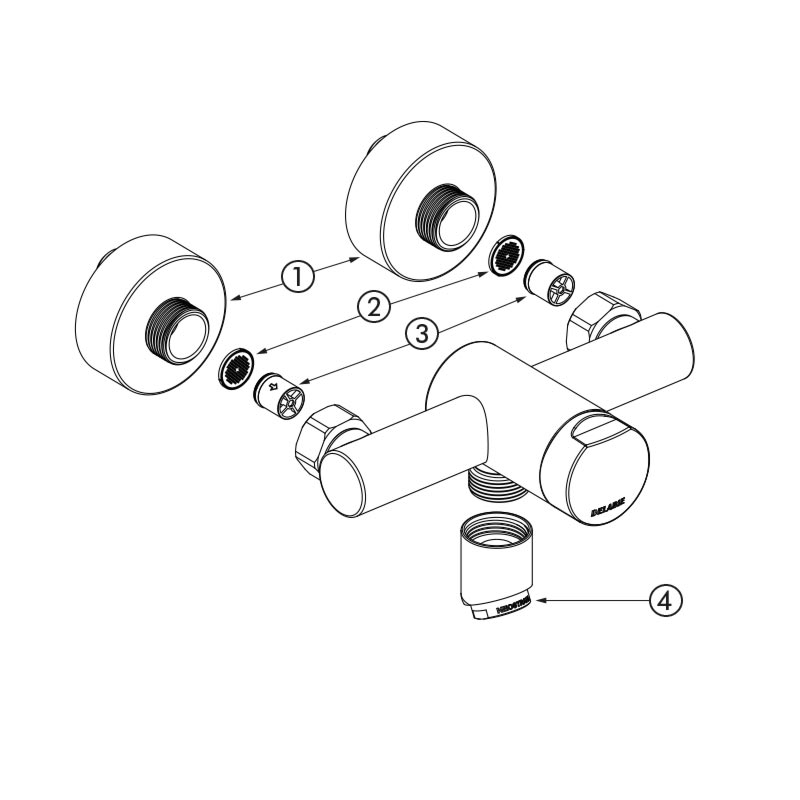

Spare parts

SPARE PARTS

TEMPOMIX 3 time flow mixer

Ref. 794370
1. 856794.2P
Offset union
2. 900015
Non-return valve
3. 921024.2P
Star-shaped flow straightener
