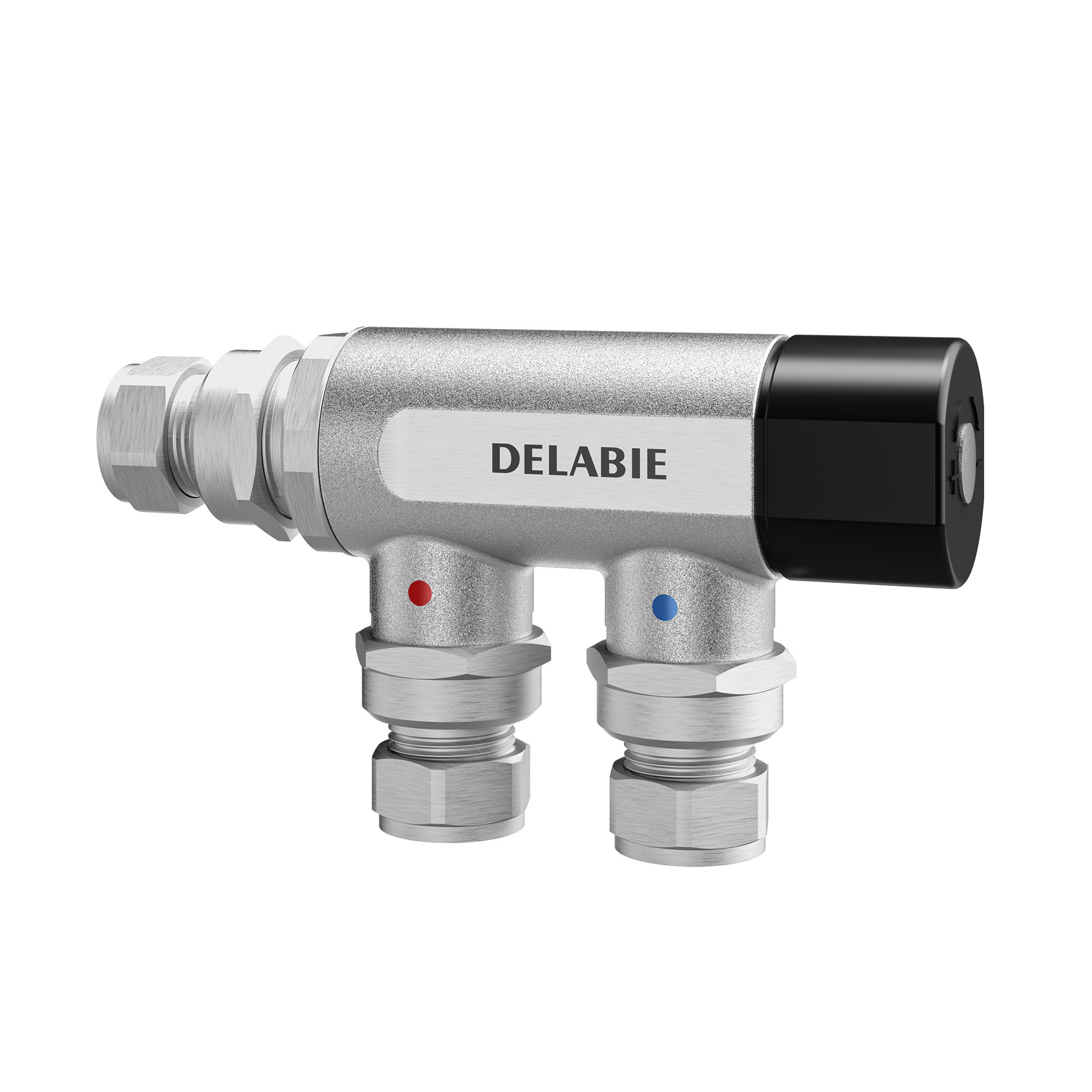

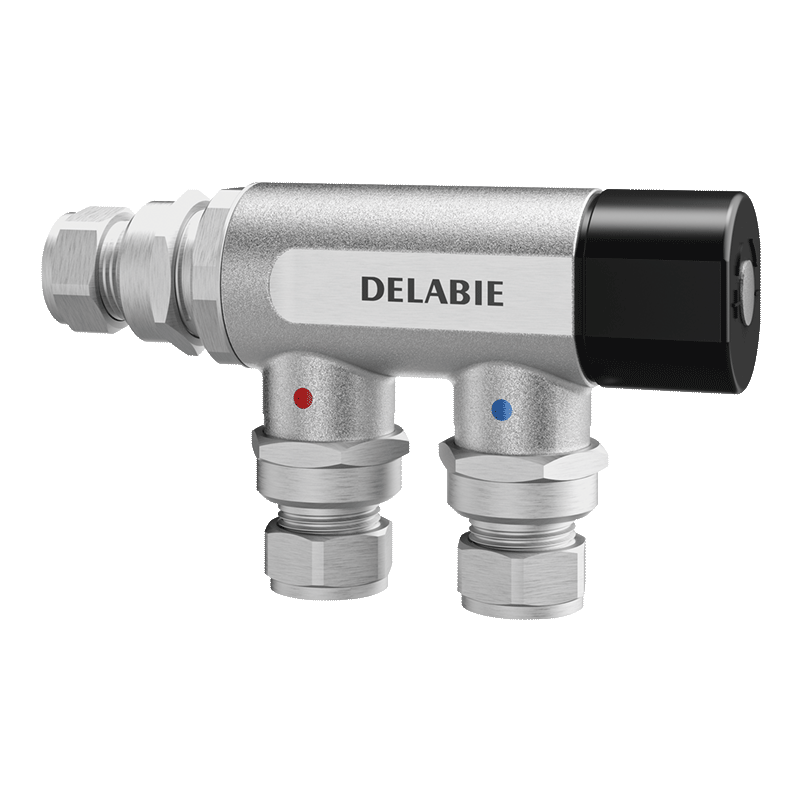

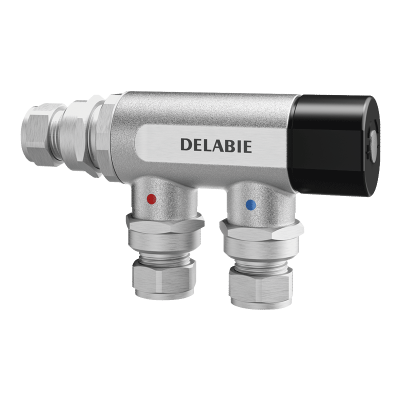

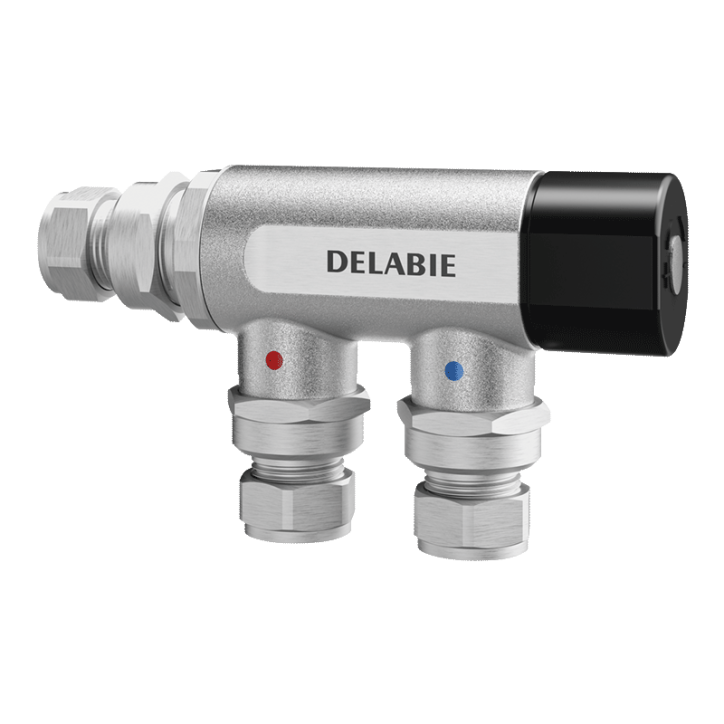

PREMIX COMPACT Thermostatic mixing valve

Ref. 733116
For mixed water 30 - 60°C
See variants See variants
PREMIX COMPACT Thermostatic mixing valve

Presentation

DESCRIPTION

PREMIX COMPACT Thermostatic mixing valve

Ref. 733116
Thermostatic mixing valve for mixed water distribution from 30 - 60°C:
For 1 to11 sanitary points-of-use (depending on the flow rate).
Anti-scalding safety: immediate shut-off if cold or hot water supply fails.
Adjustable temperature from 30 - 60°C, can be blocked by the installer.
Brass body.
Filters and non-return valves.
Minimum flow rate to operate: from 5 - 33 lpm.
Thermal shocks are possible.
M¾" Ø 15mm.
40mm centres.
30-year warranty.

2025 UK public price excluding VAT: £117.97

ADVANTAGES

Sécurité anti-brûlure

Automatic shut-off if cold or hot water fails

Confort - Ergonomie - Déclenchement souple

Temperature stability

Maintenance aisée - Installation aisée

Accessible filters and non-return valves

Maintenance aisée - Installation aisée

Thermo-reactive cell

Characteristics

TECHNICAL CHARACTERISTICS

PREMIX COMPACT Thermostatic mixing valve

Ref. 733116

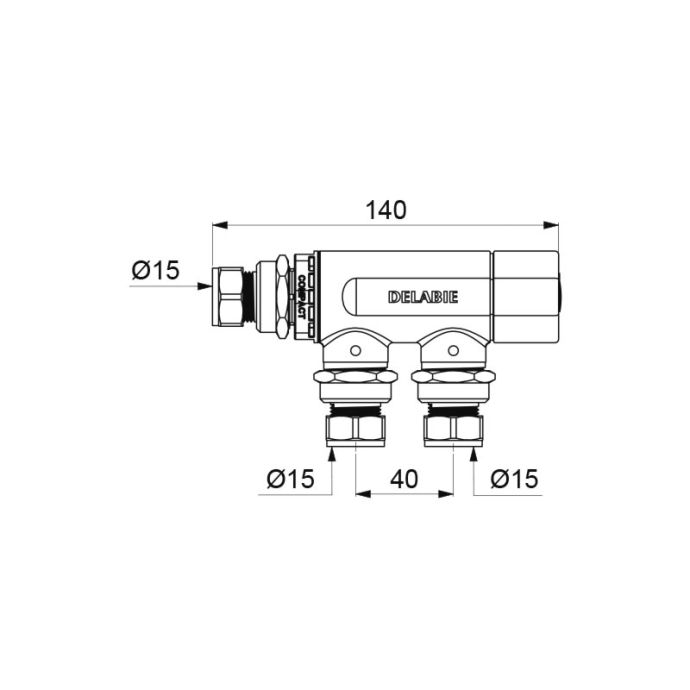

Connector M3/4" Ø 15mm
Technology Thermostatic
Finish Nickel-plated brass
Certificates WRAS
Warranty 30-Year
Repairability
PREMIX COMPACT Thermostatic mixing valve
Ref. 733116

Downloads

DOWNLOADS

PREMIX COMPACT Thermostatic mixing valve

Ref. 733116

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

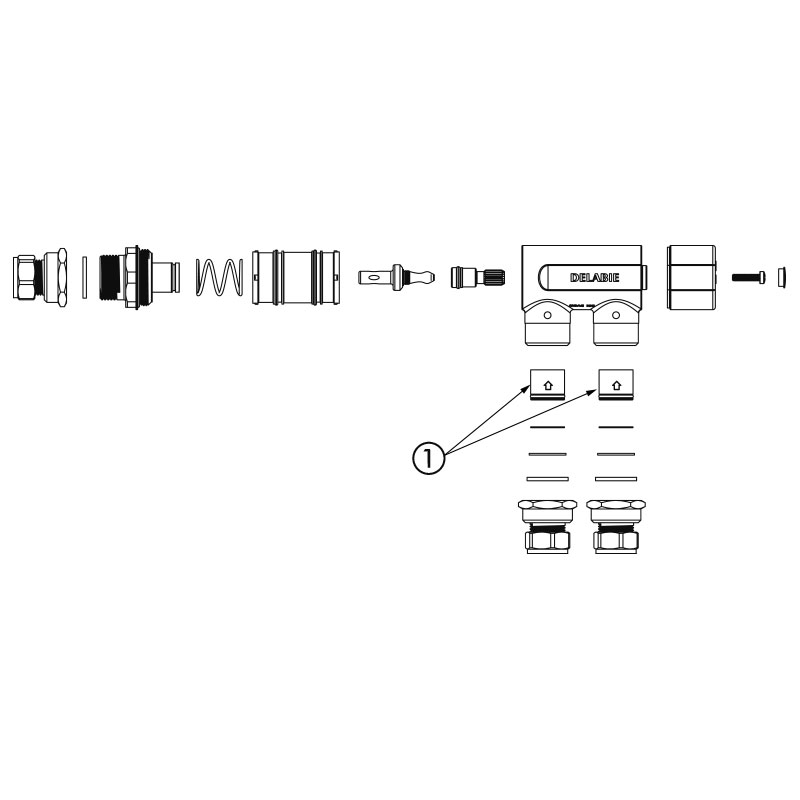

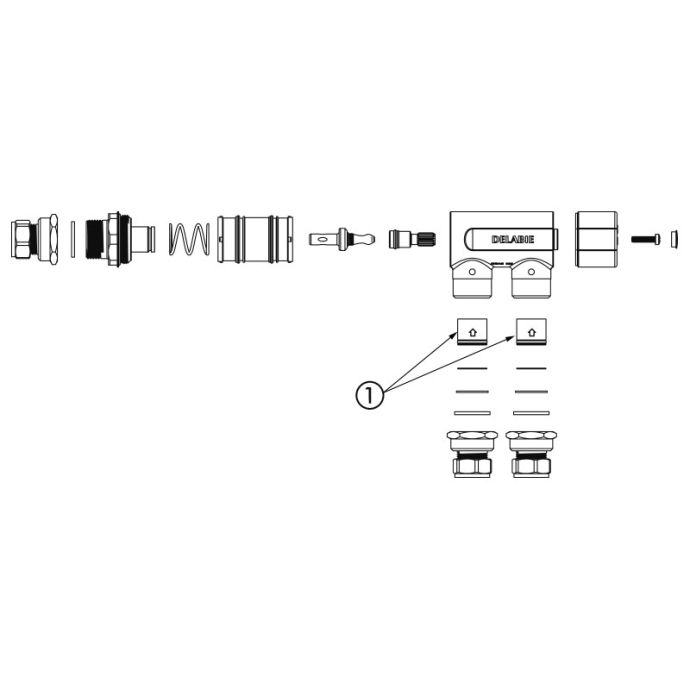

SPARE PARTS

PREMIX COMPACT Thermostatic mixing valve

Ref. 733116
1. 900020
Non return valve

VARIANTS

733015 M½" - For 1 to 11 points-of-use - from 5 to 33 lpm £117.97 excl. VAT
733115 Ø 15mm compression fittings - 33 lpm £117.97 excl. VAT
733020 M¾" - For 1 to 11 points-of-use from 5 to 33 lpm £117.97 excl. VAT
