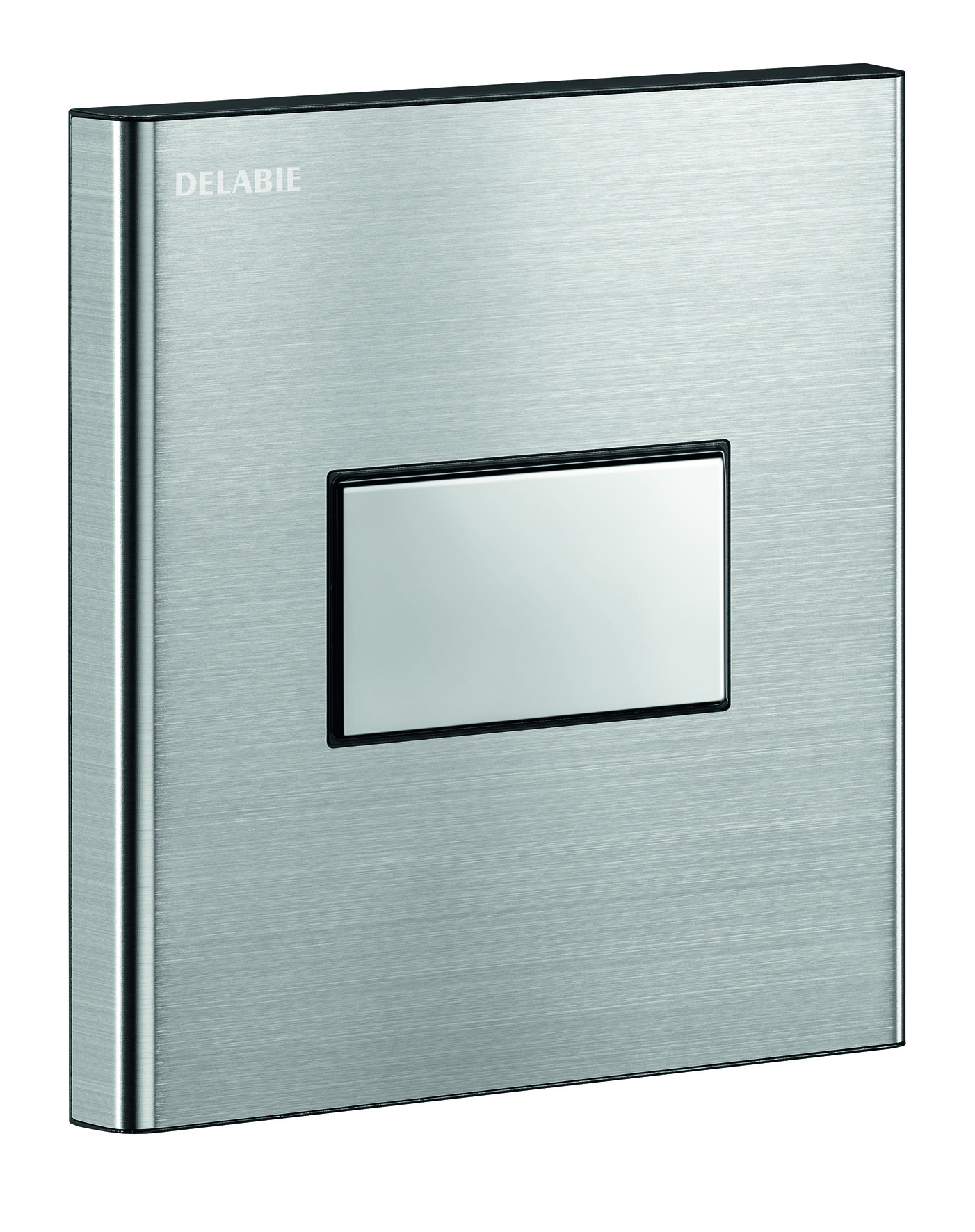

TEMPOFLUX control plate for urinals

Ref. 778707

Time flow valve 7 sec with soft-touch operation - For urinals

£219.24 ^{excl. VAT}

2026 UK public price excluding VAT

1 variant

778700 - Time flow 3s, brass connector ½"

£219.24 ^{excl. VAT}

TEMPOFLUX control plate for urinals

Ref. 778707

Control plate and time flow valve TEMPOFLUX F½", kit 2/2:
Satin finish stainless steel wall plate 145 x 145mm.
Chrome-plated metal button.
Soft-touch operation.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted up to 0.3 L/sec.
Compatible with rain water.
Complies with European standard EN 12541 (class II acoustic level).
Install in waterproof housing with waterproof collar, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.

Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½" or with 778BOX recessed housing.

Advantages

Déclenchement souple

Time flow 7 seconds

Maintenance, behind plate, is easy

TEMPOFLUX control plate for urinals

Ref. 778707

Technology Time flow

Length 145mm

Width 145mm

Finish Satin stainless steel

Certificates

Warranty

Associated products

TEMPOFIX 3 frame system for urinals

Steel frame system for urinals Ø 35mm

Ref. 543006

TEMPOFIX 3 frame system for urinals

Steel frame system for urinals with flexible 1/2"

Ref. 543006D

Recessed waterproof housing for TEMPOFLUX urinal

For urinals with flexibles ½" or Ø 35mm connections

Ref. 778BOX
