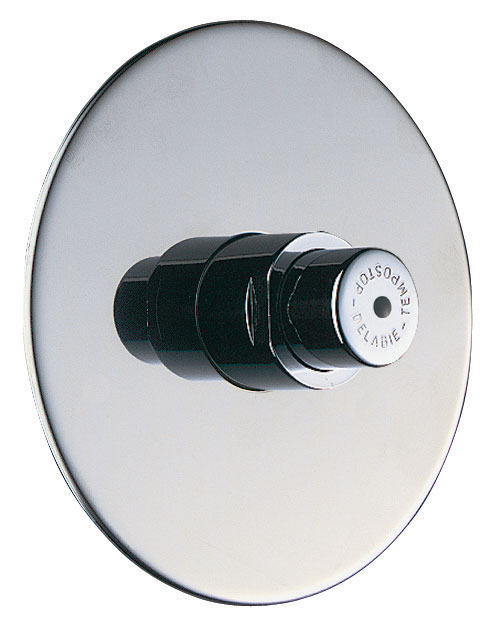

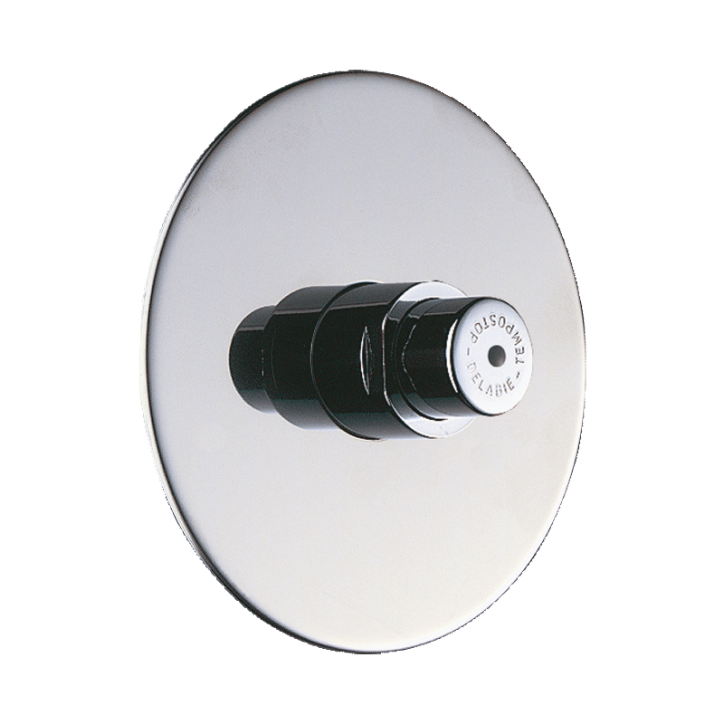

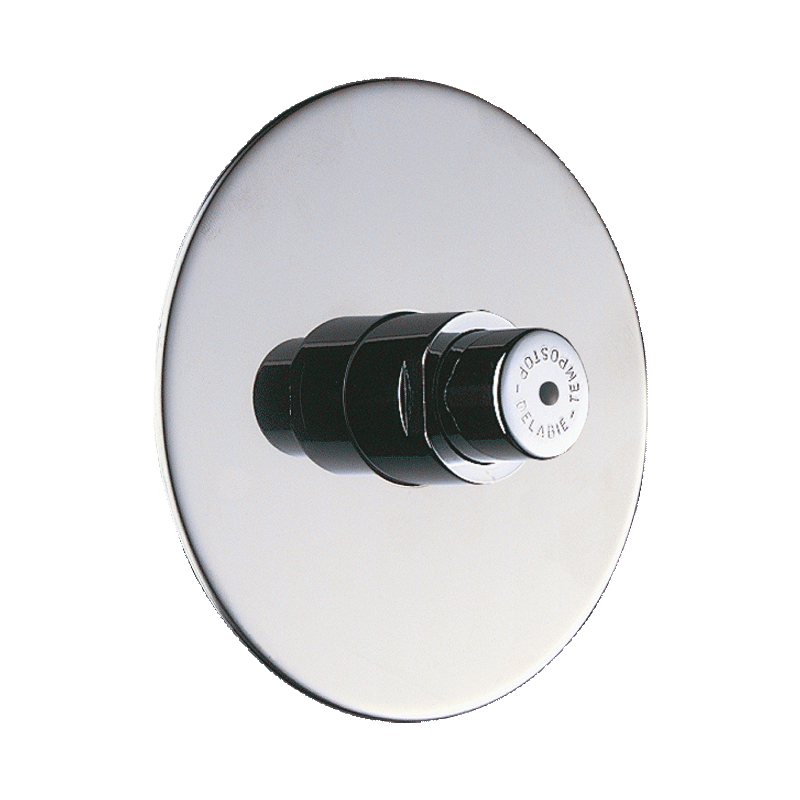

Recessed time flow urinal valve.
For standard or siphon action urinals.
For recessed installation.

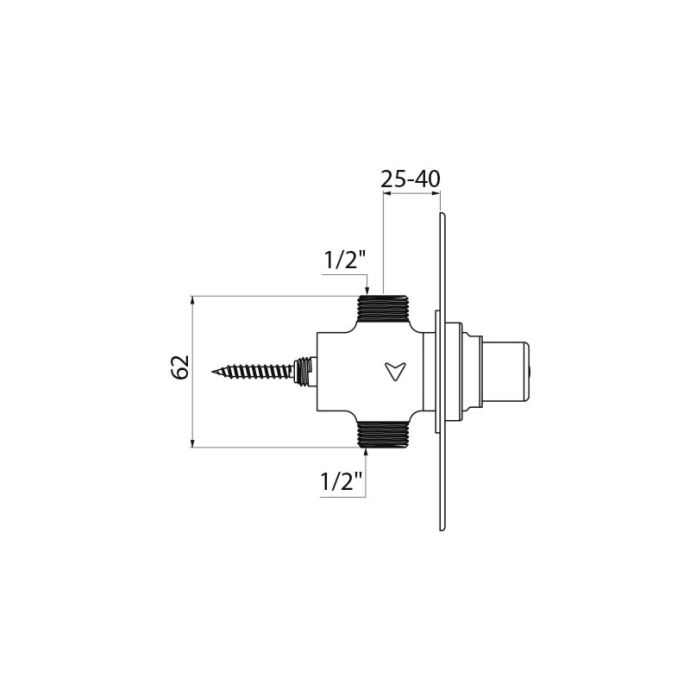

Recessing depth can be adjusted from 20 to 35mm.
Stainless steel wall plate Ø 130mm.
Time flow ~3 seconds.
Flow rate pre-set at 0.15 l/sec. at 3 bar, can be adjusted.
Solid brass body M½".
30-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
Advantages
Eco time flow 3 seconds
Wall recessed installation
Withstands over 500,000 operations
TEMPOSTOP urinal valve
Ref. 777930
Connector
1/2"
Technology
Time flow
Flow rate
0.15 l/sec.
Warranty
TEMPOSTOP urinal valve
Ref.
777930
To download one or several documents linked to this product, please select the type of file you require
