New

TEMPOMATIC 4 urinal valve

Ref. 479416

Electronic with integrated batteries

£451.77 ^{excl. VAT}

2026 UK public price excluding VAT

5 variants

479410 - Valve only, in-line inlet, M½"

£432.19 ^{excl. VAT}

479411 - Valve only, elbow inlet, M½"

£415.87 ^{excl. VAT}

479412 - Complete standard urinal kit, elbow inlet, M½"

£453.39 ^{excl. VAT}

479413 - DELABIE FINO complete standard urinal kit, elbow inlet, M½"

£469.71 ^{excl. VAT}

479414 - DELABIE DELTA complete standard urinal kit, elbow inlet, M½"

£466.44 ^{excl. VAT}

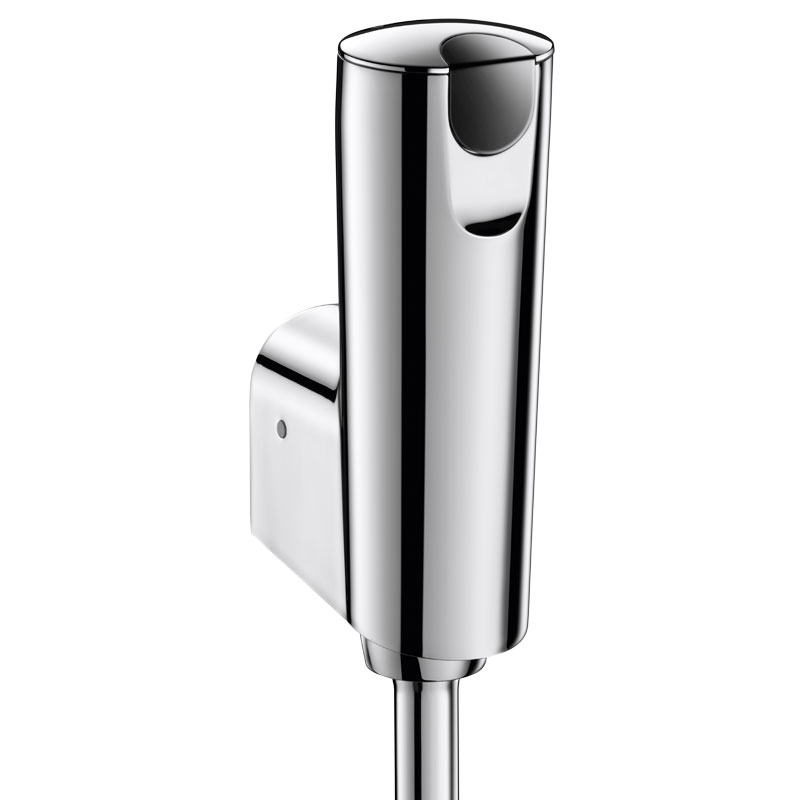

TEMPOMATIC 4 urinal valve

Ref. 479416

Exposed electronic urinal valve with integrated batteries:
Battery-operated with integrated CR 123 6V Lithium batteries.
For wall-mounted, exposed installation.
Reduced-stagnation solenoid valve and electronic unit integrated into the valve body.
Shockproof infrared presence detection sensor.
Detection delay is 10 sec.
3 programmes (rinsing volume adjustable in accordance to the type of urinal).
High-frequency mode (exclusive to DELABIE):
- short rinse after each user
- complementary rinse after busy period.
Hygienic duty flush, every 24hr after last use, prevents vacuums in the siphon.
Compatible with rain water.
Flow rate 0.15 L/sec. at 3 bar, can be adjusted.
Integrated stopcock and flow rate adjuster.
One-piece chrome-plated metal body.
M½" connection.
Angled for recessed supply with Ø 35mm neck tube.
For non-standard urinals: 30mm gap from wall.
Suitable for people with reduced mobility.
30-year warranty.

Ideal for replacing old installations:
Can easily be installed where there was previously a time flow urinal.

Advantages

Total hygiene: no manual contact

High-frequency mode

Batteries integrated into the valve body

Hygienic duty flush

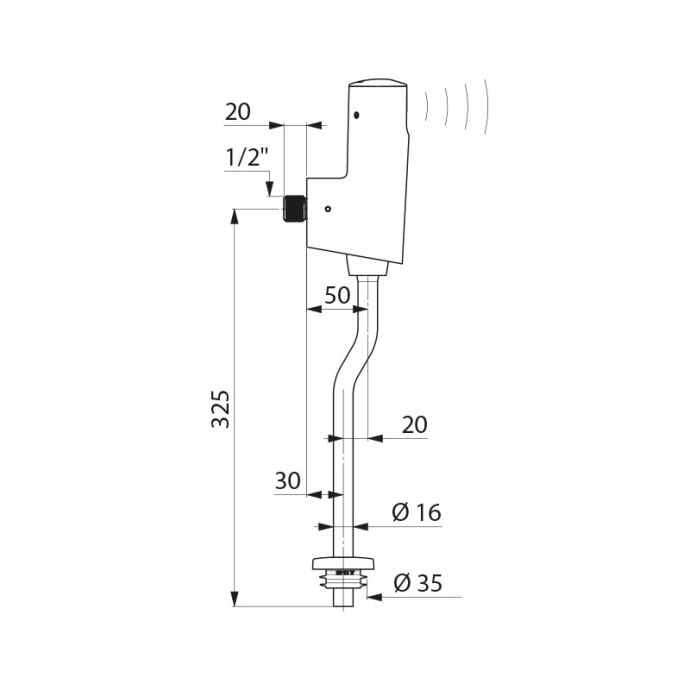

TEMPOMATIC 4 urinal valve

Ref. 479416

Supply 6V batteries

Connector M½"

Technology Electronic

Height 450mm

Depth 85mm

Flow rate 0.15 l/sec

Width to the wall 50mm

Certificates

Warranty

Associated products

SIPHURINOIR

Siphon with vertical outlet

Ref. 771000

Adjustable height floor trap

For tiles or concrete floors

Ref. 683001UK

Floor trap

For soft or vinyl floors

Ref. 683002UK
