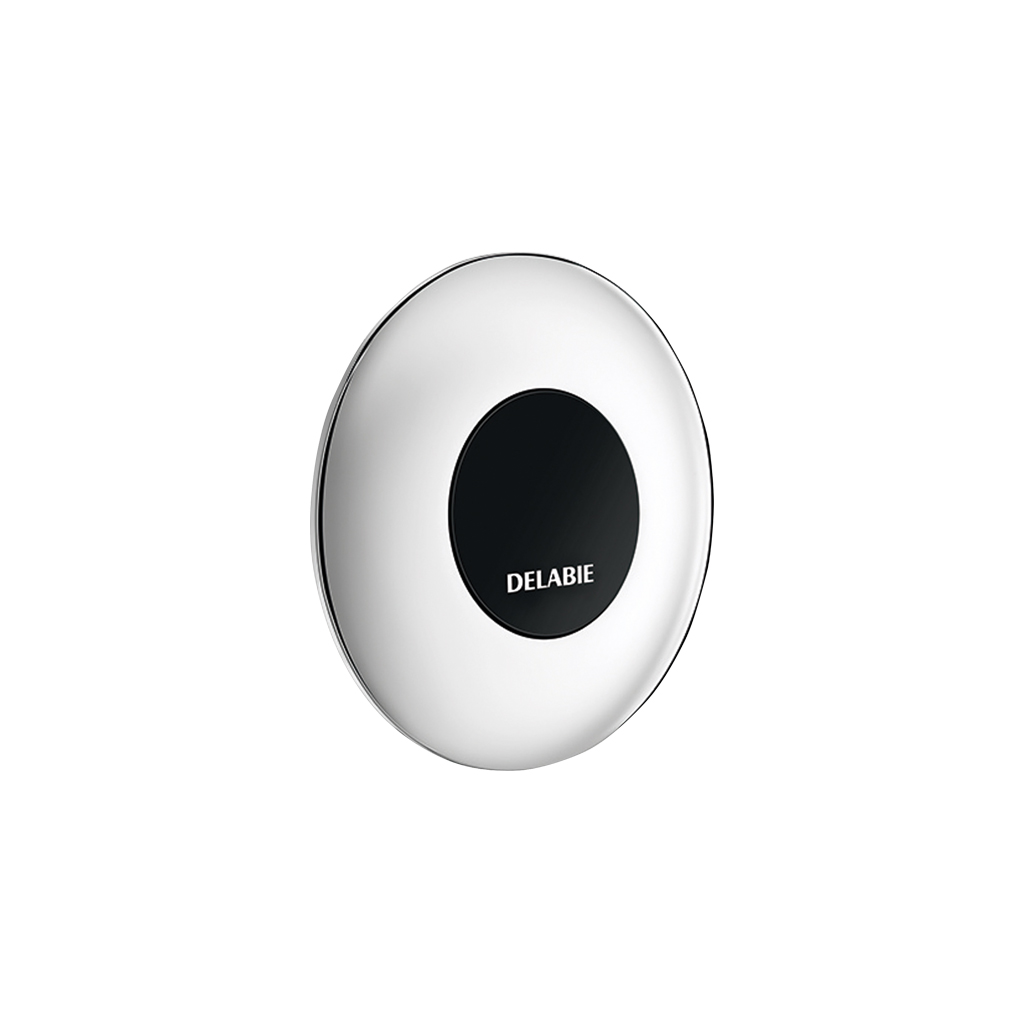

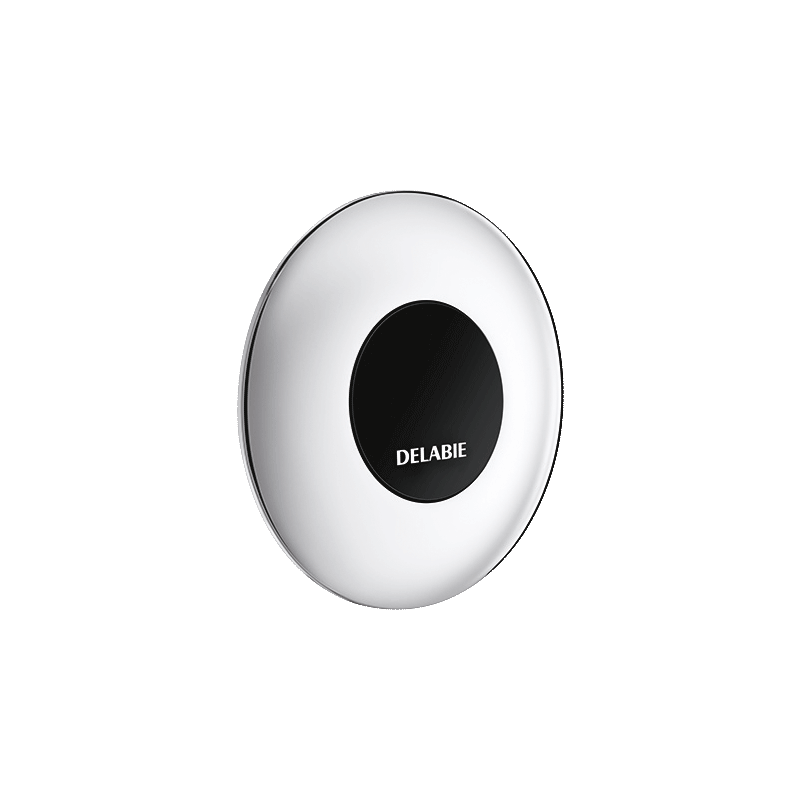

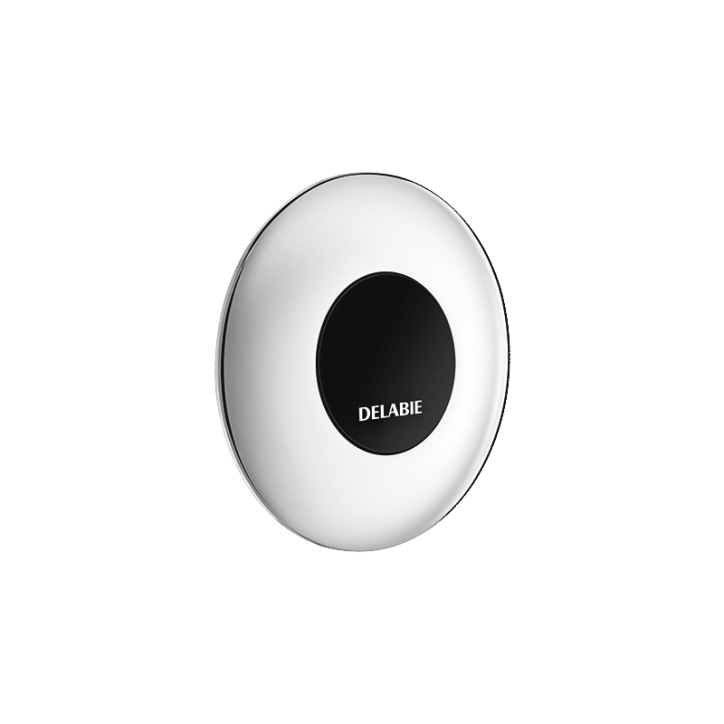

TEMPOMATIC urinal valve

Ref. 428150

Electronic mains supply

£466.33 ^{excl. VAT}

2026 UK public price excluding VAT

1 variant

428200 - Mains supply 12V, for walls ≤ 255mm

£474.82 ^{excl. VAT}

TEMPOMATIC urinal valve

Ref. 428150

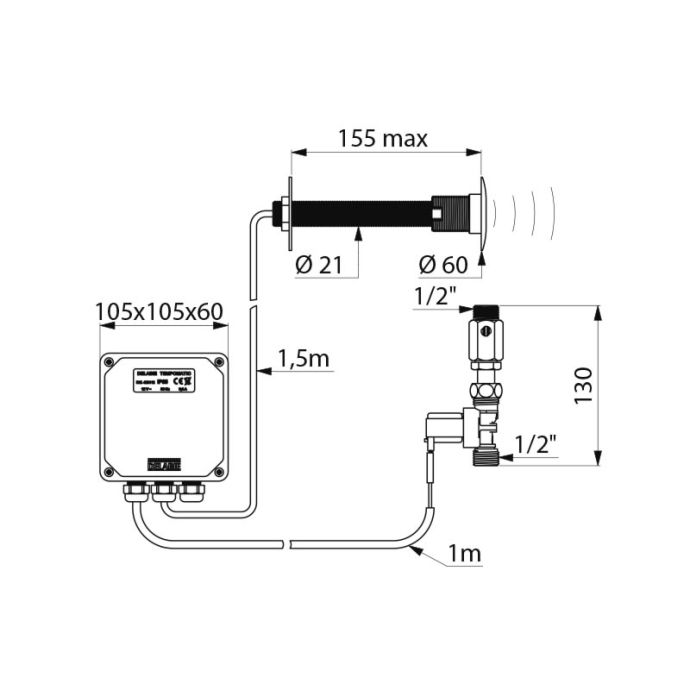

Cross wall electronic urinal valve:
Mains supply, electronic control unit 12V with solenoid valve, filter and stopcock M½".
Cross wall installation for walls ≤ 155mm.
Shock-resistant infrared presence detector.
Detection distance, time flow and flow rate can be adjusted during installation.
Order the 230/12V transformer separately.
Presence detection delay is 3 sec.
Automatic pre-rinse possible.
Time flow 3 seconds, can be adjusted from 3 - 12 sec.
Hygienic duty flush every 24 hours after last use, prevents vacuums.
Flow rate 0.3 L/sec. at 3 bar pressure, can be adjusted.
Wall plate flush to the wall.
Threaded rods can be cut-to-size.
Compatible with rain water.
Suitable for people with reduced mobility.
30-year warranty.

Advantages

Total hygiene: no manual contact

ECO time flow set at 3 seconds

Cross wall installation

Hygienic duty flush

TEMPOMATIC urinal valve

Ref. 428150

Supply 12V mains supply

Connector ½"

Technology Electronic

Length 155mm

Flow rate 0.3 l/sec.

Certificates

Warranty

Associated products

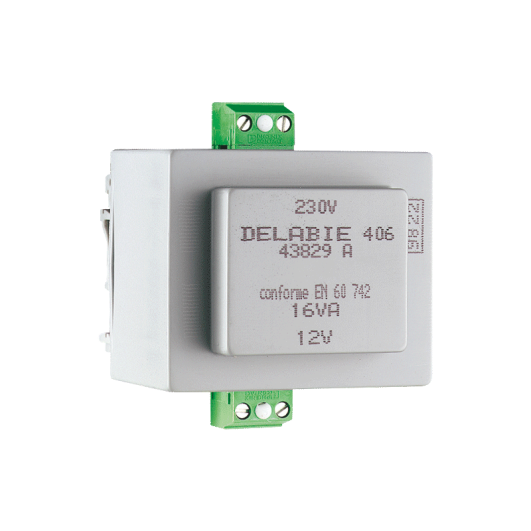

Transformer

Without housing

Ref. 406000

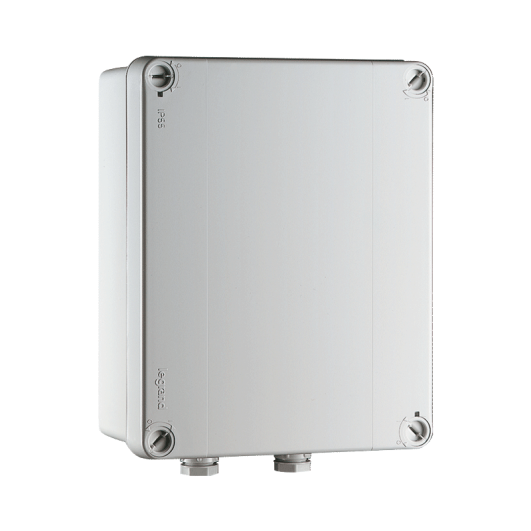

Transformer

In waterproof recessing housing

Ref. 406220

Adjustable height floor trap

For tiles or concrete floors

Ref. 683001UK
