Flush system without cistern: directly connected to pipework.

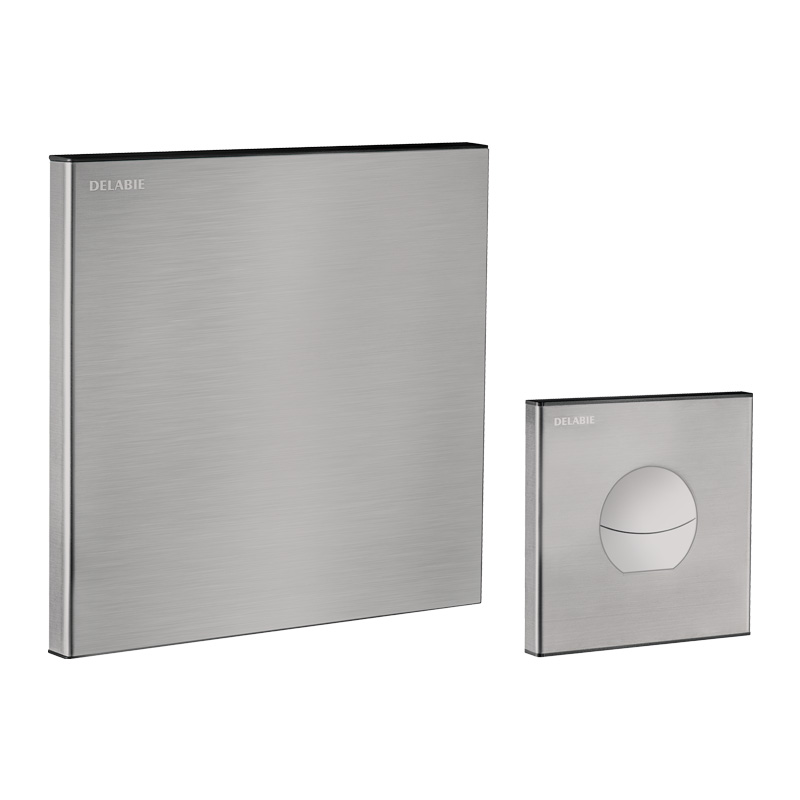

Satin stainless steel access plate to mechanism 186 x 186mm.
Satin stainless steel time flow control plate and chrome-plated buttons 90 x 90mm.
Control plate is installed manually via hidden screws.
Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection to the outside and maintenance from the front.
- Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock and flow rate adjustment are integrated and accessible from the front.
- Cartridge and filter are accessible from the front.
- TEMPOFLUX 3 F¾" valve compatible with rain water.
- Backflow prevention device inside the housing.
Soft-touch operation.
AB anti-blocking system: water will flow only when the push-button is released.
3L/6L dual flush can be adjusted to 2L/4L.
Outlet connection for PVC tube Ø26/32mm.
Acoustic level complies with European standard EN 12541 class II.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans without flow rate regulation.
Suitable for people with reduced mobility
30-year warranty.
