TEMPOFLUX 1 direct flush valve

Ref. 761627

Time flow direct flush WC valve

£268.39 ^{excl. VAT}

2026 UK public price excluding VAT

Ref. 761627

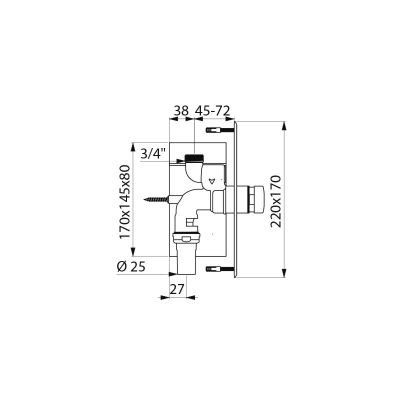

Recessed time flow valve for direct flush:

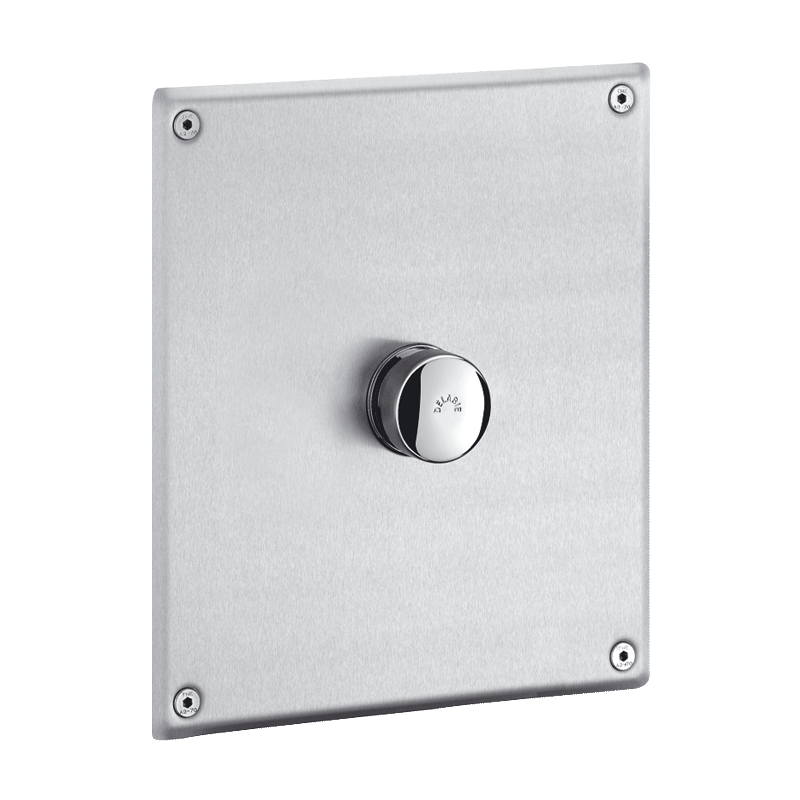

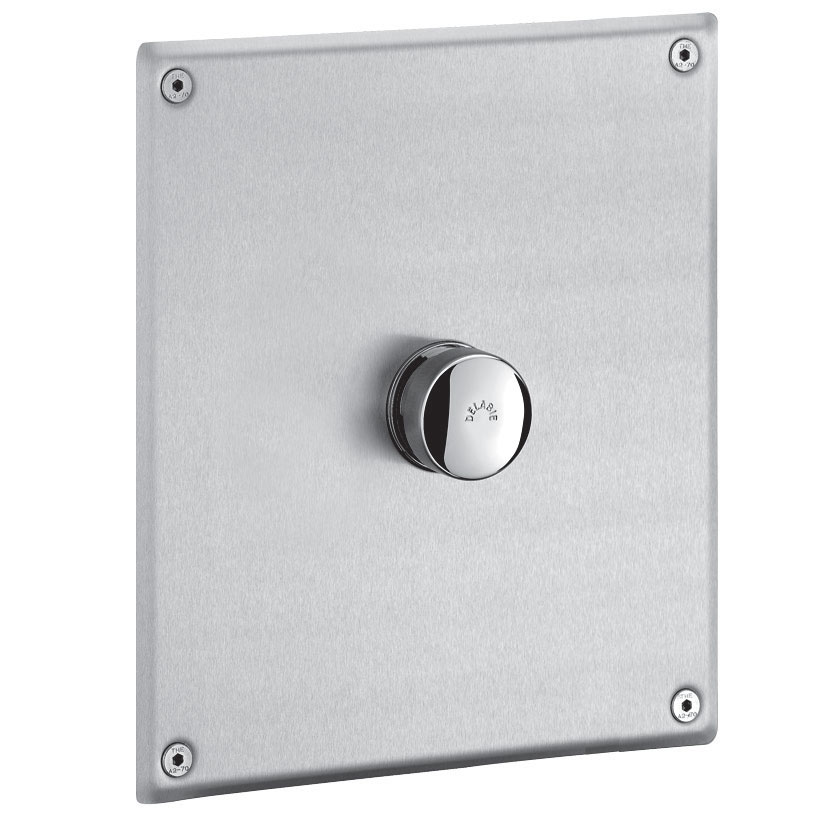

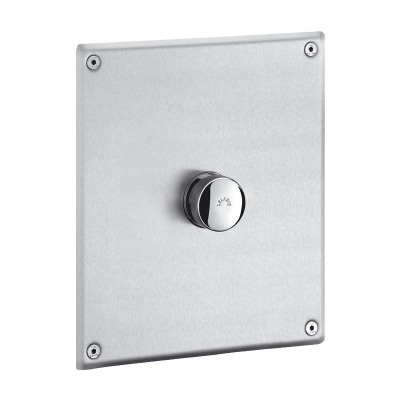

Stainless steel control plate 220 x 170mm.
Multipurpose recessing housing.
Soft-touch operation.
Time flow ~7 seconds.
Vacuum breaker.
Integrated stopcock and flow/volume rate adjuster.
Solid brass body and chrome-plated push-button.
In-line inlet M¾".
Outlet connection for PVC tube Ø 26/32mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Compatible with rain water.
Suitable for people with reduced mobility.
30-year warranty.

This model does not have a waterproof recessing housing. The installer must ensure that the recessing area is waterproof and any leaks or condensation can drain away (see installation guide).

Advantages

No cistern: no stagnant water

Wall recessed installation

Powerful flush and immediately available

Direct flush reduces the risk of leaks

TEMPOFLUX 1 direct flush valve

Ref. 761627

Connector 3/4"

Height 220mm

Width 170mm

Certificates

Warranty

Discover the advantages of direct flush WC

WC direct flush system, a public revolution
