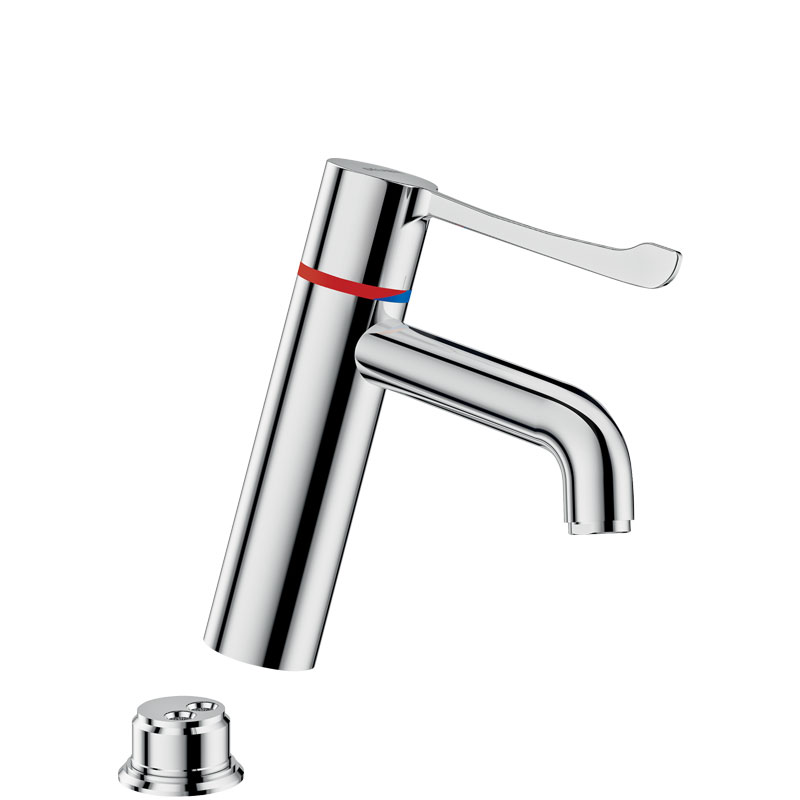

Deck-mounted thermostatic SECURITHERM basin mixer.
Sequential thermostatic mixer: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.

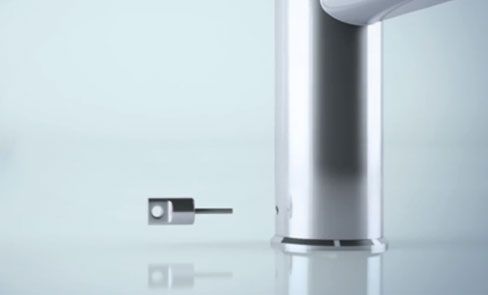

BIOCLIP: mixer is easy to remove for cleaning and disinfection.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Single hole mixer with curved spout H. 95mm L. 120mm fitted with a hygienic flow straightener with no impurity retention and thermal shock-resistant.
Scale-resistant sequential thermostatic cartridge for single control of flow rate and temperature.
Cold water temperature adjusts up to 40°C with temperature limiter set at 40°C.
Thermal and chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
No manual contact thanks to Hygiene control lever L. 146mm.
No pop-up waste.
Supplied with PEX flexibles F3/8" with chrome-plated brass stopcocks.
Fixing reinforced by 2 stainless steel rods.
Ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.
Also available with copper tails.
Advantages
Maximum hygiene: mixer with no non-return valves
Hygiene: can be removed for internal cleaning
SECURITHERM: Optimal anti-scalding safety
Sequential: opens and closes with cold water
SECURITHERM BIOCLIP thermostatic basin mixer
Ref. H9605
Connector
3/8"
Technology
SECURITHERM BIOCLIP sequential thermostatic mixer
Drop height
95mm
Spout length
120mm
Flow rate
5 lpm at 3 bar
Temperature limiter
Yes
Finish
Chrome-plated brass
Certificates
Warranty
Repairability
SECURITHERM BIOCLIP thermostatic basin mixer
Ref.
H9605
To download one or several documents linked to this product, please select the type of file you require
