Ref. 517000
With horizontal outlet
£67.40 excl. VAT
2026 UK public price excluding VAT
10 variants
611 -
HYGIÉNA basin waste - Chrome-plated finish - tall model
621 -
Chrome-plated hygienic waste without water level
621W -
White hygienic waste without water level
6110 -
HYGIÉNA washbasin waste -Chrome-plated finish - short model
6110BK -
Matte black finish - short model
581000 -
ON/OFF basin waste with stainless steel valve
580000 -

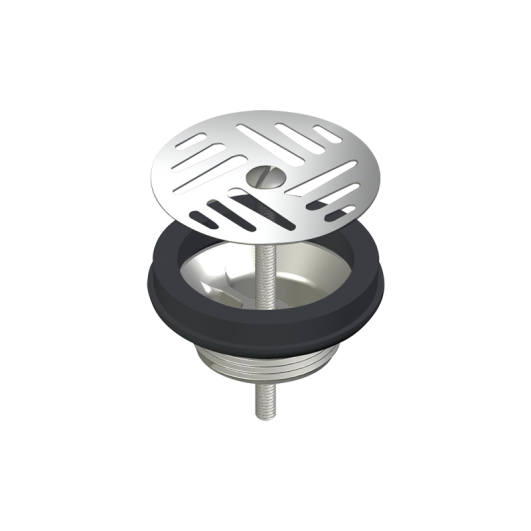

Basin or urinal waste trap w. stainless steel grid for hole max Ø54mm
620 -
Chrome-plated brass waste with valve M11/4"
621001.2P -
Membrane and cup assembly - For Ref.621
621001W.2P -
Dome and membrane assemly - For Ref. 621W
Siphon

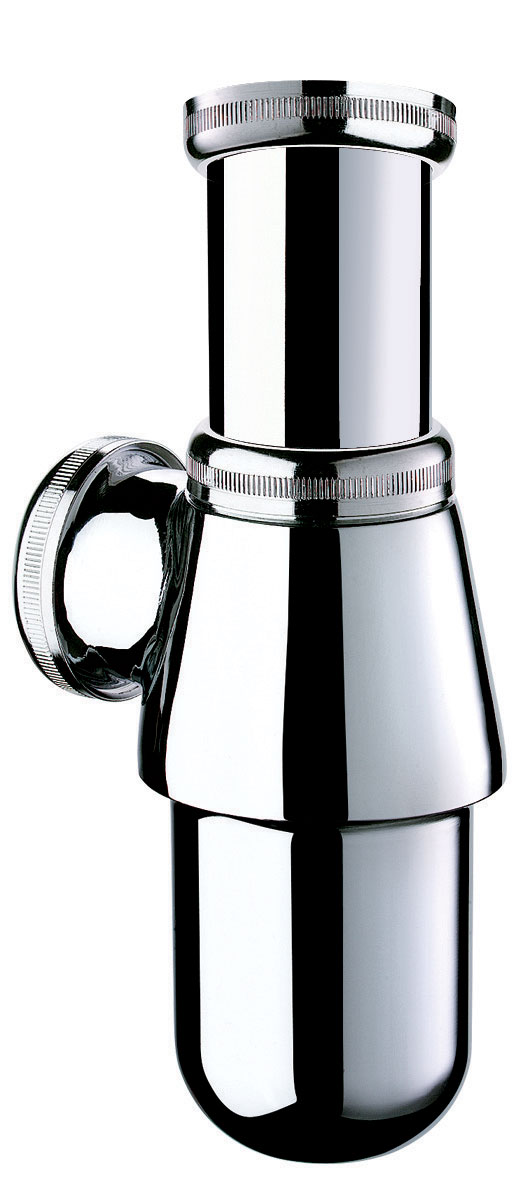

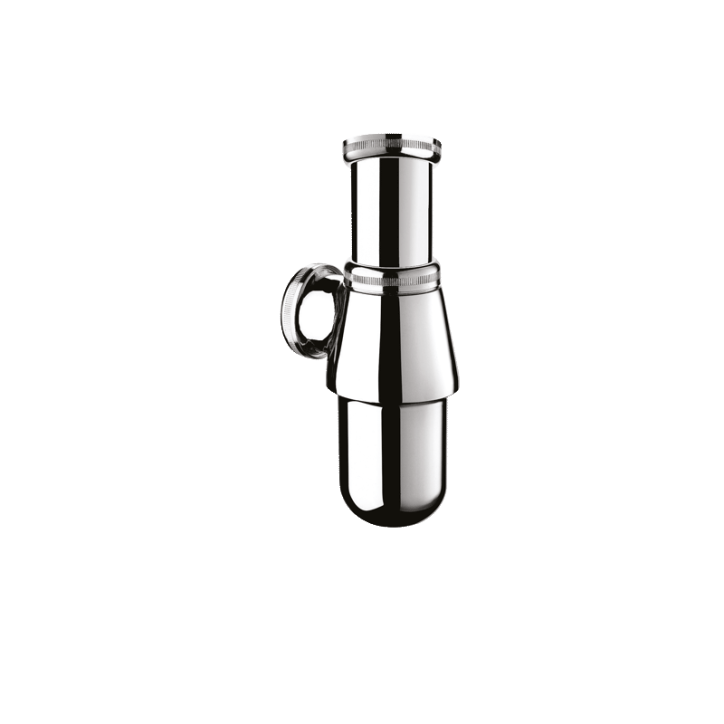

Ref. 517000

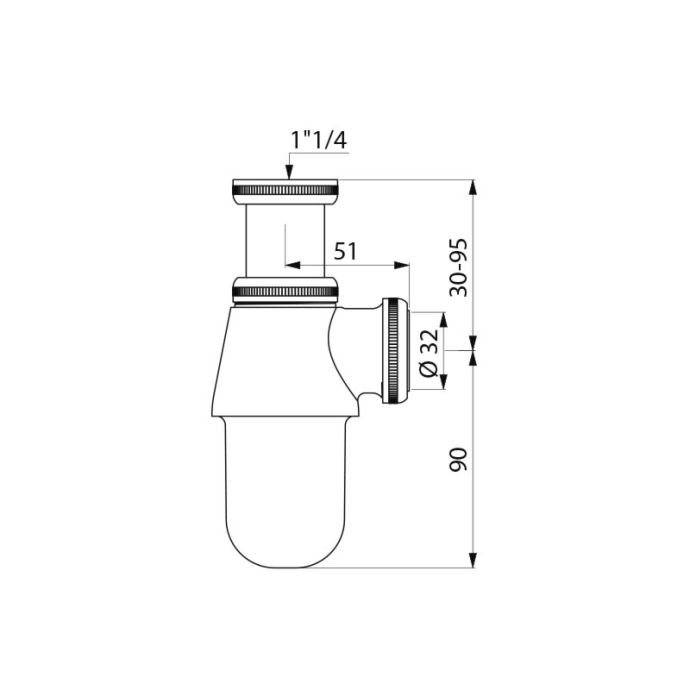

Trap for urinals or basins with horizontal outlet:
Inlet F1¼".
Horizontal outlet Ø 32mm with nut.
Water level 50mm.
Chrome-plated brass.
30-year warranty.
Inlet F1¼".
Horizontal outlet Ø 32mm with nut.
Water level 50mm.
Chrome-plated brass.
30-year warranty.
Advantages
Siphon
Ref. 517000
Connector
1¼"
Height 120-185mm
Warranty
Height 120-185mm
Warranty
Siphon
Ref. 517000
