SECURITHERM EP pressure-balancing shower mixer

Ref. 2739EP
Wall-mounted single control mixer, sculptured lever
SECURITHERM EP pressure-balancing shower mixer +

Presentation

DESCRIPTION

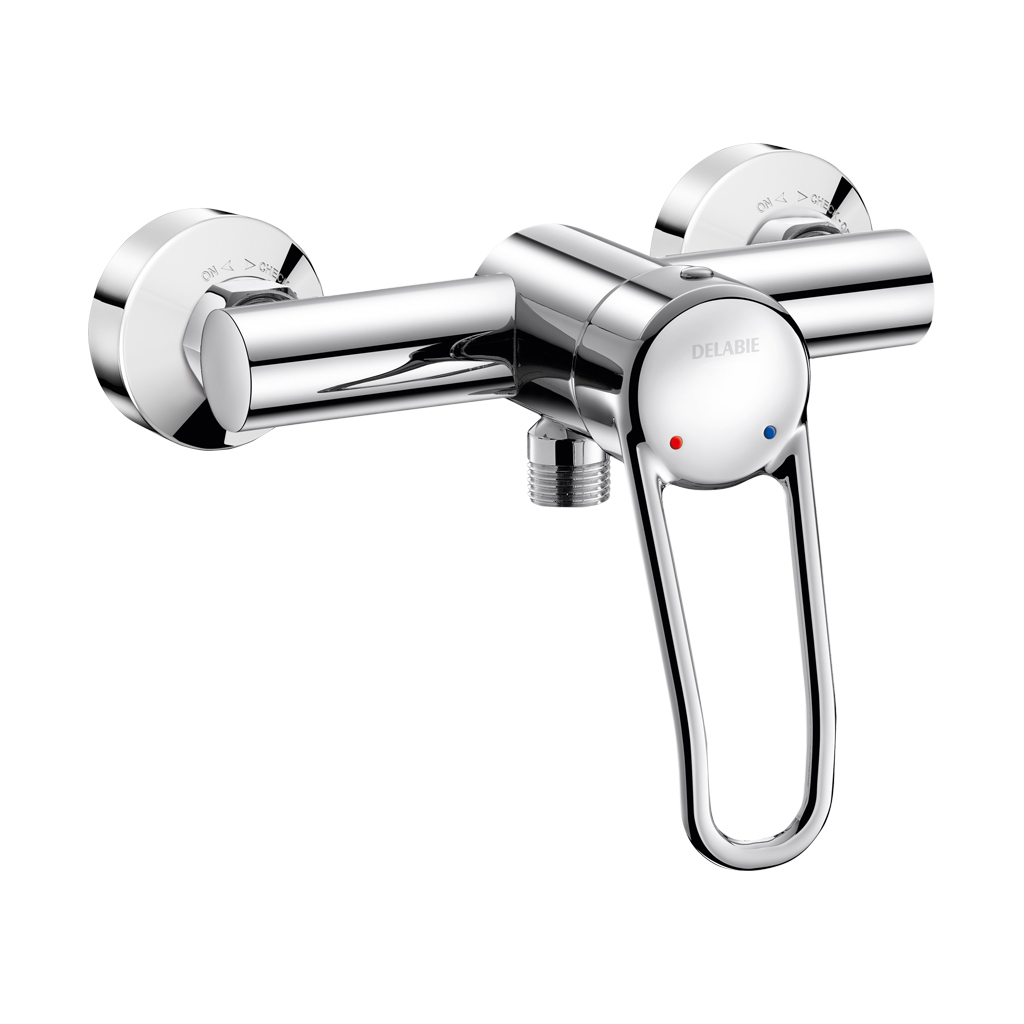

SECURITHERM EP pressure-balancing shower mixer

Ref. 2739EP
Wall-mounted single hole mechanical shower mixer.
Wall-mounted single hole mixer with Securitouch thermal insulation to prevent burns.

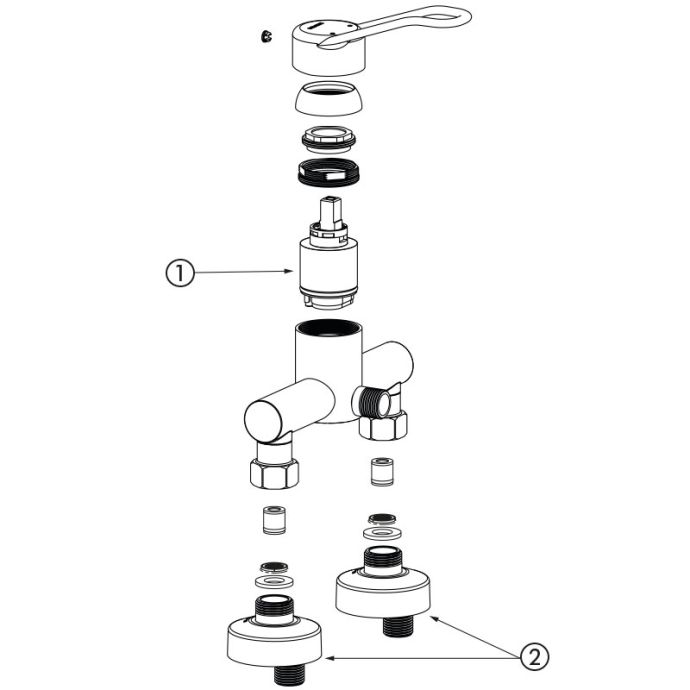

Ø 40mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Anti-scalding safety: HW flow is reduced if CW supply fails (and vice versa).
Constant temperature regardless of variations in pressure and flow rate.
Body with smooth interior and low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK connectors, M1/2" M3/4", ideal for hospitals.
Filters and non-return valves.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, nursing homes, hospitals and clinics.
Suitable for people with reduced mobility.
10-year warranty.

2021 UK public price excluding VAT: £275.34

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW fails

Confort - Ergonomie - Déclenchement souple

Pressure-balancing: constant temperature

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Confort - Ergonomie - Déclenchement souple

Ergonomic: sculptured lever is easy to grip

Characteristics

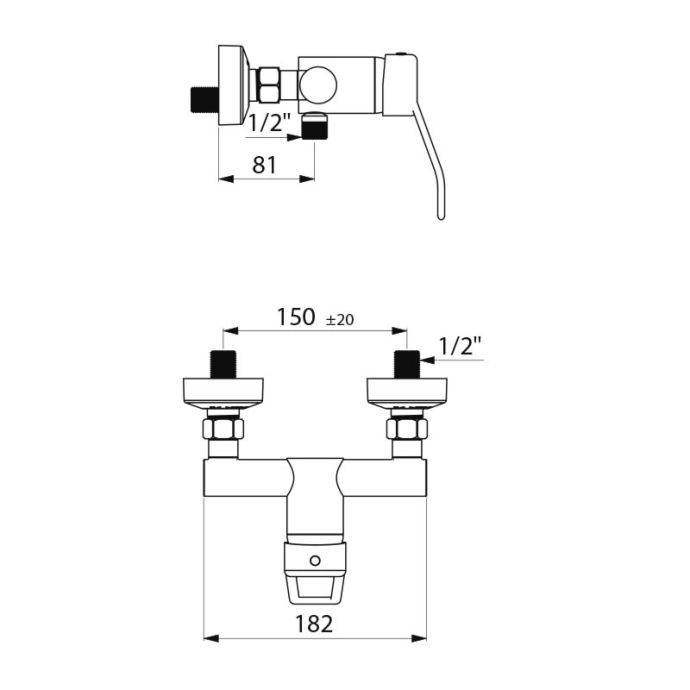

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing shower mixer

Ref. 2739EP
Connector M1/2"
Technology SECURITHERM with pressure-balancing, Securitouch
Height 140mm
Depth 188mm
Width 182mm
Flow rate 9 lpm
Temperature limiter 39°C
Finish Chrome-plated brass
Certificates Logo ACS Logo Belgaqua Logo WRAS Logo PZH Logo HKWSD Logo DoP
Warranty Garantie 10 ans
