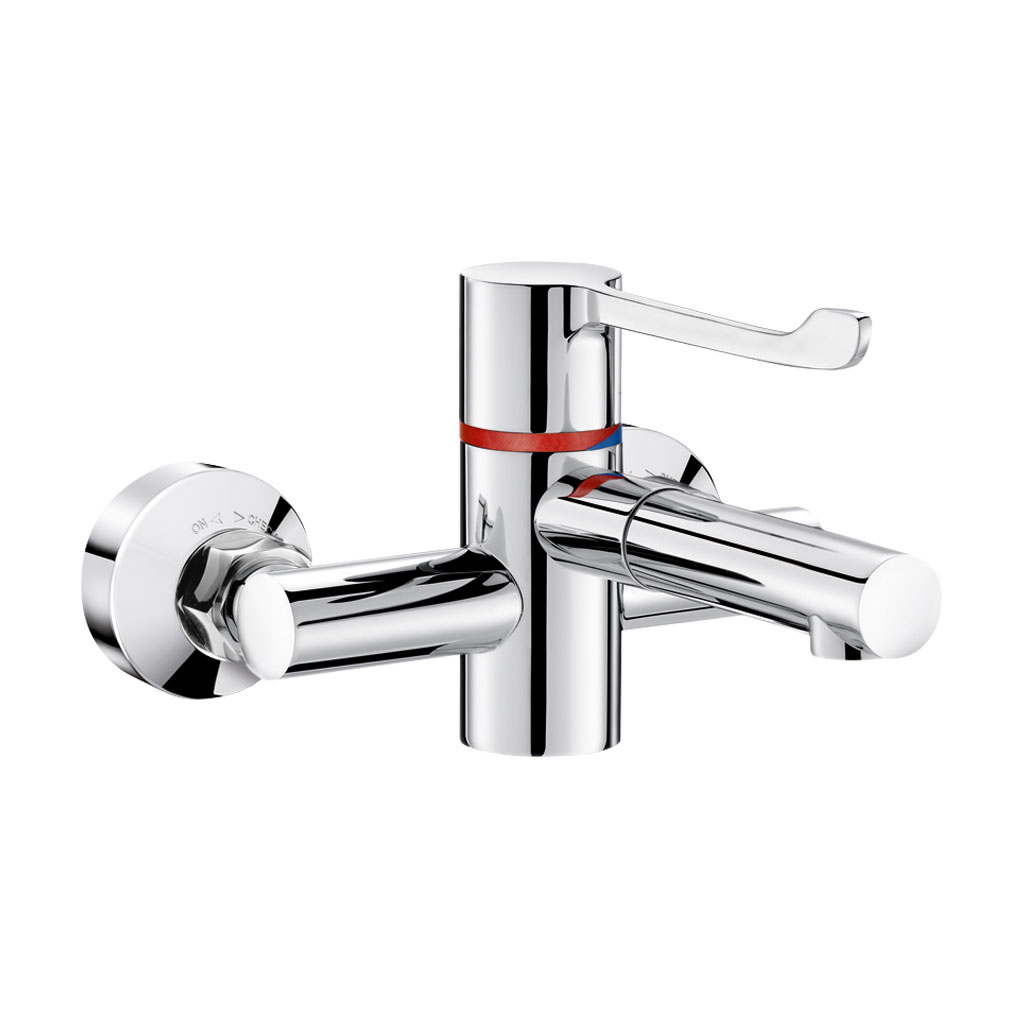

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9614P
Wall-mounted sequential thermostatic mixer
SECURITHERM BIOCLIP thermostatic sink mixer

Presentation

DESCRIPTION

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9614P
Wall-mounted SECURITHERM thermostatic sink mixer.
Thermostatic sequential mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Wall-mounted mixer supplied with 2 stainless steel spouts L. 136mm.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant sequential thermostatic cartridge for sequential control of flow rate and temperature.
Temperature can be adjusted from cold water up to 40°C with temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
Chrome-plated brass body.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 200mm centres, supplied with 2 in-line STOP/CHECK M1/2" M3/4" connectors ideal for hospitals.
Thermostatic mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 10-year warranty.

2023 UK public price excluding VAT: £553.51

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no non-return valves

Robinetterie déclipsable

Removable spout: reduces bacterial development

Sécurité anti-brûlure

SECURITHERM: optimum anti-scalding safety

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9614P

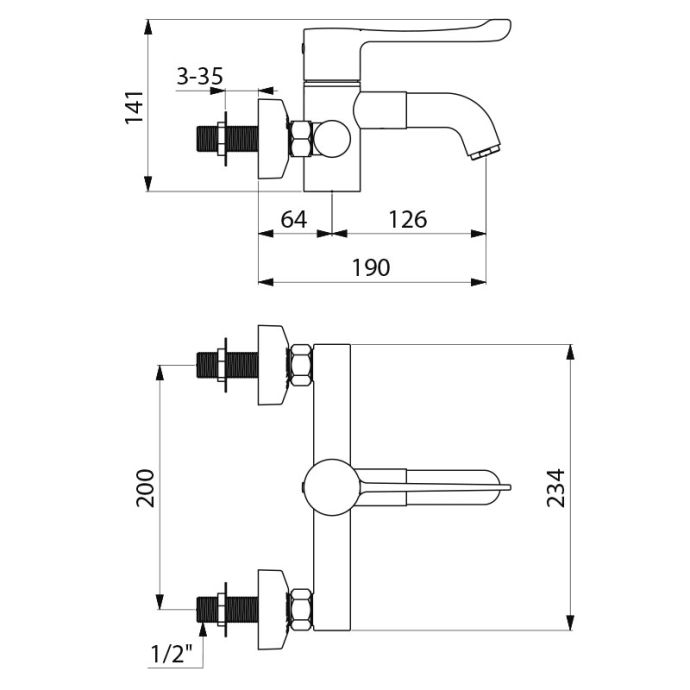

Connector M1/2"
Technology SECURITHERM BIOCLIP sequential mixer
Height 141mm
Width 234mm
Spout length 136mm
Flow rate 7 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates Logo WRAS Logo TMV
Warranty Garantie 10 ans

Downloads

DOWNLOADS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9614P

To download one or several documents linked to this product, please select the type of file you require :

Infection control: mixer with removable spout and body with smooth interior
Infection control: mixer with removable spout and body with smooth interior
Ergonomic: mixer opens and closes sequentially with cold water
Ergonomic: mixer opens and closes sequentially with cold water
