Ref. 20870T1
Tall single hole infrared mixer with stainless steel swivelling spout
£754.09 excl. VAT
2026 UK public price excluding VAT
2 variants
TEMPOMATIC MIX electronic mixer with removable BIOCLIP spout
Ref. 20870T1

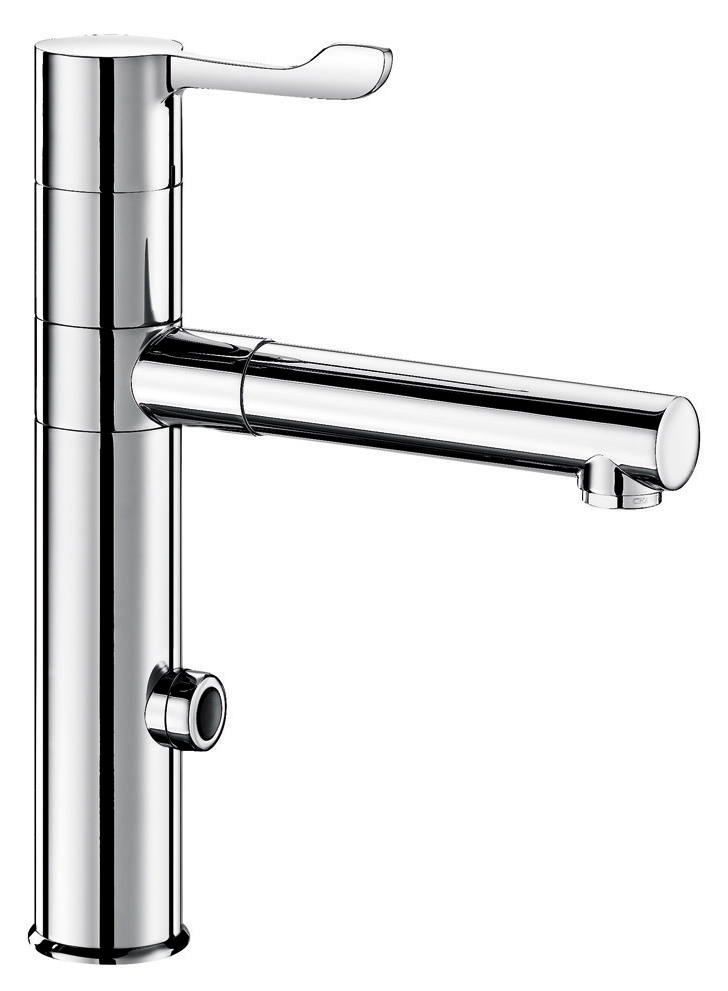

Deck-mounted electronic basin mixer.
Electronic mixer with high, removable, swivelling BIOCLIP spout H. 160mm.
Single hole mixer supplied with 2 removable stainless steel spouts L.183mm Ø 28mm.
Independent IP65 electronic control unit.
Mains supply via 230/12V transformer.
Body and spout with smooth interiors (reduces niches where bacteria can develop).
Adjustable duty flush (pre-set to approx. 60 secs every 24h after last use) to prevent water stagnation in the network in the event of prolonged periods of non-use.
Flow rate limited to 5 lpm at 3 bar.
Shockproof infrared presence detection sensor.
Chrome-plated solid brass body with reinforced fixing via 2 stainless steel rods.
Hygiene lever L. 100mm controls temperature.
PEX flexibles with filters and M3/8" solenoid valve.
Anti-blocking safety.
Solenoid valves upstream of the mixing chamber.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.
Two shut-off options:
- standard mode: timed flow with automatic shut-off.
- ON/OFF mode: user shuts off flow voluntarily after 30 minutes.
Thermal shocks are possible.
Position the sensor to the side of the mixer in the On/Off mode.
Electronic mixer with high, removable, swivelling BIOCLIP spout H. 160mm.
Single hole mixer supplied with 2 removable stainless steel spouts L.183mm Ø 28mm.
Independent IP65 electronic control unit.
Mains supply via 230/12V transformer.
Body and spout with smooth interiors (reduces niches where bacteria can develop).
Adjustable duty flush (pre-set to approx. 60 secs every 24h after last use) to prevent water stagnation in the network in the event of prolonged periods of non-use.
Flow rate limited to 5 lpm at 3 bar.
Shockproof infrared presence detection sensor.
Chrome-plated solid brass body with reinforced fixing via 2 stainless steel rods.
Hygiene lever L. 100mm controls temperature.
PEX flexibles with filters and M3/8" solenoid valve.
Anti-blocking safety.
Solenoid valves upstream of the mixing chamber.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.
Two shut-off options:
- standard mode: timed flow with automatic shut-off.
- ON/OFF mode: user shuts off flow voluntarily after 30 minutes.
Thermal shocks are possible.
Position the sensor to the side of the mixer in the On/Off mode.
Advantages
TEMPOMATIC MIX electronic mixer with removable BIOCLIP spout
Ref. 20870T1
Supply
Mains supply 230/12V
Connector M3/8"
Technology Electronic mixer

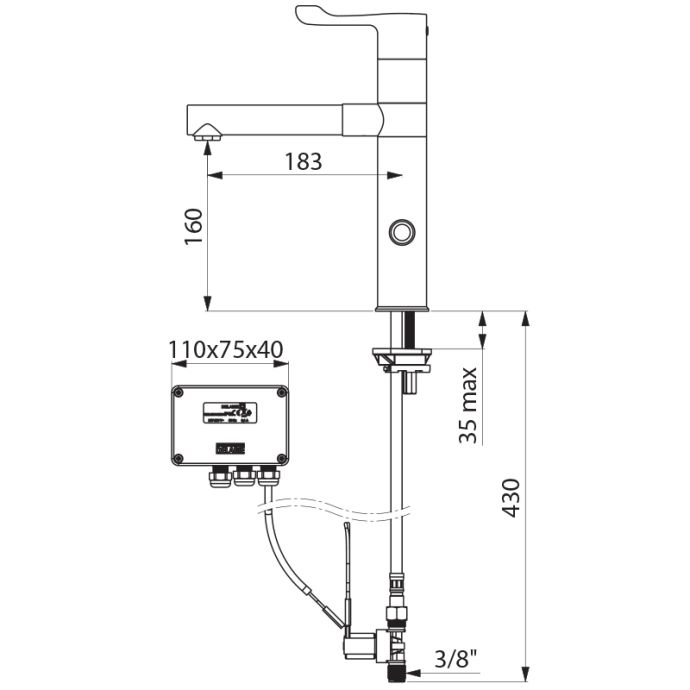

Height 280mm
Drop height 160mm
Spout length 183mm
Flow rate 5 lpm
Finish Chrome-plated brass
Certificates
Warranty
Repairability
Connector M3/8"
Technology Electronic mixer
Height 280mm
Drop height 160mm
Spout length 183mm
Flow rate 5 lpm
Finish Chrome-plated brass
Certificates
Warranty
Repairability
TEMPOMATIC MIX electronic mixer with removable BIOCLIP spout
Ref. 20870T1
To download one or several documents linked to this product, please select the type of file you require
TEMPOMATIC MIX electronic mixer with removable BIOCLIP spout
Ref. 20870T1

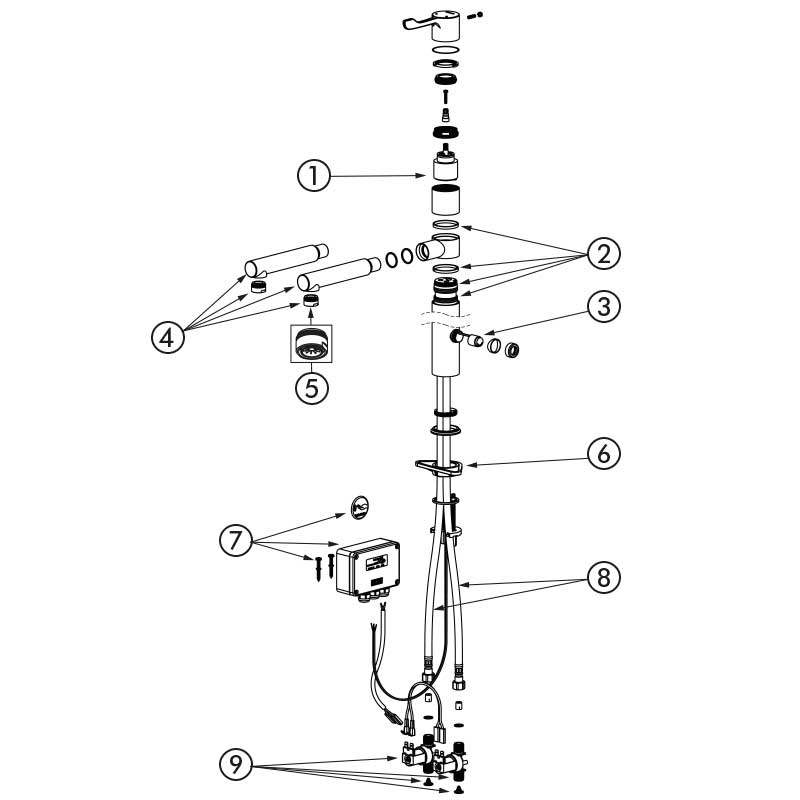

1.
N201AG75
2. 753256
3. CEL378V
4. 20002
5. 921024.2P
6. 256P
7. 495445BC
8. FLEXPEX3
9. 495612
2. 753256
3. CEL378V
4. 20002
5. 921024.2P
6. 256P
7. 495445BC
8. FLEXPEX3
9. 495612

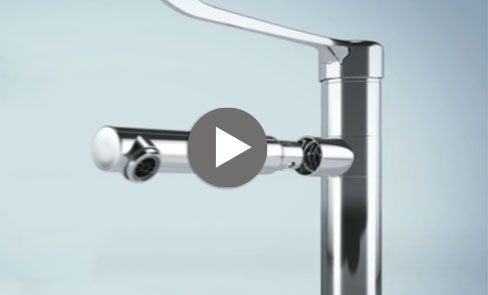

Infection control: mixer with removable spout and body with smooth interior
