Ref. H96BOX
Sequential mixer, kit 1/2
£314.87 excl. VAT
2026 UK public price excluding VAT
5 variants
H9633 -
Thermostatic mixer with ERGO control knobs - With elbow outlet
H9631 -
Thermostatic mixer with ERGO control knobs - Without elbow outlet
H9633L -
Thermostatic mixer with Hygiene lever - Without elbow outlet
H9631L -
Thermostatic mixer with Hygiene lever - Without elbow outlet
H96CBOX -
Waterproof housing for control plate with elbow

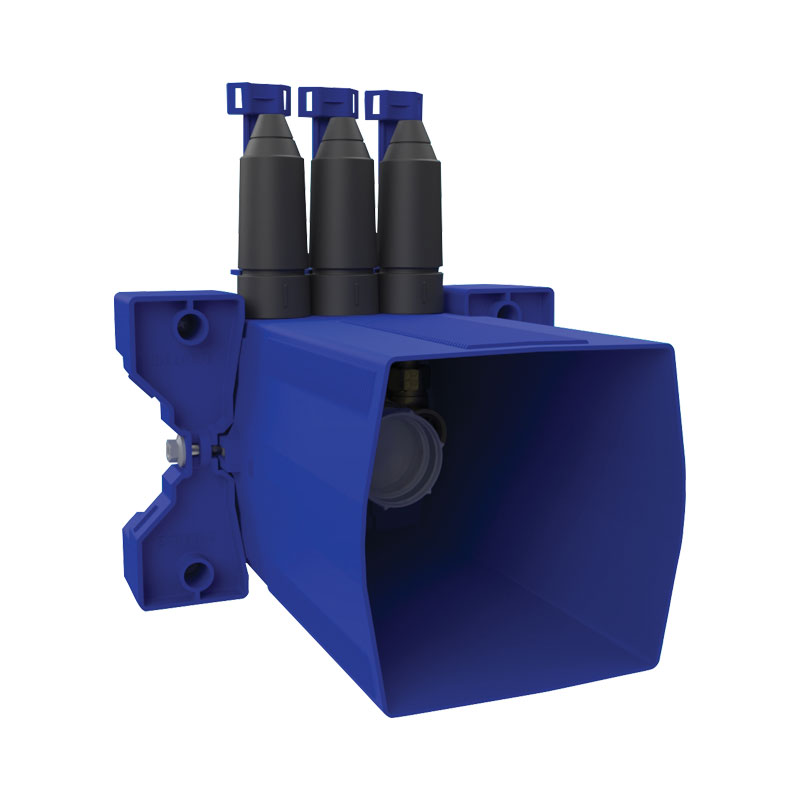

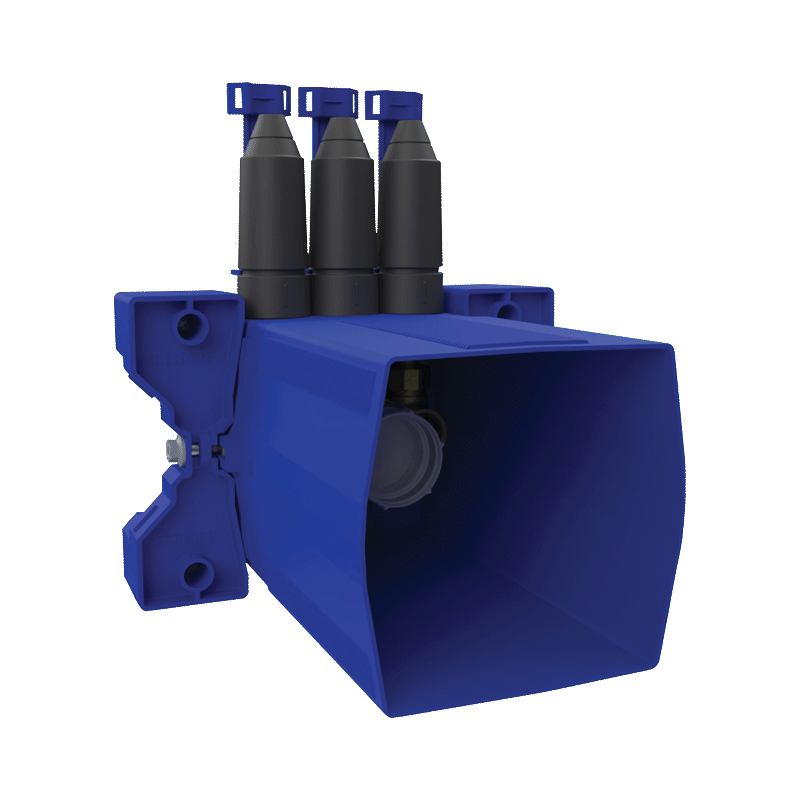

Recessed housing for thermostatic shower mixers
Ref. H96BOX
Recessed waterproof housing for thermostatic sequential shower mixers, kit 1/2:
- Collar with waterproof seal.
- Hydraulic connection to the outside and maintenance from the front.
- Water supply connects to the top.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes from 10 - 110mm (while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge are all integrated and accessible from the front.
- Thermostatic sequential shower mixer.
- Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.

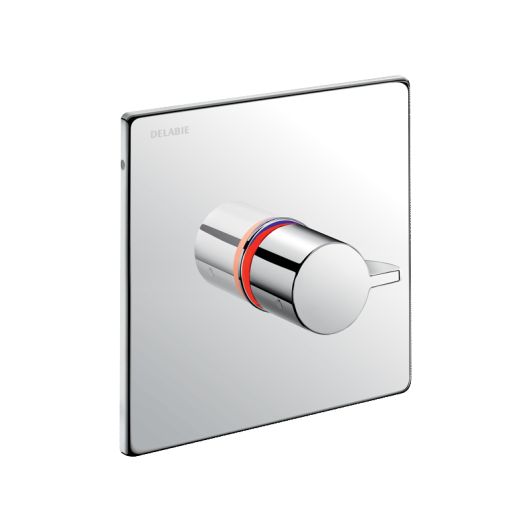

Order with control-plate reference H9631.
- Collar with waterproof seal.
- Hydraulic connection to the outside and maintenance from the front.
- Water supply connects to the top.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes from 10 - 110mm (while maintaining the minimum recessing depth of 83mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge are all integrated and accessible from the front.
- Thermostatic sequential shower mixer.
- Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.
Order with control-plate reference H9631.
Advantages
Recessed housing for thermostatic shower mixers
Ref. H96BOX
Connector
1/2"
Technology SECURITHERM Securitouch thermostatic sequential mixer

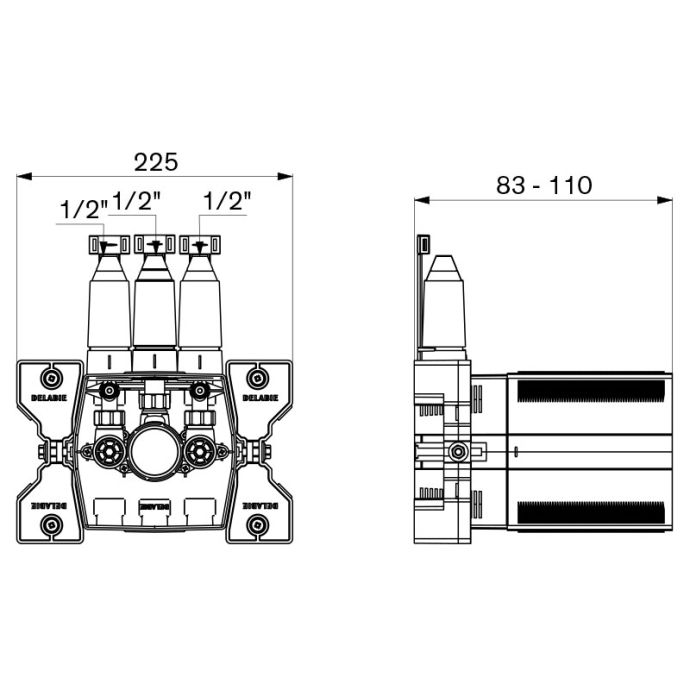

Depth 83 - 110mm
Width 225mm
Certificates
Warranty
Technology SECURITHERM Securitouch thermostatic sequential mixer
Depth 83 - 110mm
Width 225mm
Certificates
Warranty
Recessed housing for thermostatic shower mixers
Ref. H96BOX
To download one or several documents linked to this product, please select the type of file you require
