Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9634
Sequential thermostatic
Sequential thermostatic
DESCRIPTION

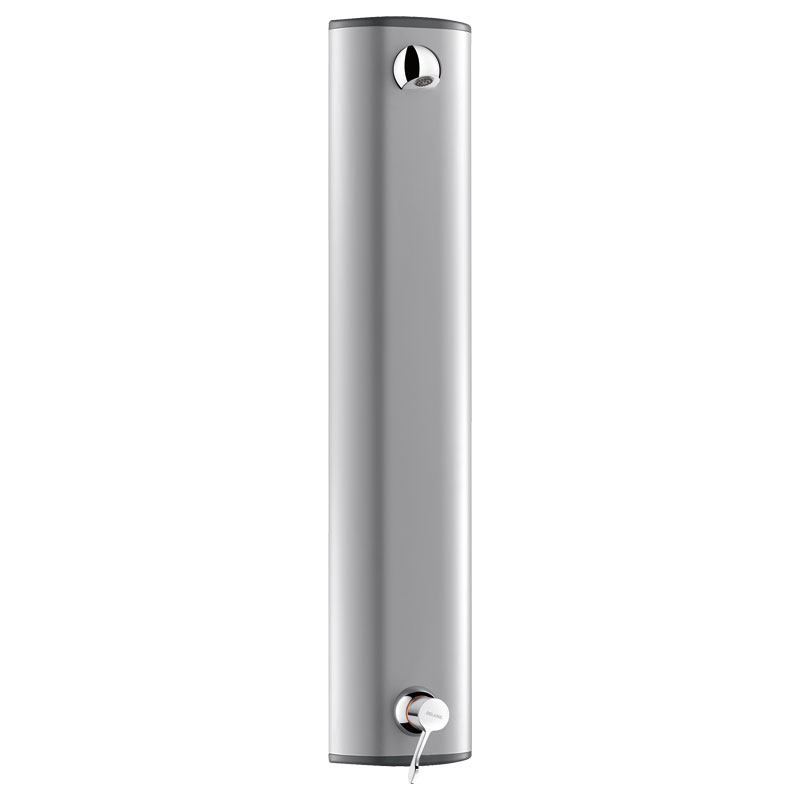

Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9634Anodised aluminium shower panel for wall-mounted exposed installation:
SECURITHERM sequential thermostatic mixer (non time flow).
Adjustable temperature control from cold water up to 39°C; maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding safety: automatic shut-off if cold water supply fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Comfort rain-effect spray.
Hygiene control lever L. 100mm.
Concealed supply via M1/2" flexibles.
Concealed fixings.
Filters.
Suitable for people with reduced mobility.
30-year warranty.
SECURITHERM sequential thermostatic mixer (non time flow).
Adjustable temperature control from cold water up to 39°C; maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding safety: automatic shut-off if cold water supply fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Comfort rain-effect spray.
Hygiene control lever L. 100mm.
Concealed supply via M1/2" flexibles.
Concealed fixings.
Filters.
Suitable for people with reduced mobility.
30-year warranty.
2025 UK public price excluding VAT: £717.77
ADVANTAGES
SECURITHERM: Optimum anti-scalding safety
No non-return valves on inlets
Thermostatic: total temperature stability
Sequential open and closing on cold water
TECHNICAL CHARACTERISTICS
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9634| Supply | Concealed, via M1/2" flexible |
| Connector | M1/2" |
| Technology | Sequential thermostatic SECURITHERM |

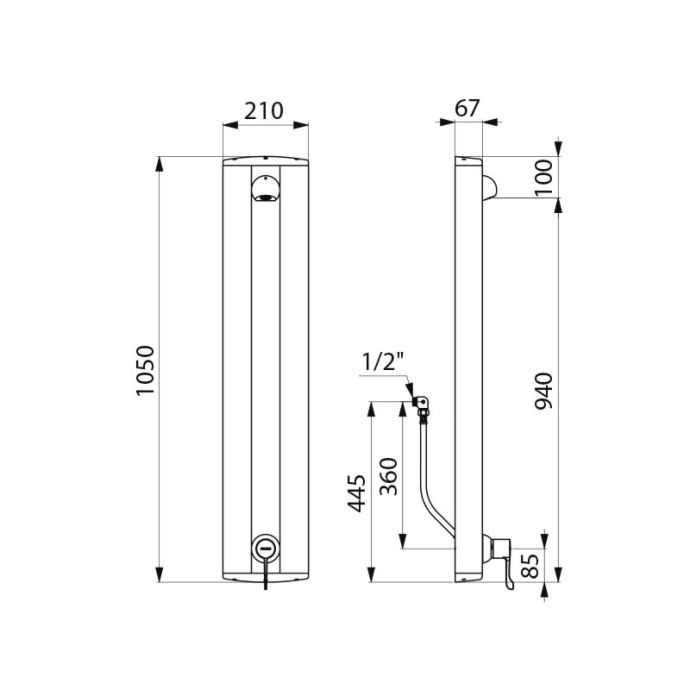

| Height | 1050mm |
| Width | 210mm |
| Flow rate | 6 lpm |
| Temperature limiter | 39°C |
| Finish | Aluminium |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts

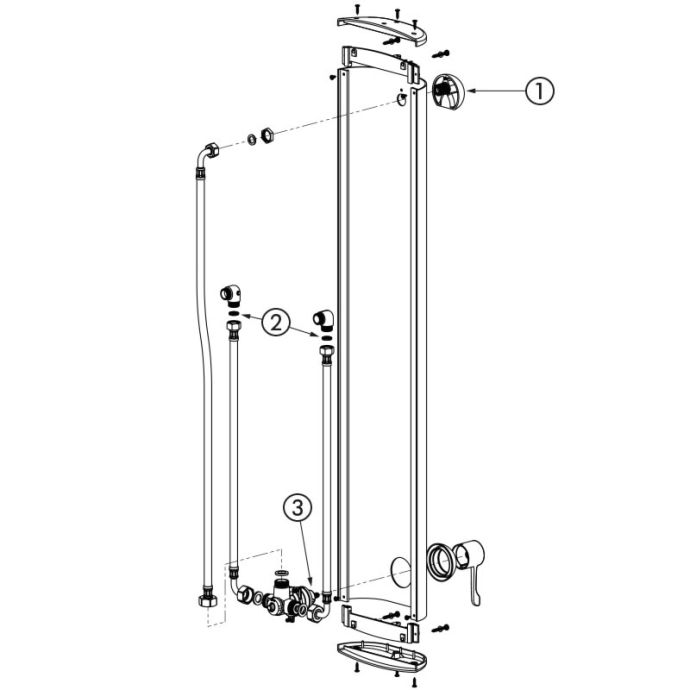

SPARE PARTS
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9634
| 1. | 709000 |
|
ROUND shower head |
| 2. | 60212.10P |
|
Flat filter |
| 3. | N963 |
|
Thermostatic cartridge for shower mixers |
VARIANTS
| H9636 | M1/2" top inlet + inline stopcocks | £840.81 excl. VAT | |
|---|---|---|---|
| H963615 | Top Ø 15mm compression fittings with inline stopcocks | £854.49 excl. VAT | |
| H9639 | M1/2" top inlet + inline stopcocks | £717.77 excl. VAT | |
| H963915 | Top Ø 15mm compression fittings with inline stopcocks | £731.45 excl. VAT | |
| H9635 | Concealed inlet via M½" flexibles | £840.81 excl. VAT |
Associated products
Cut-to-size extension
For aluminium shower panel
Ref. 790152
Adjustable height floor trap
For tiles or concrete floors
Ref. 683001UK
BIOFIL 2-month shower filter
Non-sterile
Ref. 30261
VARIANTS
| H9636 | M1/2" top inlet + inline stopcocks | £840.81 excl. VAT | |
|---|---|---|---|
| H963615 | Top Ø 15mm compression fittings with inline stopcocks | £854.49 excl. VAT | |
| H9639 | M1/2" top inlet + inline stopcocks | £717.77 excl. VAT | |
| H963915 | Top Ø 15mm compression fittings with inline stopcocks | £731.45 excl. VAT | |
| H9635 | Concealed inlet via M½" flexibles | £840.81 excl. VAT |
