SECURITHERM shower panel

Ref. 792380

Thermostatic mechanical dual control

£1,070.11 ^{excl. VAT}

2026 UK public price excluding VAT

3 variants

792320 - M1/2" top inlet + inline stopcocks

£1,051.80 ^{excl. VAT}

792330 - Concealed inlet via M½" flexibles

£1,047.15 ^{excl. VAT}

79239015 - Top Ø 15mm compression fittings with inline stopcocks

£1,079.52 ^{excl. VAT}

SECURITHERM shower panel

Ref. 792380

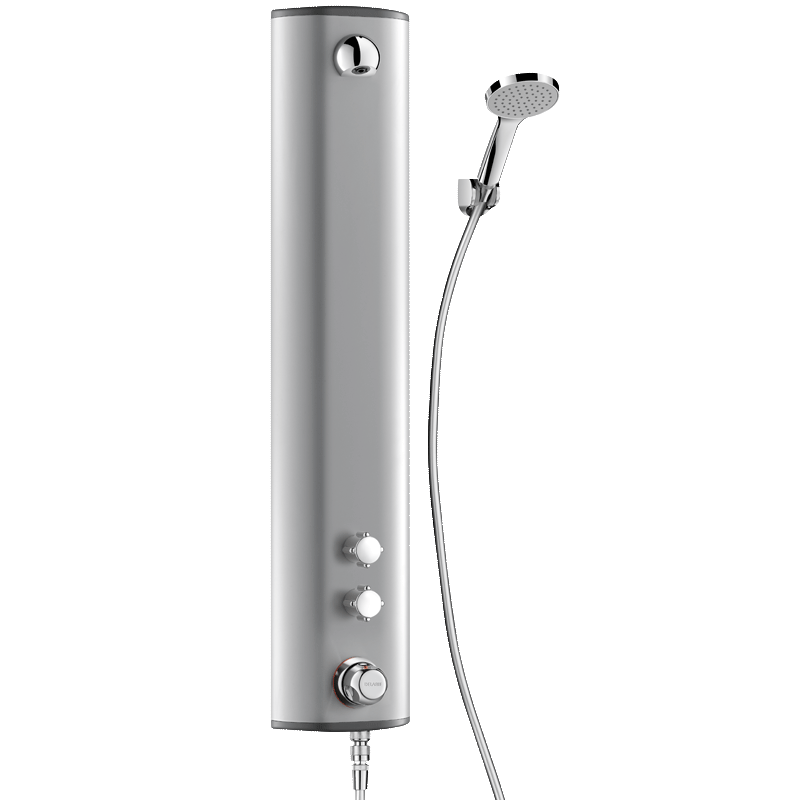

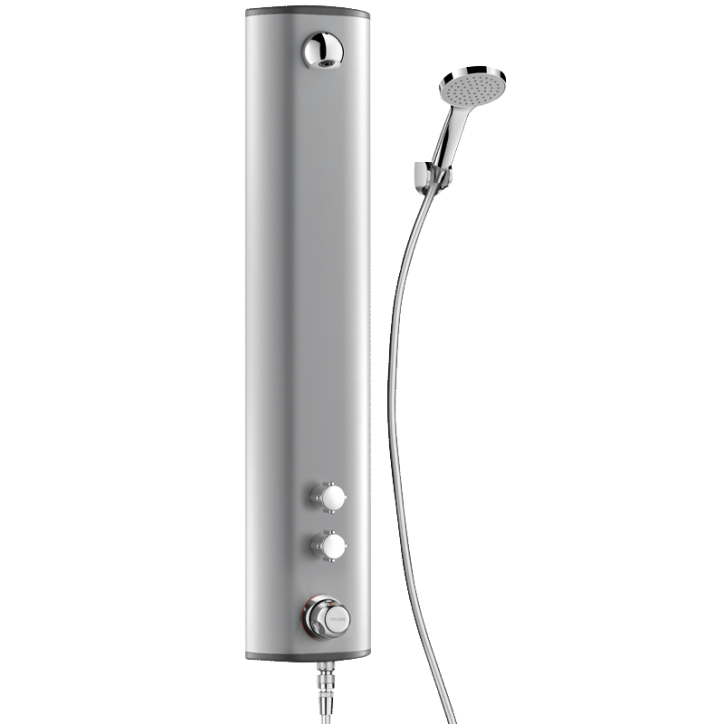

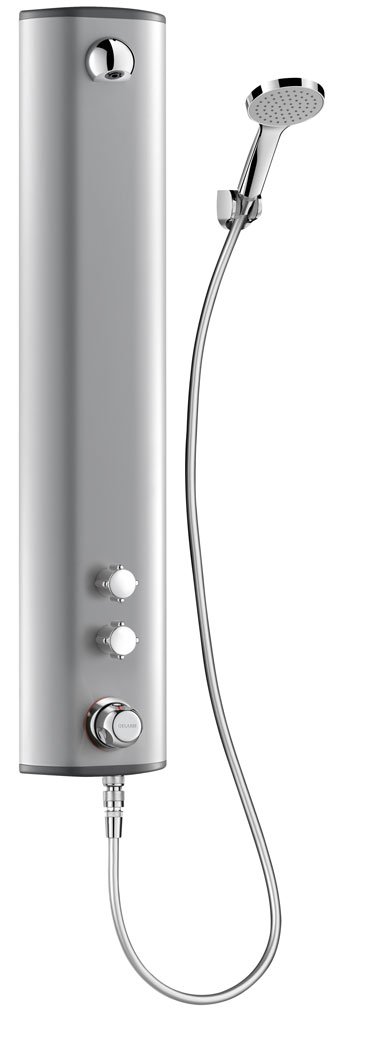

Dual control thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Non-time flow 1/4-turn valves to control flow.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation set at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.

Advantages

Themostatic control

Instant shut-off if cold water fails

Fixed shower head or handset

Aluminium panel, brass controls

SECURITHERM shower panel

Ref. 792380

Connector M½"

Technology Non-time flow

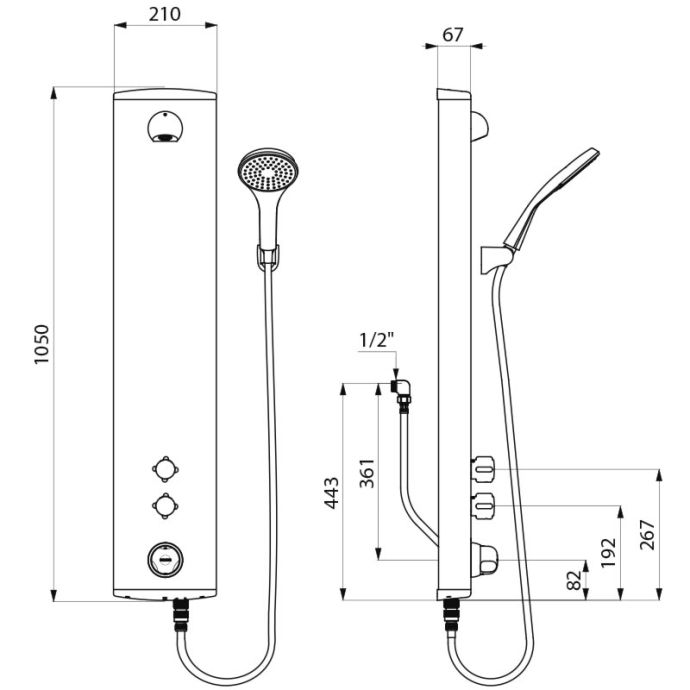

Height 1050mm

Depth 67mm

Width 210mm

Flow rate 6 lpm

Temperature limiter Thermostatic

Finish Aluminium

Certificates

Warranty
