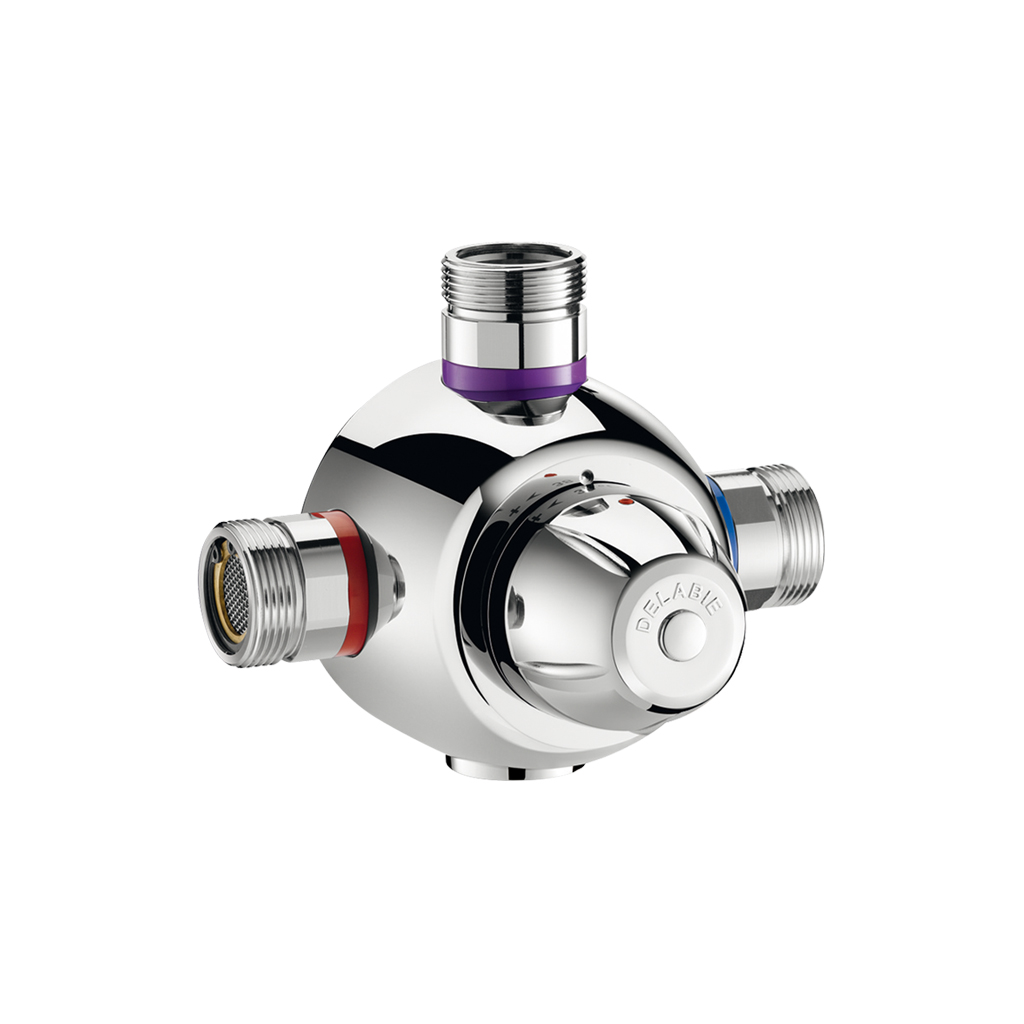

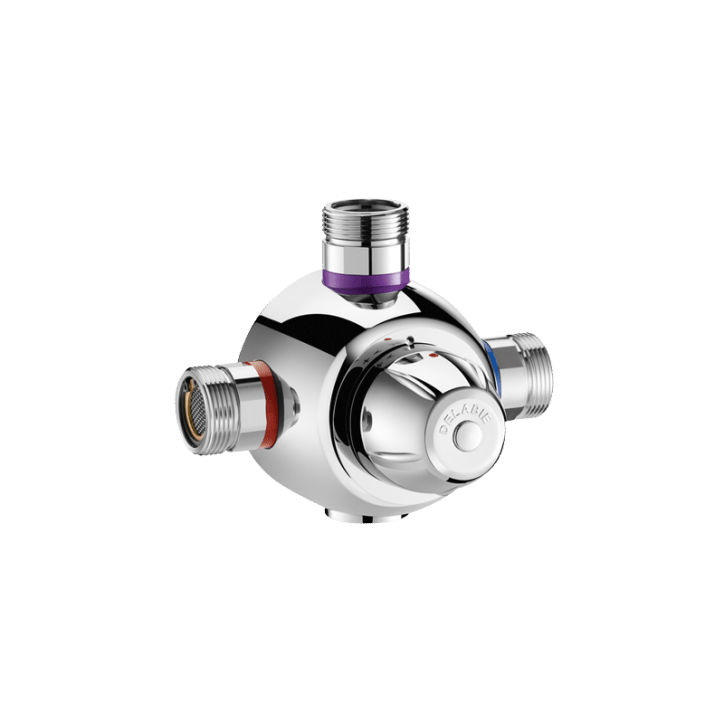

PREMIX COMFORT

Ref. 731200

Group thermostatic mixing valve, mixed water 32°-42°C

£667.80 ^{excl. VAT}

2026 UK public price excluding VAT

7 variants

731002 - 55 lpm - M3/4" - Dimensions: 120 x 60 x 18mm

£667.80 ^{excl. VAT}

731003 - 90 lpm - M1" - Dimensions: 160 x 80 x 23mm

£1,035.11 ^{excl. VAT}

731004 - 140 lpm - M1 1/4" - Dimensions: 180 x 90 x 26mm

£1,485.86 ^{excl. VAT}

731005 - 190 lpm - M1 1/2" - Dimensions: 195 x 98 x 26mm

£1,919.90 ^{excl. VAT}

731300 - 90 lpm - M1" - Dimensions: 146 x 95 x 23mm

£1,035.11 ^{excl. VAT}

731400 - 140 lpm - M1 1/4" - Dimensions: 180 x 107 x 26mm

£1,485.86 ^{excl. VAT}

731500 - 190 lpm - M1 1/4" - Dimensions: 218 x 129 x 26mm

£1,883.33 ^{excl. VAT}

PREMIX COMFORT

Ref. 731200

Group thermostatic mixing valve for mixed water from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
55 lpm - M¾".
30-year warranty.

Advantages

Automatic shut-off if cold water supply fails

Temperature stability

Accessible filters and non-return valves

Thermo-reactive cell

PREMIX COMFORT

Ref. 731200

Connector M¾"

Technology Thermostatic

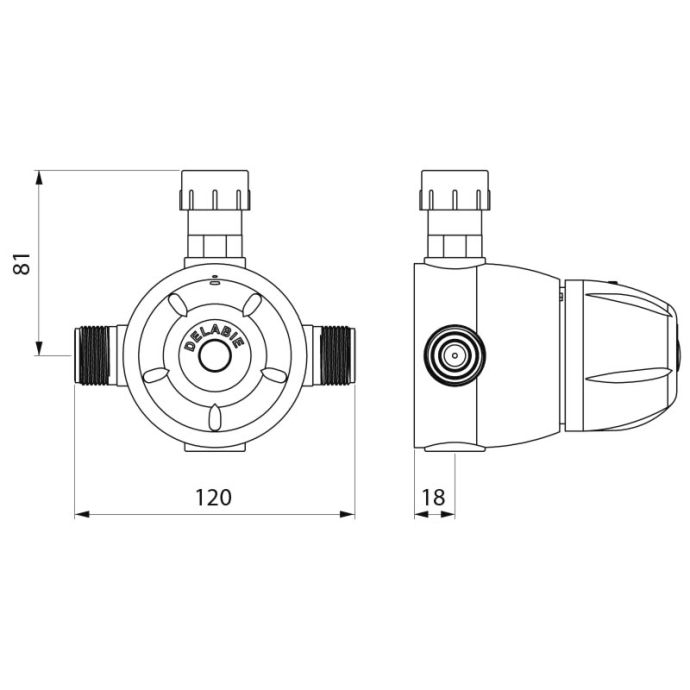

Height 81mm

Depth 18mm

Length 120mm

Flow rate 55 lpm

Certificates

Warranty

Repairability
