New

Self-supporting fire retardant TEMPOFIX 3 frame system for WCs

Ref. 565065DE

For TEMPOFLUX 3

£685.43 ^{excl. VAT}

2026 UK public price excluding VAT

Ref. 565065DE

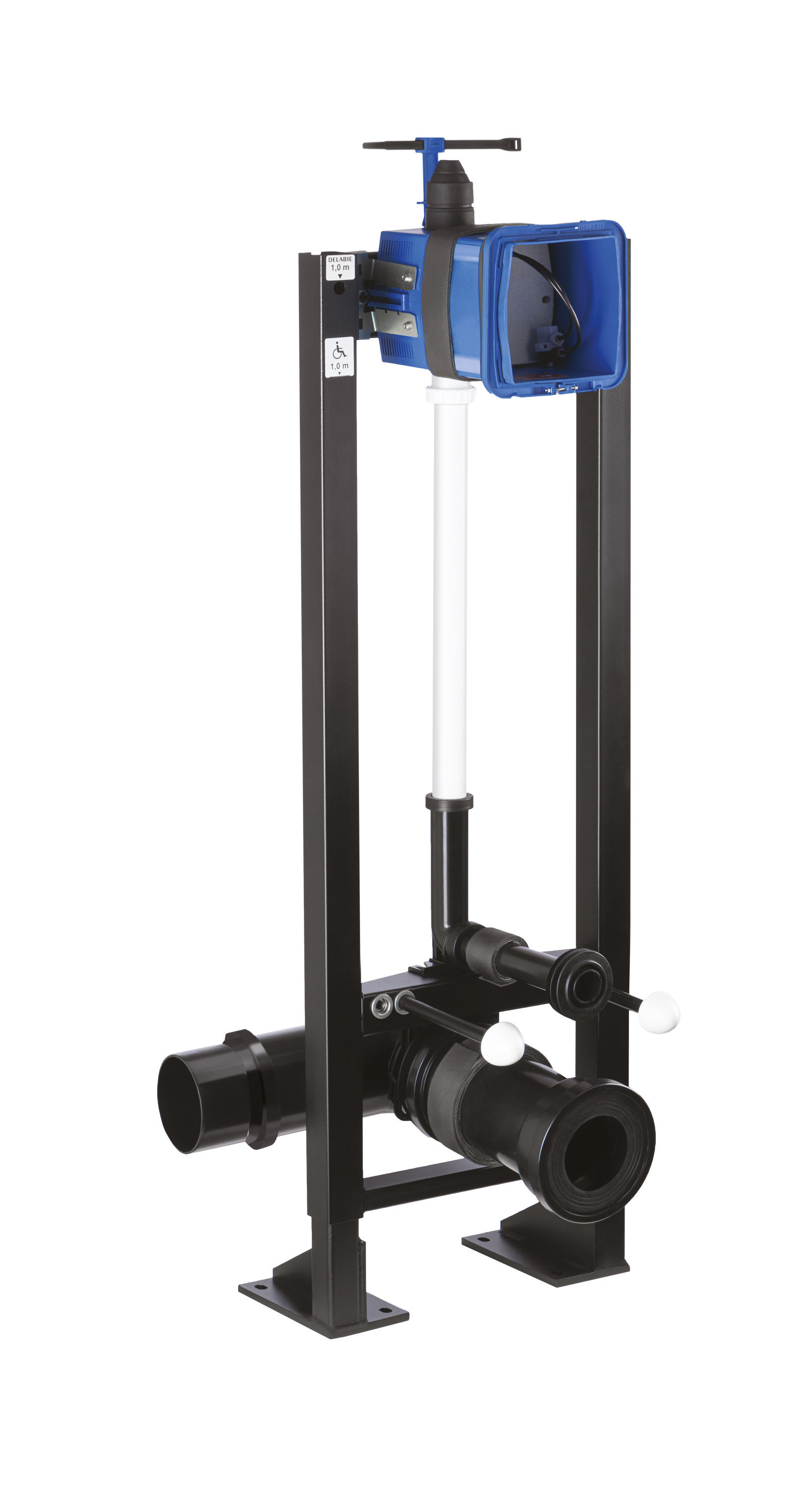

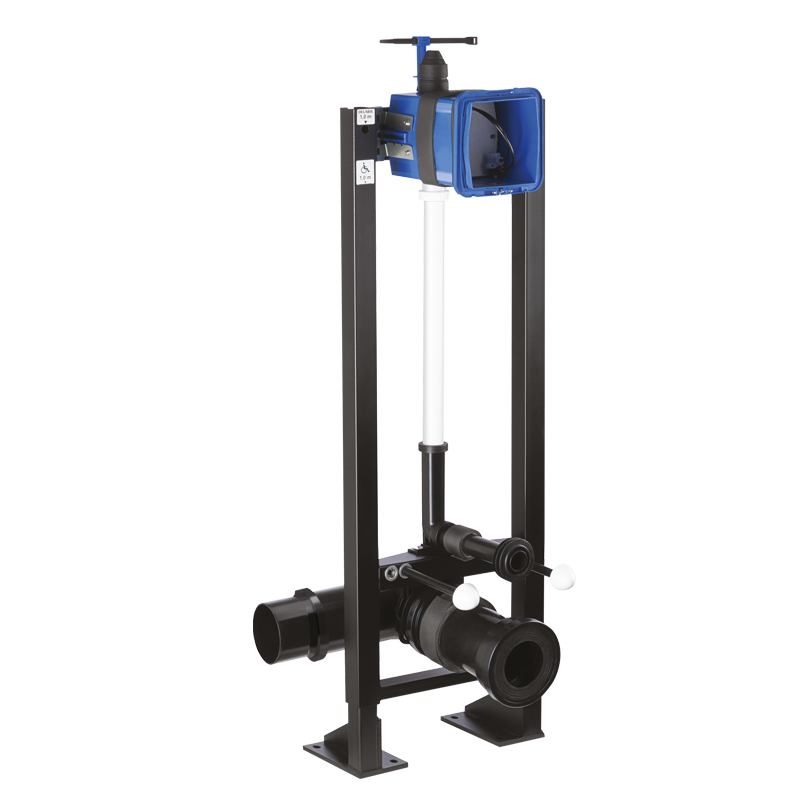

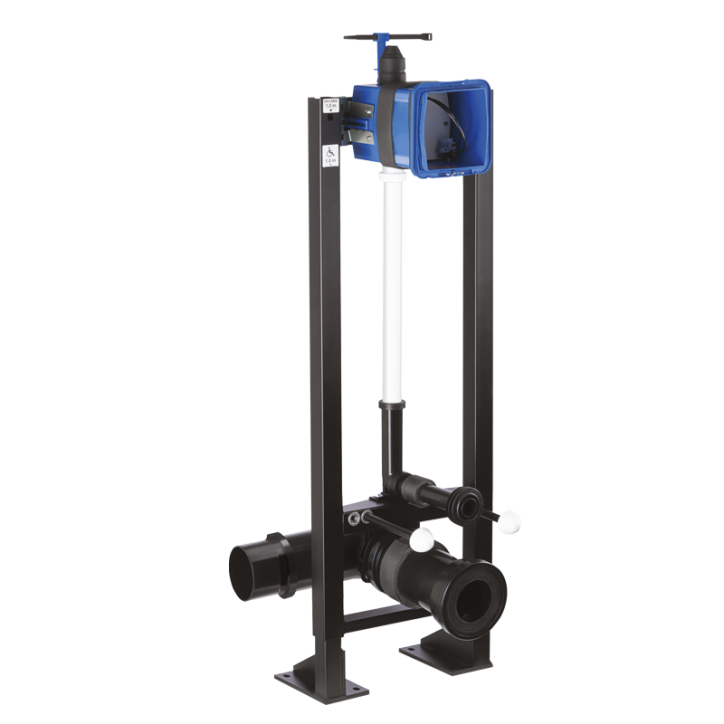

Self-supporting frame system for wall hung WCs, kit 1/2
Fire retardant CF 60 min - EI60.
Black powder-coated steel frame with large feet for load-bearing floors:
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer and intumescent collar for fire protection.
- ABS soil pipe, Ø 110mm outlet to glue to waterproof seal, with 2 setting positions and intumescent collar for fire protection.
- Compatible with solid walls from 53 to 105mm (4 BA13 and tiles minimum).

Recessed waterproof housing with intumescent collar and fire protection set:
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.

Supplied premounted.
30-year warranty.

Order with control plate reference 763000.

Advantages

Fire retardant 60 minutes

Quick and easy to install: delivered pre-mounted

Space saving

Adapt to wall thickness

Self-supporting fire retardant TEMPOFIX 3 frame system for WCs

Ref. 565065DE

Connector F¾"

Technology Time flow

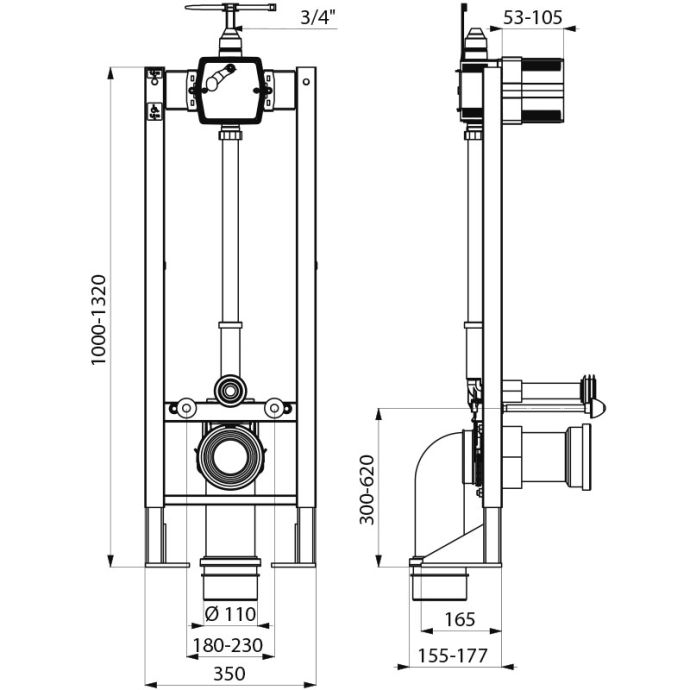

Height 1000 to 1320mm

Depth 157 - 177mm

Width 350mm

Finish Black powder-coated steel

Warranty

WC direct flush system, a public revolution

Associated products

TEMPOFLUX 3 control plate for WCs

Soft-touch operation time flow control, AB, recessed

Ref. 763000

Wall-hung BCN S WC pan

Polished satin 304 stainless steel

Ref. 110110

Wall-mounted toilet brush set with lid

Model with anti-theft lock for fixing

Ref. 4051S
