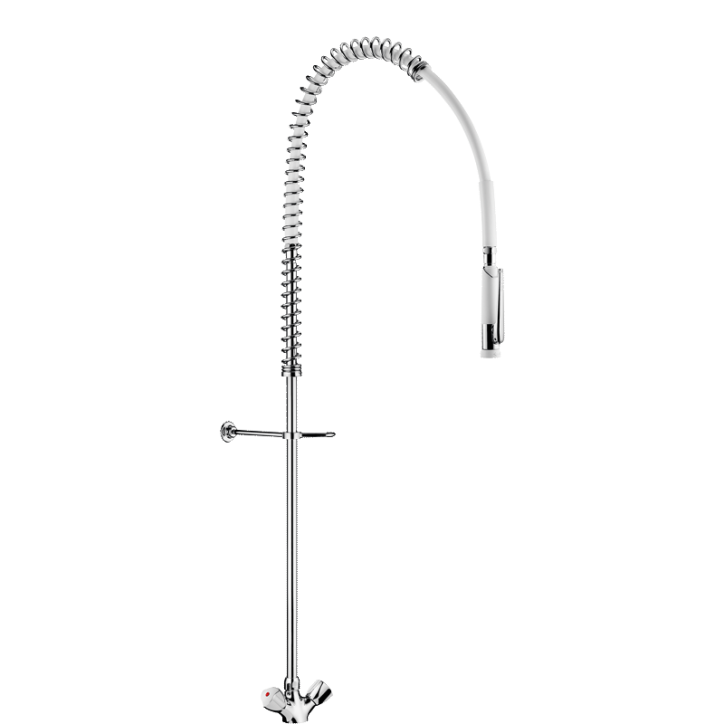

Pre-rinse set with mixer

Ref. G6633
Without bib tap
Pre-rinse set with mixer

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. G6633
Complete pre-rinse set without bib tap.
Single hole deck mounted mixer with:
- Valve head with control knob.
- F3/8" flexible connectors and non-return valves.
- Reinforced fixing via 2 threaded rods and back-nuts.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
10-year warranty.

2020 UK public price excluding VAT: £510.78

ADVANTAGES

Endurance - Fiabilité

Water-free valve head and reinforced fixings

Anti-vandalisme

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Ergonomic controls

Endurance - Fiabilité

Increased durability: high performance hose

Characteristics

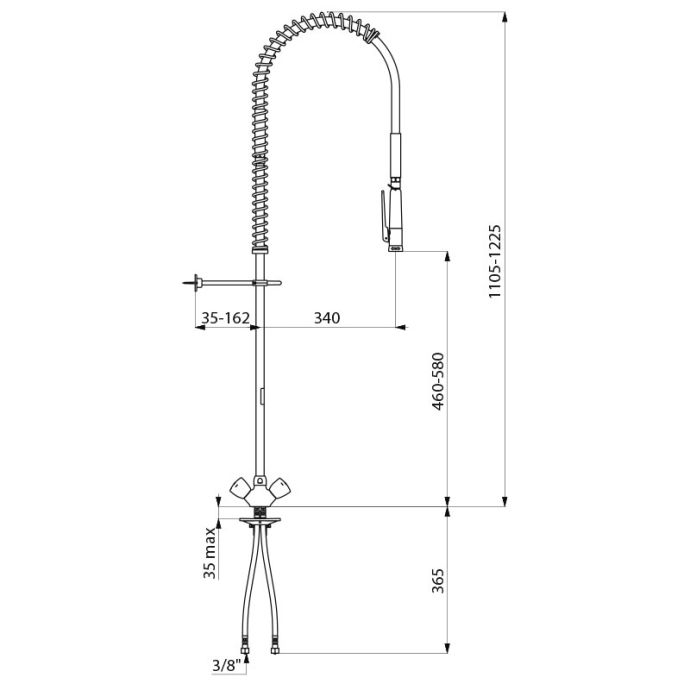

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. G6633
Connector F3/8"
Height 1105 - 1225mm
Drop height 310 - 550mm
Flow rate 9 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Certificates Logo ACS Logo Belgaqua Logo PZH
Warranty Garantie 10 ans

Downloads

DOWNLOADS

Pre-rinse set with mixer

Ref. G6633

To download one or several documents linked to this product, please select the type of file you require :
