BINOPTIC MIX electronic mixer

Ref. 378MCH15

Mains supply, Ø 15mm compression fittings

£633.44 ^{excl. VAT}

2026 UK public price excluding VAT

2 variants

378MCH - Mains supply - standard lever - M3/8"

£587.95 ^{excl. VAT}

478MCH15 - Battery operated - standard lever - Ø15mm compression fittings

£753.42 ^{excl. VAT}

BINOPTIC MIX electronic mixer

Ref. 378MCH15

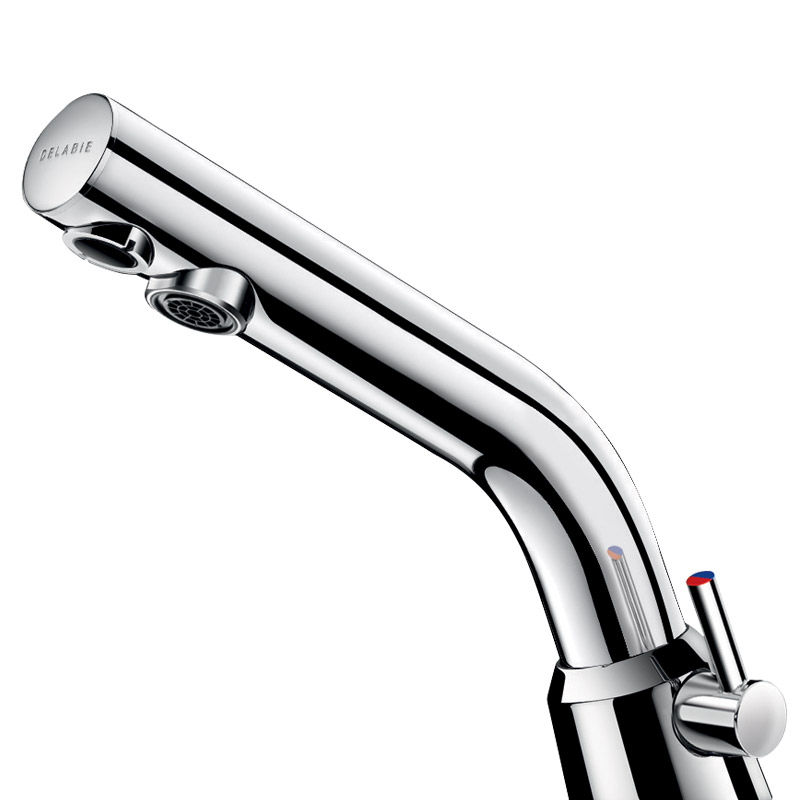

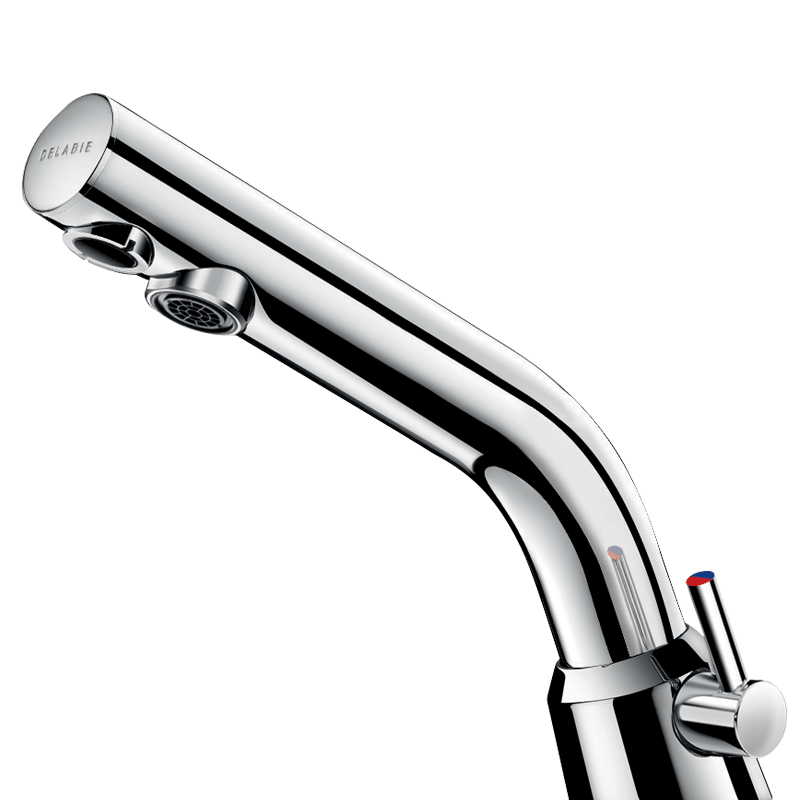

Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Chrome-plated solid brass body.
PEX flexibles with filters, solenoid valves and Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with a smooth interior and low volume of water (limits bacterial niches).
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

Advantages

Exceptional water savings: 90%

Hygiene: no manual contact

Duty flush limits bacterial proliferation

LED diagnostic aid

BINOPTIC MIX electronic mixer

Ref. 378MCH15

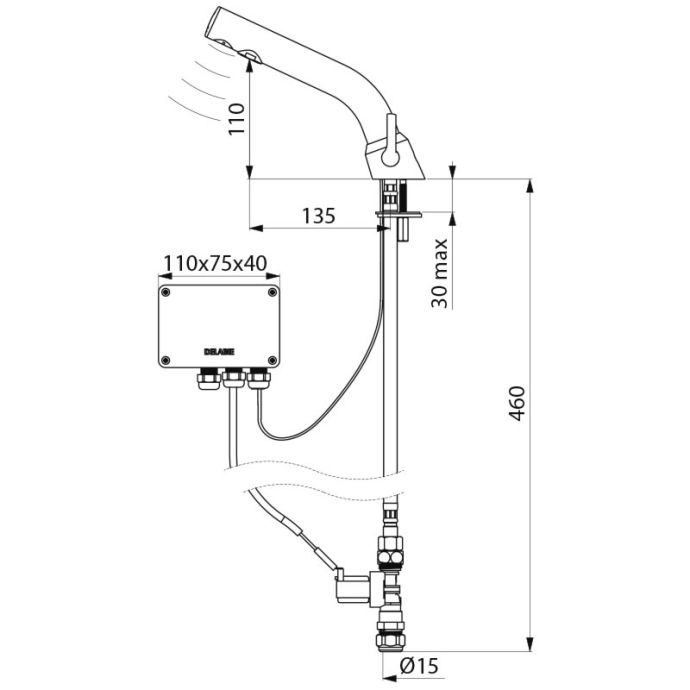

Supply 230/12V mains supply

Connector M1/2'' Ø 15mm

Technology Electronic

Drop height 110mm

Spout length 135mm

Flow rate 3 lpm
