Wall-mounted safety shower

Ref. 9108
With manual control
Wall-mounted safety shower

Presentation

DESCRIPTION

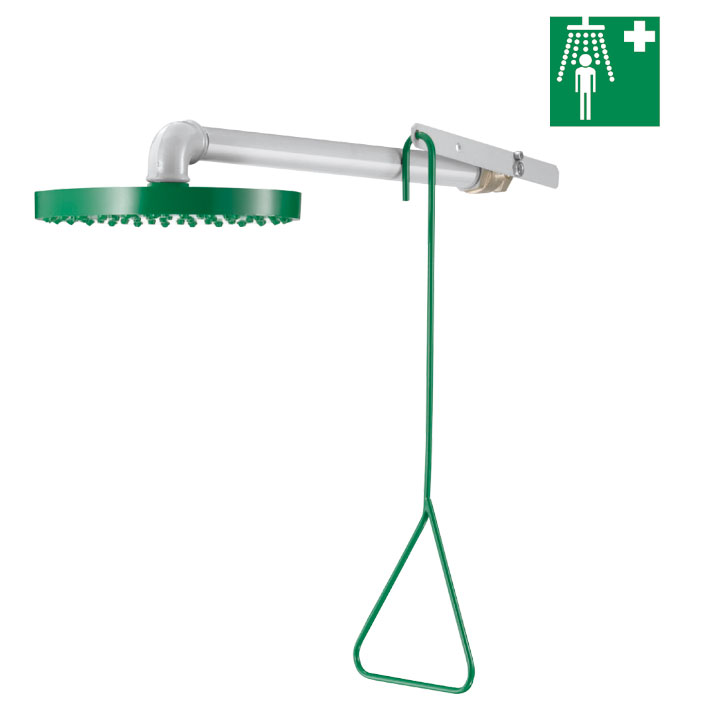

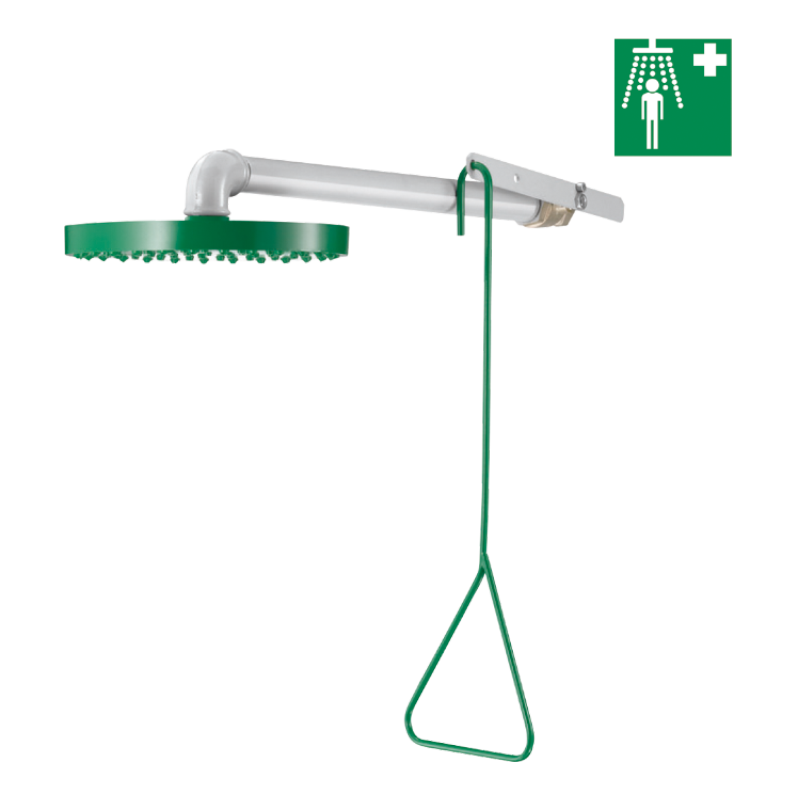

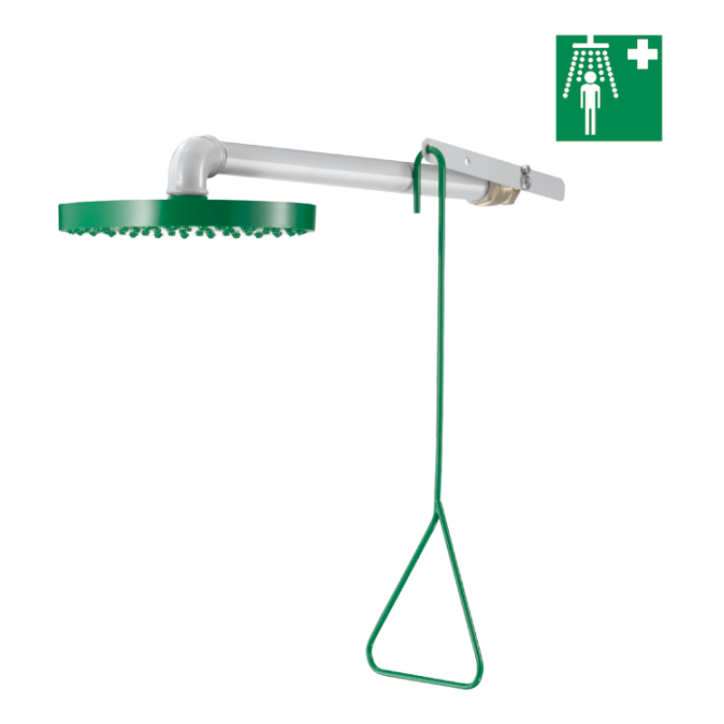

Wall-mounted safety shower

Ref. 9108
Wall-mounted safety shower with manual control includes:
Frost-free system as standard.

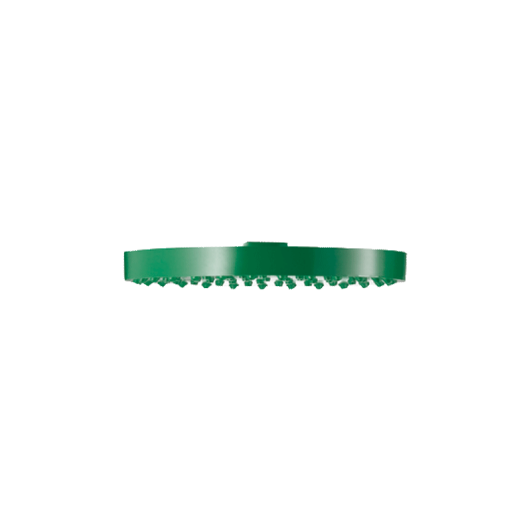

Circular shower head Ø 250mm in green, shock-resistant ABS.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass.
Supplied with identification sign for first aid equipment: "Safety Shower".
For cross wall installation, with recessed supply, or for mounting on a false ceiling (we recommend a 1" mounting bracket).
10-year warranty.

2020 UK public price excluding VAT: £178.89

ADVANTAGES

Sécurité

Frost-free system provided as standard

Confort - Ergonomie - Déclenchement souple

Gentle spray, quick and easy to activate

Maintenance aisée - Installation aisée

Maintenance without removing the equipment

Confort - Ergonomie - Déclenchement souple

Rapid flow rates for decontamination

Characteristics

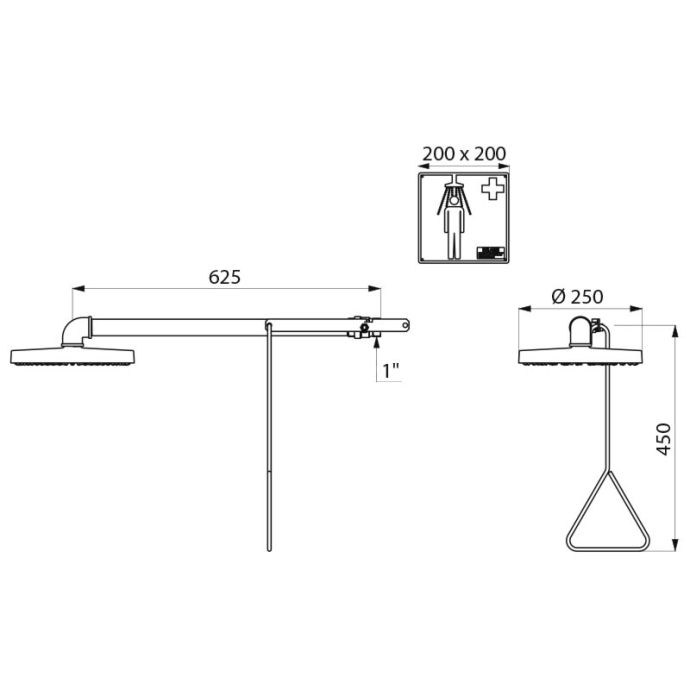

TECHNICAL CHARACTERISTICS

Wall-mounted safety shower

Ref. 9108
Supply F1"
Height 450mm
Length 625mm
Flow rate 120 lpm at 3 bar dynamic pressure
Finish Epoxy
Certificates Logo Belgaqua
Warranty Garantie 10 ans

Downloads

DOWNLOADS

Wall-mounted safety shower

Ref. 9108

To download one or several documents linked to this product, please select the type of file you require :
