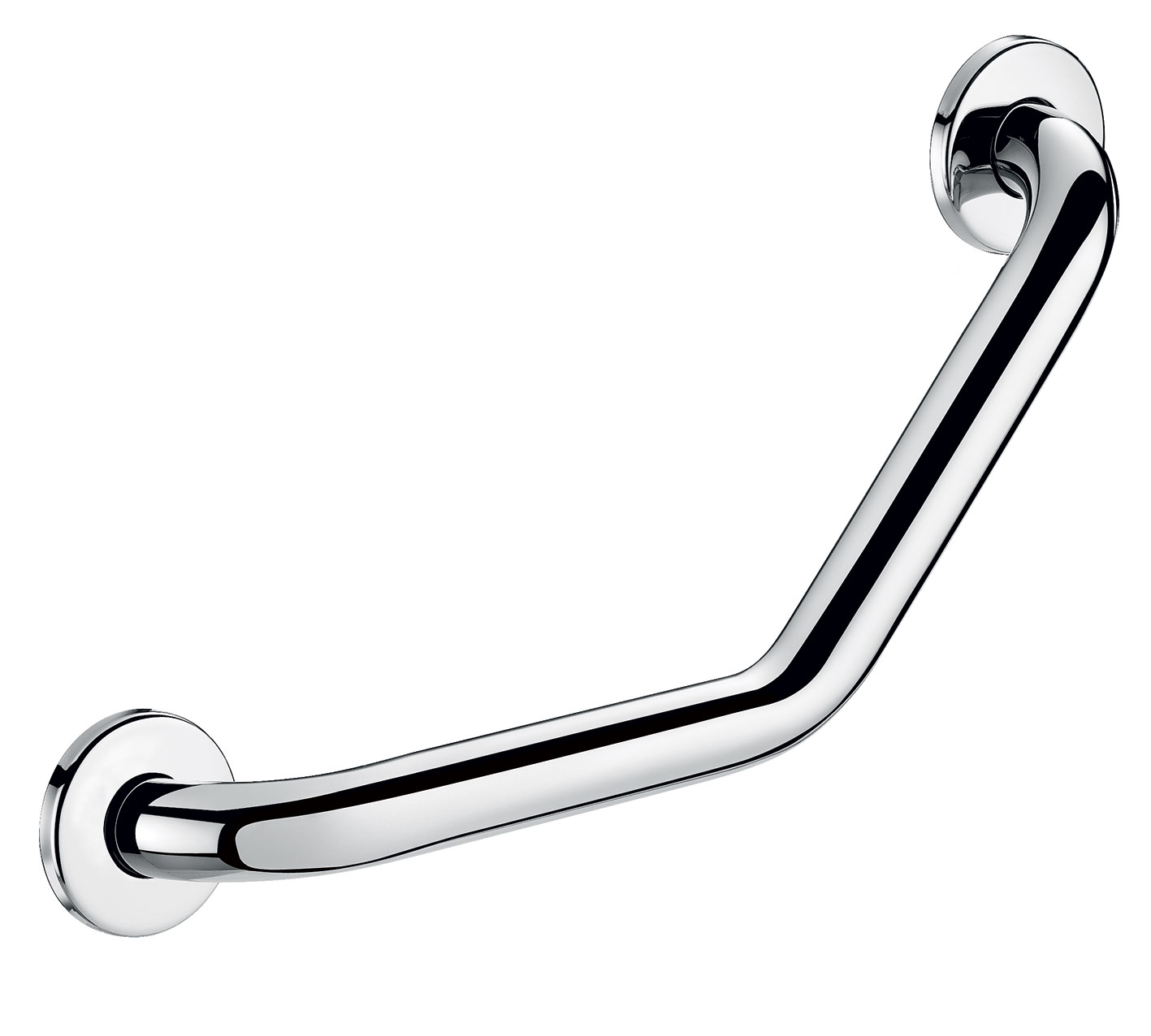

Angled stainless steel grab bar 135°, bright, 220 x 220mm
Ref. 5083P
Angled grab bar 135° for people with reduced mobility, Ø 32mm.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 220 x 220mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraPolish bright polished finish, non-porous uniform surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
Advantages
304 stainless steel: reduces bacterial development
Tested to over 200kg
40mm gap between bar and wall: minimal space
UltraPolish: smooth surface easy to clean
Angled stainless steel grab bar 135°, bright, 220 x 220mm
Ref. 5083P
Height
220mm
Length
220mm
Diameter
32mm
Width to the wall
40mm
Finish
304 stainless steel UltraPolish bright polished
Certificates
Warranty
Angled stainless steel grab bar 135°, bright, 220 x 220mm
Ref.
5083P
