New

Mirror cabinet with 4 functions

Ref. 510206

Mirror, electronic tap, soap dispenser and paper towel dispenser

£2,374.10 ^{excl. VAT}

2026 UK public price excluding VAT

1 variant

510204 - With hand dryer - 800mm

£2,691.08 ^{excl. VAT}

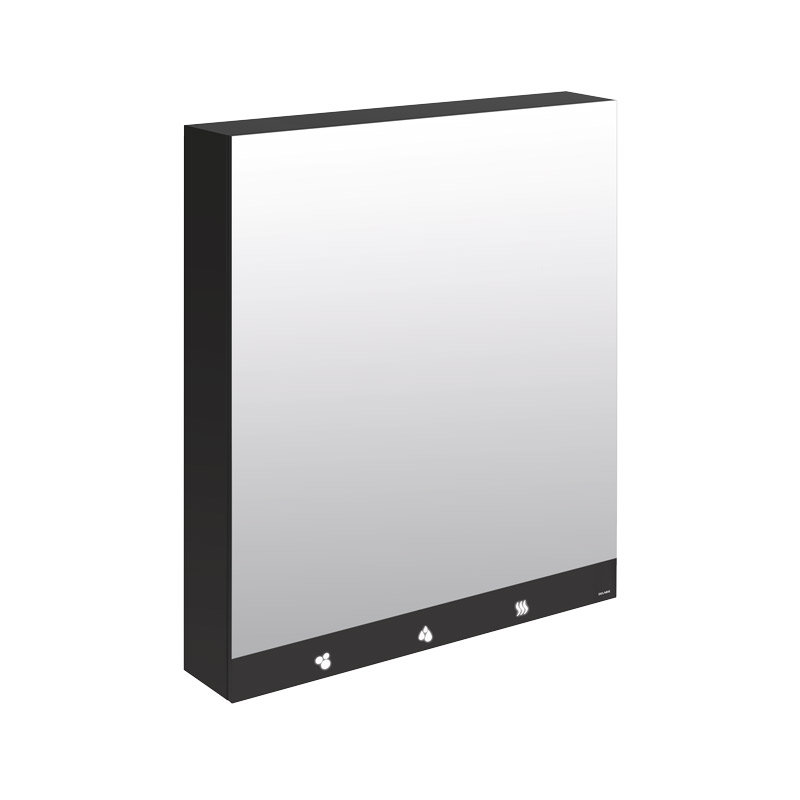

Mirror cabinet with 4 functions

Ref. 510206

Mirror cabinet with 4 functions: mirror, electronic tap and soap dispenser and paper towel dispenser.
Designer cabinet with a matte black melamine and 304 stainless steel finish.
Touch-free for improved hygiene: tap and soap dispenser activated automatically when hands are detected by infrared sensor.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Connects to the water supply from the top or from inside the cabinet.
- Water connection in M3/8".
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 4 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or 3,000cP, or specific foam soap.
Electronic basin tap*:
- Reduced stagnation valve.
- Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
- Scale-resistant flow straightener.
- Duty flush (~60 seconds every 24 hours after the last use).
- Stopcock.
- Adjustable sensor (±10°) for auto-detection
Paper towel dispenser:
- Dispenses one sheet at a time.
- Dimensions: 120 x 275 x 360mm.
- Contents: 500 sheets.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.
Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.
Dimensions: 800 x 223 x 1,000mm.
Weight: 38.5kg.
Mirror cabinet with 30-year warranty.
CE marked.

* We recommend a PREMIX mixer.

Advantages

4 functions

Matte black and 304 st. steel designer cabinet

Hygiene: touch-free

One single electrical supply for all elements

Mirror cabinet with 4 functions

Ref. 510206

Supply Mains: 230V / 50-60Hz

Connector M3/8"

Technology Electronic

Height 1,000mm

Depth 223mm

Width 800mm

Flow rate Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm

Thickness Glass mirror: 4mm

Finish Matte black melamine and 304 stainless steel

Certificates

Warranty

Repairability
