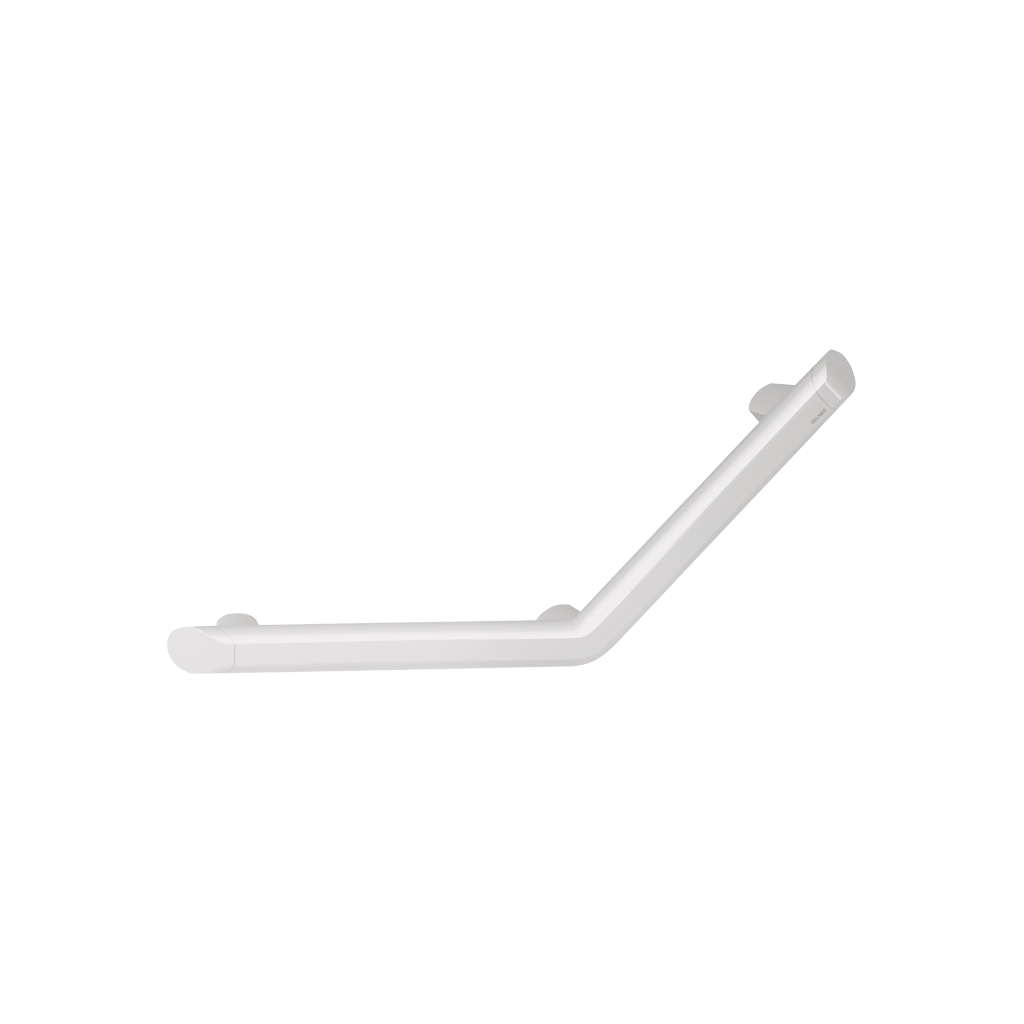

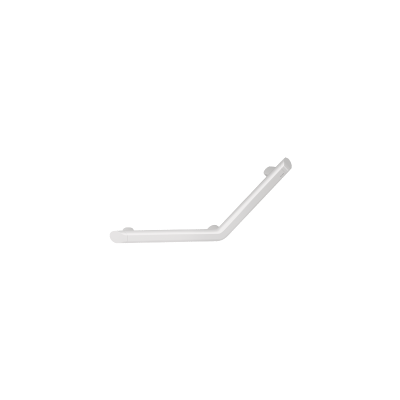

Be-line® matte white angled grab bar 135°, 220 x 220mm
                        Ref.  511983W

Matte white aluminium, 3 fixing points
                    Matte white aluminium, 3 fixing points
DESCRIPTION
Be-line® matte white angled grab bar 135°, 220 x 220mm
Ref. 511983WBe-line® angled grab bar 135°, Ø 35mm, for people with reduced mobility.
For use as a handrail (horizontal part) or as a grab rail (135° part), for WCs, showers or baths.
Use as a universal grab bar for either left or right side.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium; provides a good visual contrast with dark walls.
Anti-bacterial treatment: optimal protection against bacterial development.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 220 x 220mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bars with 30-year warranty. CE marked.
            For use as a handrail (horizontal part) or as a grab rail (135° part), for WCs, showers or baths.
Use as a universal grab bar for either left or right side.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium; provides a good visual contrast with dark walls.
Anti-bacterial treatment: optimal protection against bacterial development.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 220 x 220mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bars with 30-year warranty. CE marked.
2025 UK public price excluding VAT: £134.00
ADVANTAGES

Innovative design suitable for all users

Comfort: ergonomic anti-rotation surface

Tested to over 200kg

38mm gap between bar and wall: space saving

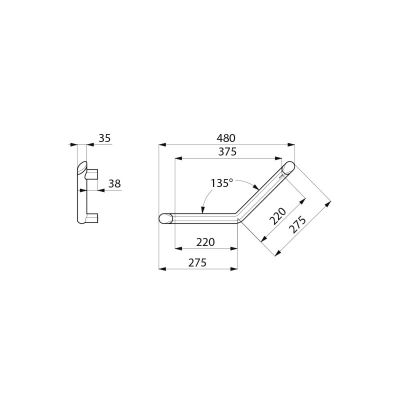

TECHNICAL CHARACTERISTICS
Be-line® matte white angled grab bar 135°, 220 x 220mm
Ref. 511983W| Height | 220mm |
| Length | 220mm |
| Diameter | Ø 35mm |
| Width to the wall | 38mm |
| Thickness | 3mm |
| Finish | Matte white powder-coated aluminium |
| Certificates |     |
| Warranty |   |
| Repairability |  |
Spare parts
SPARE PARTS
Be-line® matte white angled grab bar 135°, 220 x 220mm
Ref. 511983W


                                    | 1. | 5119FIX |  | Mounting kit for Be-Line® grab bars |
VARIANTS
| 511982C | Metallised anthracite powder-coated aluminium - 400 x 400mm | £148.33 excl. VAT | |
|---|---|---|---|
| 511982BK | Matte black powder-coated aluminium - 400 x 400mm | £170.58 excl. VAT | |
| 511982W | Matte white powder-coated aluminium - 400 x 400mm | £148.33 excl. VAT | |
| 511983C | Metallised anthracite powder-coated aluminium - 220 x 220mm | £134.00 excl. VAT | |
| 511983BK | Matte black powder-coated aluminium - 220 x 220mm | £151.07 excl. VAT |
VARIANTS
| 511982C | Metallised anthracite powder-coated aluminium - 400 x 400mm | £148.33 excl. VAT | |
|---|---|---|---|
| 511982BK | Matte black powder-coated aluminium - 400 x 400mm | £170.58 excl. VAT | |
| 511982W | Matte white powder-coated aluminium - 400 x 400mm | £148.33 excl. VAT | |
| 511983C | Metallised anthracite powder-coated aluminium - 220 x 220mm | £134.00 excl. VAT | |
| 511983BK | Matte black powder-coated aluminium - 220 x 220mm | £151.07 excl. VAT |
