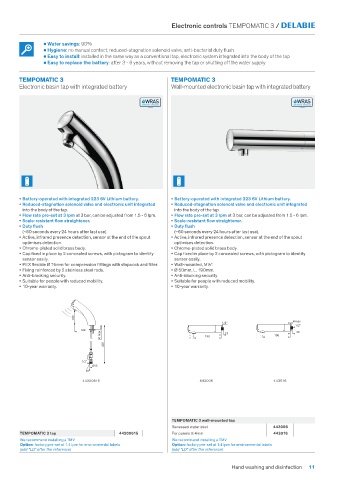

Electronic controls TEMPOMATIC 3 /

• Water savings: 90%
• Hygiene: no manual contact, reduced-stagnation solenoid valve, anti-bacterial duty flush
• Easy to install: installed in the same way as a conventional tap, electronic system integrated into the body of the tap
• Easy to replace the battery: after 3 - 6 years, without removing the tap or shutting off the water supply

TEMPOMATIC 3 TEMPOMATIC 3
Electronic basin tap with integrated battery Wall-mounted electronic basin tap with integrated battery

• Battery-operated with integrated 223 6V Lithium battery. • Battery-operated with integrated 223 6V Lithium battery.
• Reduced-stagnation solenoid valve and electronic unit integrated • Reduced-stagnation solenoid valve and electronic unit integrated
into the body of the tap� into the body of the tap�
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1�5 - 6 lpm� • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1�5 - 6 lpm�
• Scale-resistant flow straightener. • Scale-resistant flow straightener.
• Duty flush • Duty flush
(~60 seconds every 24 hours after last use)� (~60 seconds every 24 hours after last use)�
• Active, infrared presence detection, sensor at the end of the spout • Active, infrared presence detection, sensor at the end of the spout
optimises detection� optimises detection�
• Chrome-plated solid brass body� • Chrome-plated solid brass body�
• Cap fixed in place by 2 concealed screws, with pictogram to identify • Cap fixed in place by 2 concealed screws, with pictogram to identify
sensor easily� sensor easily�
• PEX flexible Ø 15mm for compression fittings with stopcock and filter� • Wall-mounted, M½"�
• Fixing reinforced by 2 stainless steel rods� • Ø 50mm, L� 190mm�
• Anti-blocking security� • Anti-blocking security�
• Suitable for people with reduced mobility� • Suitable for people with reduced mobility�
• 10-year warranty� • 10-year warranty�

100
1/2" 4 max
1/2"
120 20
30 max 190 18 190
420

1/2"
Ø15
30°
44200615 443006 443016

TEMPOMATIC 3 wall-mounted tap
Recessed water inlet 443006
TEMPOMATIC 3 tap 44200615 For panels ≤ 4mm 443016
We recommend installing a TMV We recommend installing a TMV
Option: factory pre-set at 1�4 lpm for environmental labels Option: factory pre-set at 1�4 lpm for environmental labels
(add "LD" after the reference) (add "LD" after the reference)

Hand washing and disinfection 11
