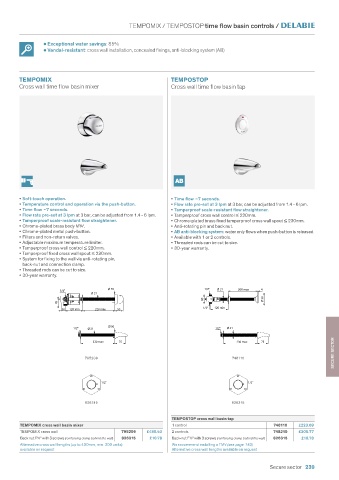

TEMPOMIX / TEMPOSTOP time flow basin controls /


                •  Exceptional water savings: 85%
                •  Vandal-resistant: cross wall installation, concealed fixings, anti-blocking system (AB)





        TEMPOMIX                                             TEMPOSTOP
        Cross wall time flow basin mixer                      Cross wall time flow basin tap























        • Soft-touch operation.                              • Time flow ~7 seconds.
        • Temperature control and operation via the push-button.  • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
        • Time flow ~7 seconds.                               • Tamperproof scale-resistant flow straightener.
        • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.  • Tamperproof cross wall control ≤ 220mm.
        • Tamperproof scale-resistant flow straightener.      • Chrome-plated brass fixed tamperproof cross wall spout ≤ 230mm.
        • Chrome-plated brass body M¾".                      • Anti-rotating pin and back nut.
        • Chrome-plated metal push-button.                   • AB anti-blocking system: water only flows when push-button is released.
        • Filters and non-return valves.                     • Available with 1 or 2 controls.
        • Adjustable maximum temperature limiter.            • Threaded rods can be cut to size.
        • Tamperproof cross wall control ≤ 220mm.            • 30-year warranty.
        • Tamperproof fixed cross wall spout ≤ 230mm.
        • System for fixing to the wall via anti-rotating pin,
         back-nut and connection clamp.
        • Threaded rods can be cut to size.
        • 30-year warranty.

                                       Ø 70                              1/2"  Ø 21  200 max  4
                      3/4"
                                 Ø 21
                                                                        60                   Ø 50
                     45
                       30  120 min  220 max  55                         1/2"  120 min
                                                                           1/2"  Ø 21
                                       Ø 50
                           1/2"  Ø 21                                        1/2"  Ø 21
                                                                                                                      SECURE SECTOR
                                  230 max  75                                       230 max  75

                               795209                                             748110




                                     1/2"                                               1/2"


                               826315                                             826315


                                                             TEMPOSTOP cross wall basin tap
        TEMPOMIX cross wall basin mixer                      1 control                           748110   £223.69
        TEMPOMIX cross wall                 795209   £480.53  2 controls                         748210   £300.77
        Back nut F½" with 3 screws (reinforcing clamp behind the wall)  826315  £10.78  Back-nut F½" with 3 screws (reinforcing clamp behind the wall)   826315  £10.78
        Alternative cross wall lengths (up to 400mm, min. 200 units)    We recommend installing a TMV (see page 143)
        available on request                                 Alternative cross wall lengths available on request
