Page 183 - Water_Controls_for_Healthcare

Stainless steel Surgical scrub up troughs /

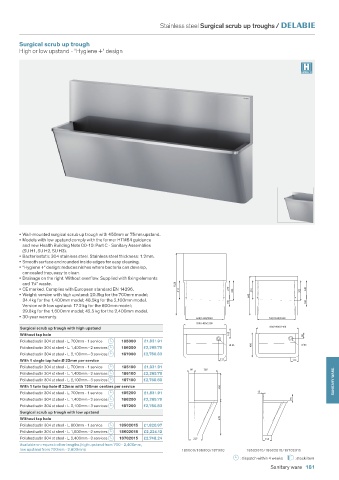

Surgical scrub up trough
High or low upstand - "Hygiene +" design

HBN00-10

• Wall-mounted surgical scrub up trough with 450mm or 75mm upstand.
• Models with low upstand comply with the former HTM64 guidance
and new Health Building Note 00 10: Part C - Sanitary Assemblies
(SU H1, SU H2, SU H3).
• Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm.
• Smooth surface and rounded inside edges for easy cleaning.
• "Hygiene +" design: reduces niches where bacteria can develop,
concealed trap, easy to clean.
• Drainage on the right. Without overflow. Supplied with fixing elements
and 1¼" waste. 1020
• CE marked. Complies with European standard EN 14296. 310 270 325 310 325 340
• Weight: version with high upstand: 20.3kg for the 700mm model; 645
34.4kg for the 1,400mm model; 48.5kg for the 2,100mm model. 160 160
Version with low upstand: 17.2 kg for the 800mm model;
29.8kg for the 1,600mm model; 42.5 kg for the 2,400mm model.
• 30-year warranty. 630/1330/2030 730/1530/2330
700/1400/2100 800/1600/2400
Surgical scrub up trough with high upstand 800/1600/2400
Without tap hole 165 90
Polished satin 304 st steel - L. 700mm - 1 service 185000 £1,831.91
Polished satin 304 st steel - L. 1,400mm - 2 services 186000 £2,265.70 Ø 45 400 Ø 45
Polished satin 304 st steel - L. 2,100mm - 3 services 187000 £2,760.83
With 1 single tap hole Ø 22mm per service 125 125
Polished satin 304 st steel - L. 700mm - 1 service 185100 £1,831.91
90 385
Polished satin 304 st steel - L. 1,400mm - 2 services 186100 £2,265.70
Polished satin 304 st steel - L. 2,100mm - 3 services 187100 £2,760.83 SANITARY WARE
With 1 twin tap hole Ø 22mm with 150mm centres per service 450
Polished satin 304 st steel - L. 700mm - 1 service 185200 £1,831.91 15
Polished satin 304 st steel - L. 1,400mm - 2 services 186200 £2,265.70 75
Polished satin 304 st steel - L. 2,100mm - 3 services 187200 £2,760.83
270
Surgical scrub up trough with low upstand
Without tap hole 570
Polished satin 304 st steel - L. 800mm - 1 service 18502015 £1,820.97 160
Polished satin 304 st steel - L. 1,600mm - 2 services 18602015 £2,224.12
Polished satin 304 st steel - L. 2,400mm - 3 services 18702015 £2,748.24 225 150
Available on request: other lengths (high upstand from 700 - 2,400mm,
low upstand from 700mm - 2,800mm) 185000/186000/187000 18502015/18602015/18702015
: dispatch within 4 weeks : stock item
Sanitary ware 181
